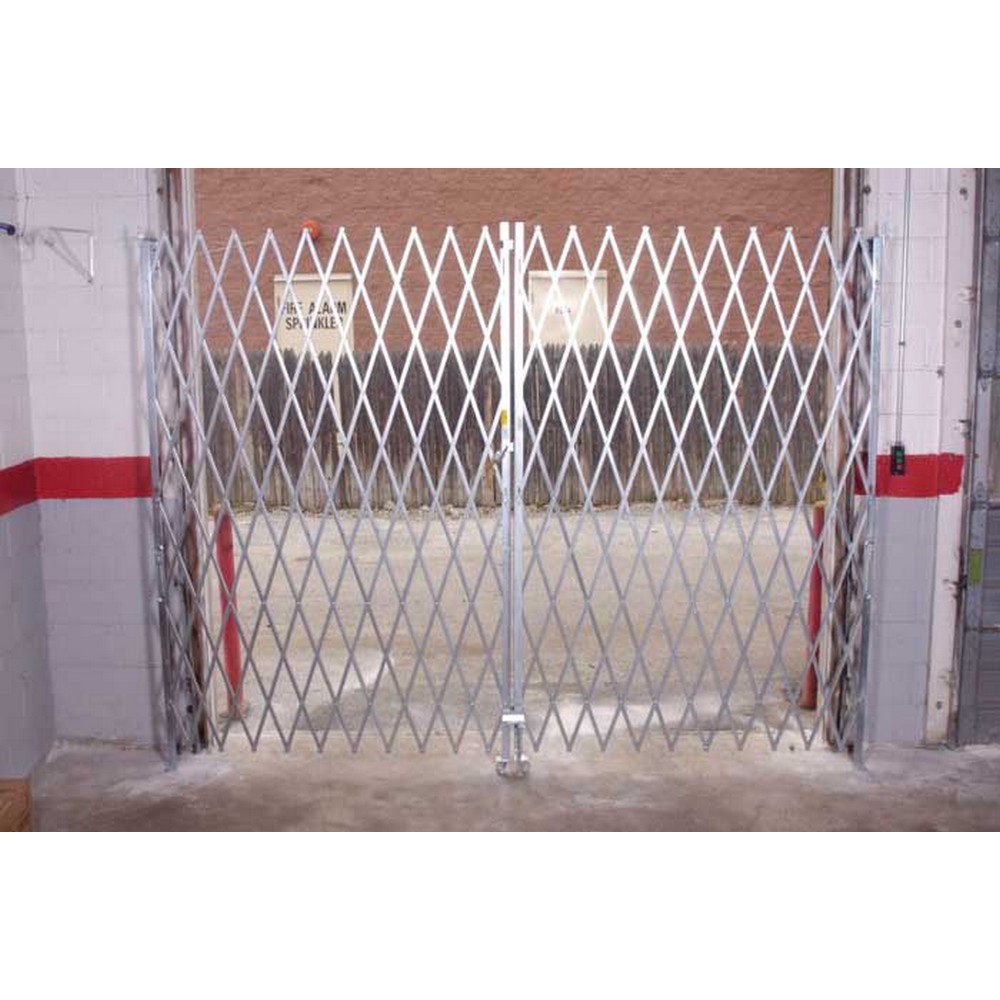

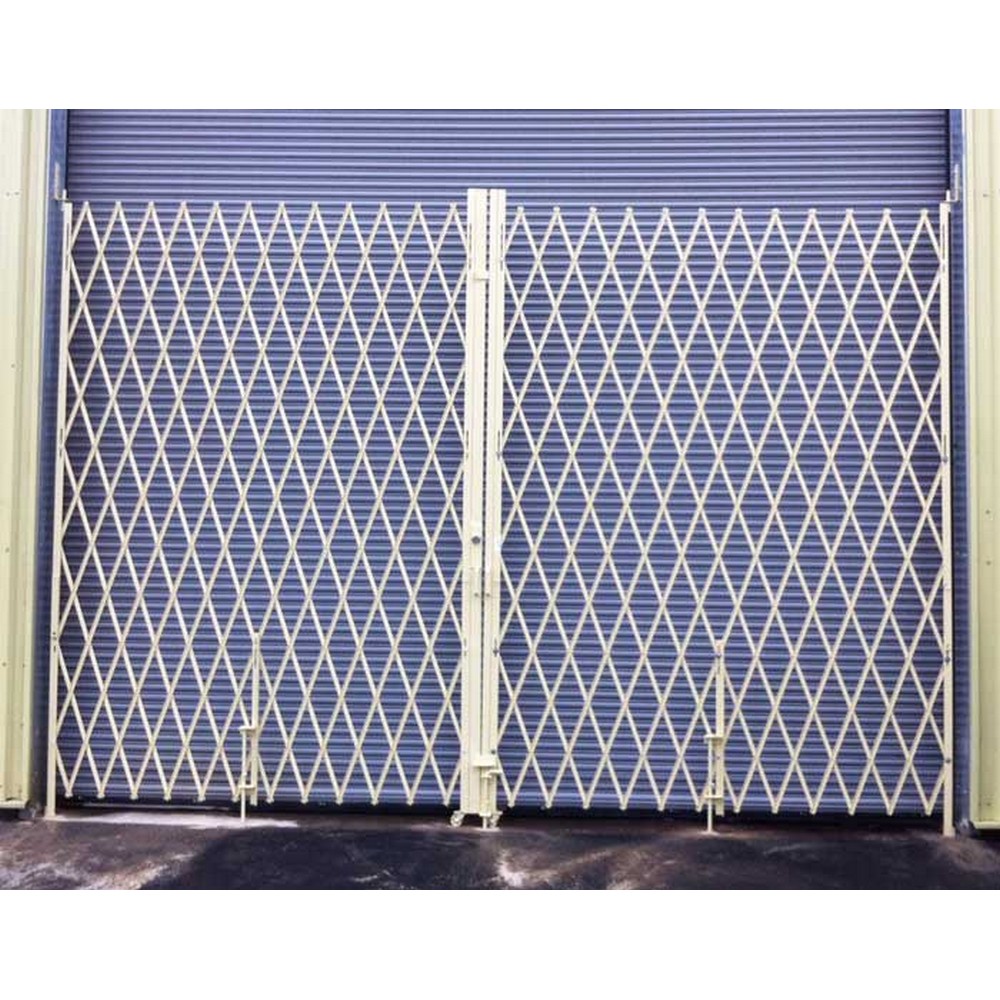

The Illinois Engineered Products PFG1885-ANG Retractable Folding Gate is designed to secure loading docks, doors, hallways, and entrances while preserving visibility, air flow, and access. This double-gate system folds neatly out of the way, allowing quick opening and closing and controlled access where needed. The assembly ships unassembled but includes mounting brackets, bearing washers, and solid steel casters to simplify installation. A padlock with hasp can secure the gate, and two lockable drop pins provide added security when engaged.
Constructed for durability, the gate features a heavy-duty 12-gauge vertical frame combined with 14-gauge steel webbing. The galvanized finish enhances rust resistance and eases cleaning, making it suitable for environments that demand durability and low maintenance. The lattice is formed from heavy-duty 14-gauge U-channel steel webbing riveted with aircraft-quality aluminum rivets, and the entire system is supported by solid steel casters for easy relocation when needed.
Designed to fit openings 16' to 18' wide and up to 8' 6" in height when collapsed, with an 8' expanded height and an 8' 6" collapsed height, this double-gate assembly loses 6" in height when extended. The weight and size—approximately 210 lbs per gate—reflect its robust construction. It is suitable for securing receiving doors, lift-up doors, hallways, and entryways where airflow and visibility must be maintained. When selecting this product, note that lag bolts and padlocks are not included, and installation should account for bracket mounting requirements and the need for proper anchoring in the chosen doorway or opening.
Features:
- Secure doors, hallways, and entryways while permitting light and air flow
- Sturdy 12-gauge steel vertical frame with 14-gauge steel webbing
- Galvanized finish for durability and easier cleaning
- Folded gates pivot to move completely out of the opening
- Height reduces by 6" when extended
- Includes mounting brackets, bearing washers, and solid steel casters; lag bolts and padlocks not included
- Width:
- 16' to 18'
- Height:
- 8' 6
- Depth:
- 15 stacked per side
- Fits Widths:
- 16' to 18'
- Expanded Height:
- 8'
- Collapsed Height:
- 8' 6
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles.
- Casters:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Double Gate
- Assembly:
- Ships unassembled
- Weight:
- 210.0 lbs. ea.
- Package Size:
- Each
