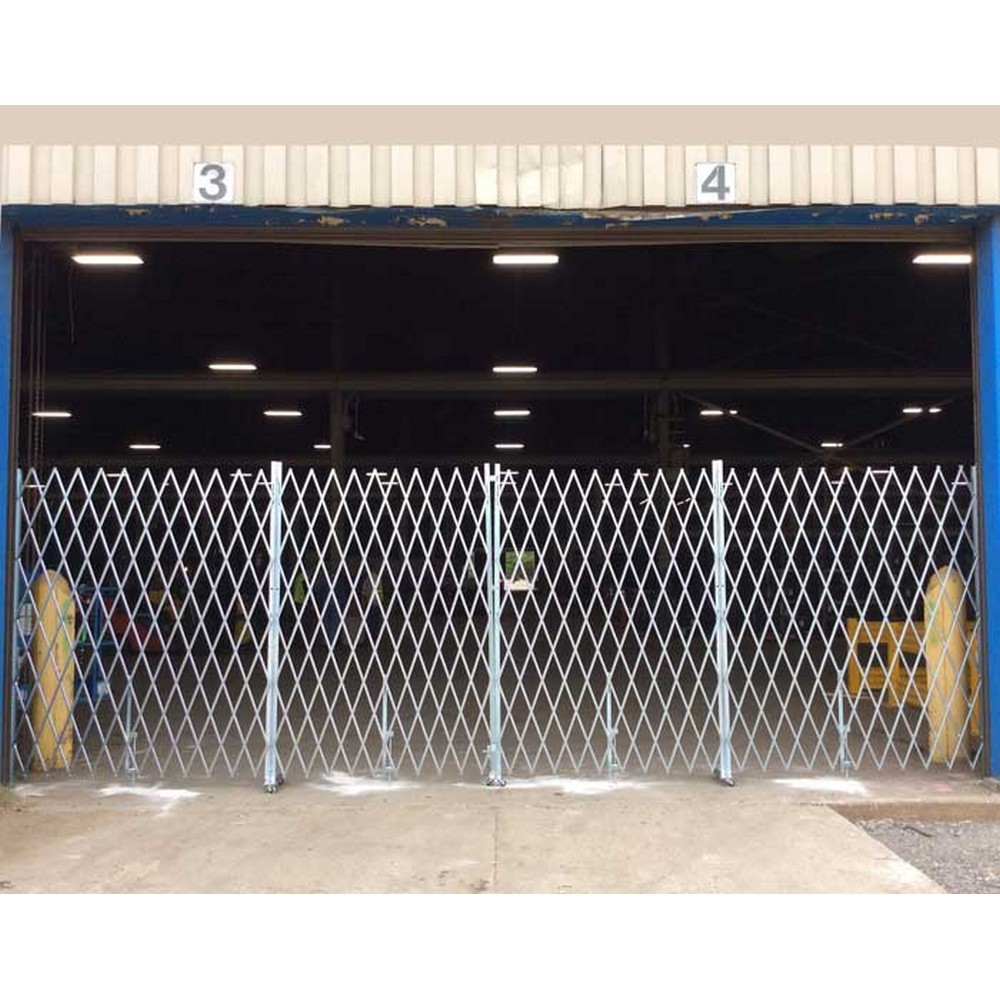

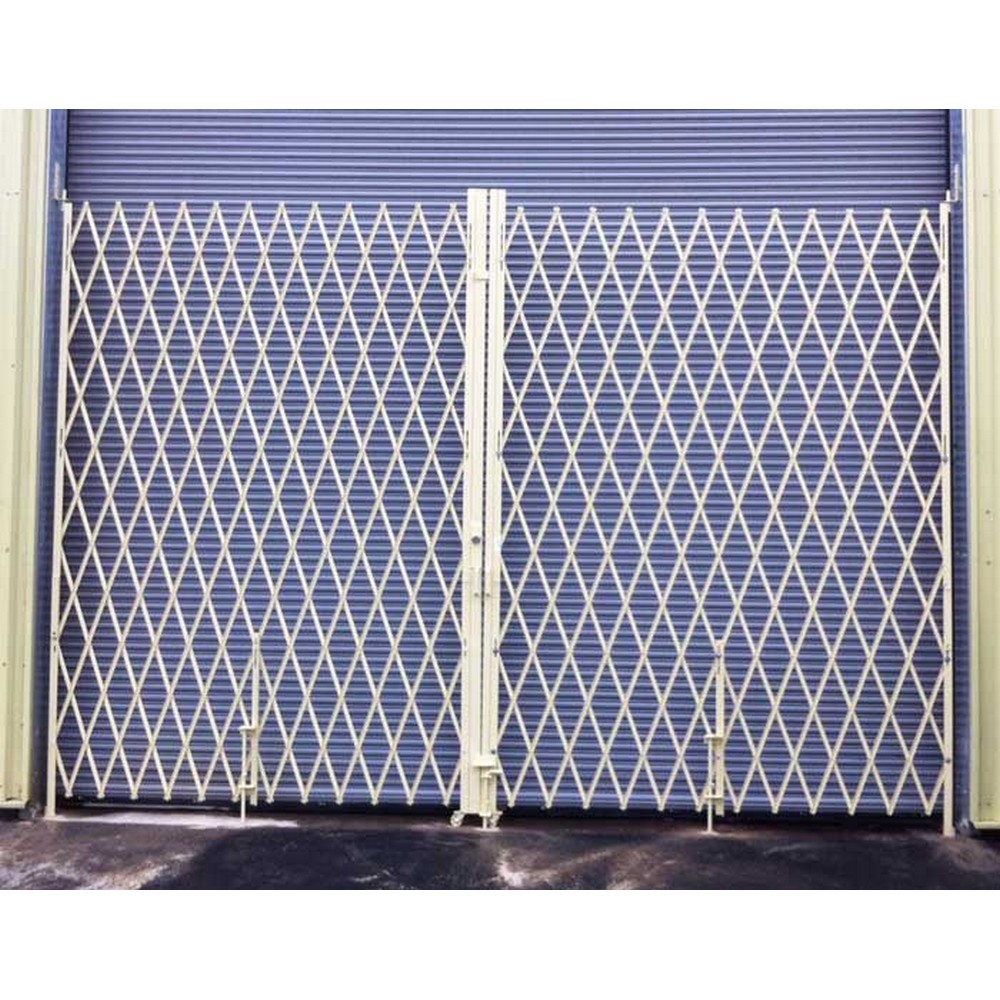

The IEPPFG2085-ANG is a double, retractable folding gate designed to secure wide access points such as loading docks, hallways, and entryways while preserving visibility, air flow, and ease of access. The gate system uses a heavy-duty 12-gauge steel vertical frame with 14-gauge steel webbing, all finished in galvanized coating to resist rust and simplify cleaning in industrial environments. When deployed, the lattice engages to form a robust barrier; when not needed, the folded gates pivot on their mounting to completely clear the opening, and the unit loses 6 inches of height in its extended position, providing adaptable coverage for varying doorway heights.
Construction and features emphasize durability and straightforward installation. The heavy-duty frame measures 1-1/2 x 1-1/2 inches and is paired with heavy-duty 14-gauge webbing riveted with aircraft-grade aluminum rivets, ensuring structural integrity under frequent use. The design includes a padlock hasp for securing the assembly and two lockable drop pins for added stability. Included mounting brackets, bearing washers, and solid steel casters support straightforward installation, though lag bolts and padlocks are not included. Custom powder coating is available on request, offering an additional corrosion-resistance option tailored to specific environments.
Practical applications include securing receiving doors, lift-up doors, hallways, and entryways where light and air circulation must be maintained. The unit ships unassembled, supports widths from 18' to 20', and weighs approximately 197 lbs per gate, with a collapsed height of 8'6" and an expanded height of 8'. When selecting this gate, consider the available mounting space, the need for a padlock to deter theft, and the requirement for compatible hardware and mounting brackets included with the package.
Features:
- Secure doors, hallways and entryways while allowing light and air
- Sturdy 12-gauge steel frame with 14-gauge webbing
- Galvanized finish for durability and easy cleaning
- Gates fold and pivot to fully clear the opening
- Height reduces by 6 inches when extended
- Includes mounting brackets, bearing washers and solid steel casters
- Width:
- 18' to 20'
- Height:
- 8' 6
- Depth:
- 15 stacked per side
- Fits Widths:
- 18' to 20'
- Expanded Height:
- 8'
- Collapsed Height:
- 8' 6
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles.
- Casters:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Double Gate
- Assembly:
- Ships unassembled
- Weight:
- 197.0 lbs. ea.
- Package Size:
- Each
