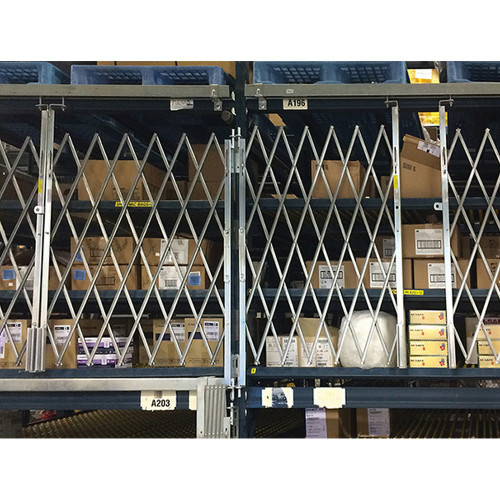

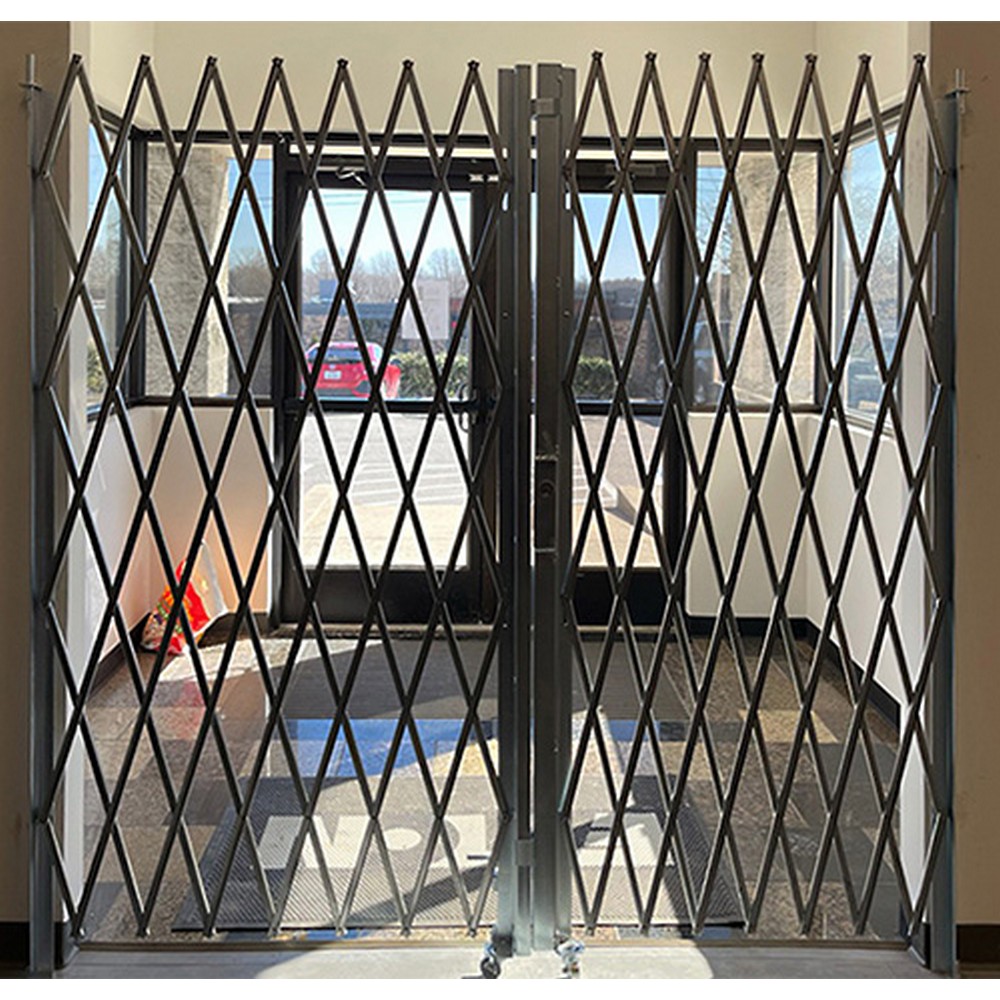

The IEPPFG885-ANG is a double folding gate designed to secure wide openings such as loading docks, service doors, hallways, and entryways while preserving visibility and ventilation. When closed, the 6' to 8' wide gate creates a physical barrier that helps control access and deter theft, with the added option to lock with a padlock for enhanced security. The gate folds away on its mounting, allowing the opening to be fully unobstructed when access is required, and it can be retracted to a compact stacked height to minimize interference with foot traffic and equipment movement.
Constructed for durability, the gate features a sturdy 12-gauge steel vertical frame coupled with 14-gauge steel webbing. The galvanized finish provides corrosion resistance and ease of cleaning, contributing to longer service life in industrial environments. The lattice is formed from heavy-duty 14-gauge steel U-channel webbing riveted to aircraft-quality aluminum rivets and is designed to withstand daily handling and use at loading areas and corridors. Each assembly ships unassembled with mounting brackets, bearing washers, and solid steel casters included, facilitating on-site installation. Note that lag bolts and padlocks are not included, so users provide their own securing hardware compatible with their mounting surfaces.
This double gate is specified for openings between 6' and 8' wide, with an expanded height of 8' and a collapsed height of 8' 6" per side. The design intentionally loses 6" in height when extended, a factor to consider for clearance constraints and integration with surrounding structures. The unit weighs approximately 120 lbs per side and is available in a galvanic finish, with custom powder coating options upon inquiry to match facility aesthetics or additional corrosion resistance requirements. Suitable for securing receiving doors, lift-up doors, hallways, and entryways where airflow and light transmission are still desired, this gate provides a controlled access solution without fully obstructing the space.
Features:
- Secure doors and entryways while allowing light and air circulation
- Heavy-duty 12-gauge vertical frame with 14-gauge steel webbing
- Galvanized finish for durability and rust resistance
- Gates pivot to move completely out of the opening
- 6" height reduction when extended
- Includes mounting brackets, bearing washers, and solid steel casters (lag bolts and padlocks not included)
- Ships unassembled; customization options available
- Width:
- 6' to 8'
- Height:
- 8' 6
- Depth:
- 11 stacked per side
- Fits Widths:
- 6' to 8'
- Expanded Height:
- 8'
- Collapsed Height:
- 8' 6
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles.
- Casters:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Double Gate
- Assembly:
- Ships unassembled
- Weight:
- 120.0 lbs. ea.
- Package Size:
- Each
