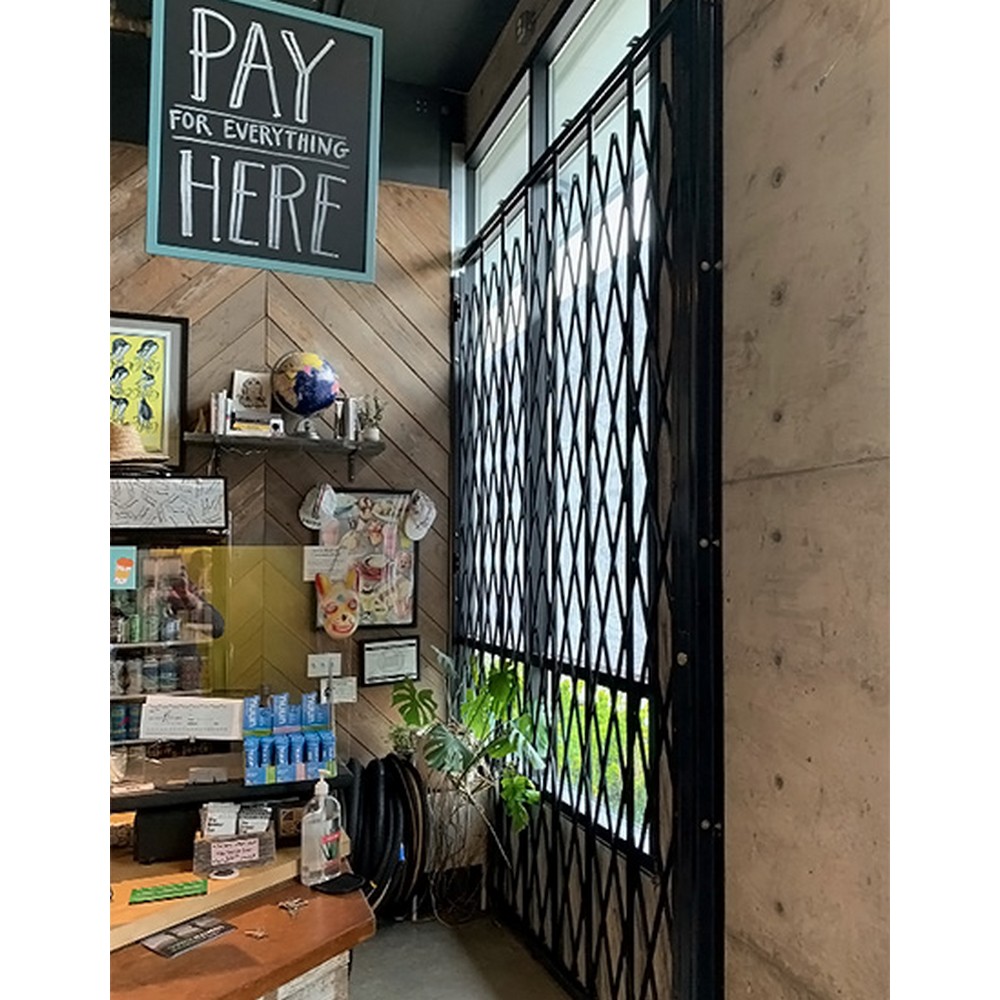

The Illinois Engineered Products HYDS870 Storefront Security Gate is a full-width, continuous barrier designed to secure storefronts, warehouse entries, and restricted areas. This single-gate system spans 8 feet in width and rises 7 feet high, providing a robust visual and physical deterrent while allowing quick setup and removal. The gate features a combination of vertical bars that ride within tracks and a traditional scissor lattice, delivering a secure, reinforced enclosure that can be expanded or retracted as needed for access control and space flexibility.
Constructed from galvanized steel with a 1-1/4" x 5/8" 14-gauge C-channel frame and 3/8" x 3/4" 14-gauge U-channel lattice secured with zinc-plated rivets, the HYDS870 emphasizes durability in demanding environments. The system includes a top-focused folding frame and a bottom track, with a standard padlock hasp and an optional integrated cylinder lock for enhanced security. Finish options include galvanized steel with powder coat colors available on request to suit site aesthetics while maintaining corrosion resistance. The assembly ships unassembled, and the unit weighs approximately 140 pounds, reflecting its heavy-duty build and stable, secure installation characteristics.
Ideal for quickly securing storefronts or interior/ exterior perimeters without permanent installation, this gate is designed for indoor and outdoor use, with resistance to heat, rain, snow, and harsh industrial cleaners. It can be paired with other sizes and configurations, including top-bottom track variations, to tailor coverage to specific portal widths and loss-prevention needs. Practical considerations include choosing the appropriate locking option and planning for mounting surface and track compatibility to ensure smooth operation during expansion and retraction.
Features:
- A combination of vertical bars and scissor gates provide full coverage and enhanced security
- Suitable for indoor or outdoor use under varied weather and chemical conditions
- Top & bottom track styles available, with other size options
- Frame is 1-1/4" x 5/8" 14 gauge C-channel steel with rubber grommet feet
- Lattice is 3/8" x 3/4" 14 gauge U-channel steel with rivets
- Locking options include standard padlock hasp; integrated cylinder lock optional
- Finish: galvanized steel; powder coat colors available on request
- Width:
- 8'
- Height:
- 7'
- Max Width:
- 8'
- Folded Lattice Height:
- 7'
- Top Frame Style:
- Folding
- Expanded Lattice Height:
- 6.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 140.0 lbs. ea.
- Package Size:
- Each
