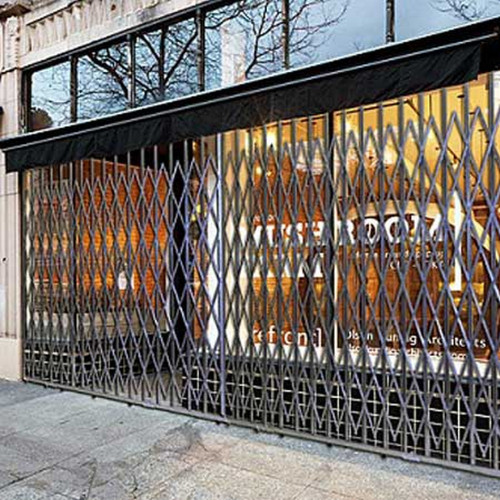

The Illinois Engineered Products HYDS7115 storefront security gate is designed to secure storefronts, warehouse entrances, or internal separation areas with a full-width, continuous gate that measures 7 feet wide by 11.5 feet high. It combines a fixed top track with a folding bottom lattice, enabling quick setup and smooth operation as the gate expands or retracts. The construction uses a combination of vertical bars riding in tracks and traditional scissor lattice, providing robust coverage for loss prevention in busy facilities.
Key components include a 1-1/4" x 5/8" 14-gauge C-channel steel frame with rubber-grommet feet, and a 3/8" x 3/4" 14-gauge U-channel steel lattice with rivets, all finished in galvanized steel with optional powder coat colors available on request. A padlock hasp is included as a standard locking option, with an integrated cylinder lock available as an upgrade, supporting an added layer of security for access control. The unit ships unassembled and weighs about 201 pounds per gate, reflecting its sturdy, industrial-grade construction suitable for demanding environments.
Typical use scenarios include sectioning off store fronts or warehouse aisles, creating controlled entryways, and protecting inventory without sacrificing visibility. The HYDS7115 is designed to withstand indoor and outdoor conditions, including exposure to heat, rain, snow, and harsh industrial cleaners. Its top and bottom track design options provide flexibility in installation, and additional sizes and configurations are offered for tailored security solutions. Consider ensuring adequate mounting space and confirming compatibility with your facility’s mounting surfaces prior to installation.
Features:
- Combination of vertical bars and scissor gates for total coverage and enhanced security
- Suitable for indoor and outdoor use under extreme conditions
- Top fixed frame with folding bottom lattice for versatile security coverage
- Galvanized steel construction with optional powder coat color finish
- Padlock hasp standard; integrated cylinder lock option available
- Ships unassembled for easier handling and installation
- 7' wide x 11.5' high opening with 1-1/4" x 5/8" 14 gauge C-channel steel frame
- Width:
- 7'
- Height:
- 11.5'
- Max Width:
- 7'
- Folded Lattice Height:
- 11.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 11'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 201.0 lbs. ea.
- Package Size:
- Each
