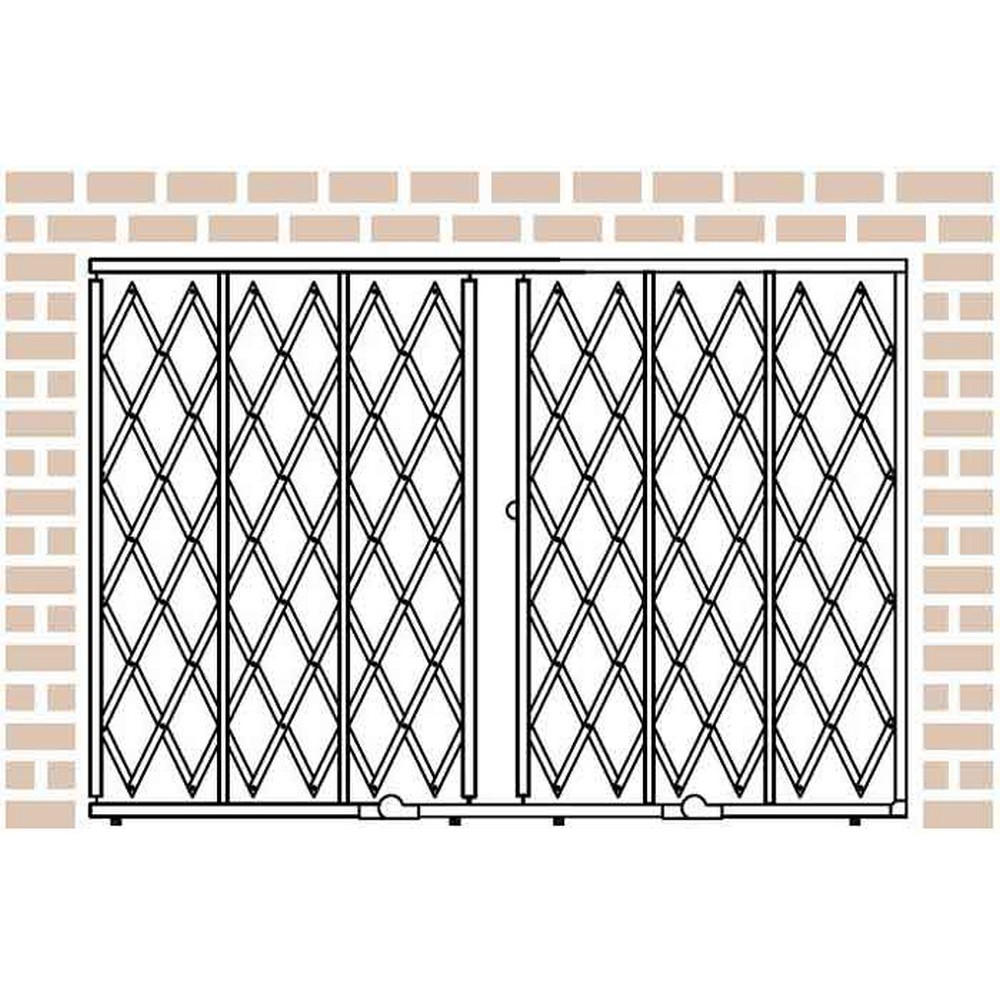

The Illinois Engineered Products HYDP8115 storefront security gate is a full-width barrier designed to section off areas within warehouses or storefronts. It features a combination of vertical bars riding in tracks and a traditional scissor lattice, delivering continuous coverage that supports loss prevention while allowing quick expansion or retraction as needed. This gate is supplied with a fixed top track and a folding bottom arrangement for versatile deployment across access points up to 8 feet wide and 11.5 feet high.
Constructed from 14-gauge steel with galvanized finish and reinforced framing, the system uses 1-1/4" x 5/8" 14-gauge C-channel steel for the frame and 3/8" x 3/4" 14-gauge U-channel steel lattice, secured with zinc-plated rivets. It ships unassembled, weighing 230 lb per unit, and includes a padlock hasp as a standard locking option with an integrated cylinder lock available as an upgrade. The design accommodates various mounting configurations and track options (top and bottom) and can be finished in powder coat colors upon request to suit site aesthetics or corrosion considerations.
Ideal for temporary or semi-permanent partitioning in indoor environments subject to routine exposure to heat, rain, snow, or harsh industrial cleaners, this dual-gate system supports secure lockdown of defined zones while maintaining accessibility. It is offered as a paired storefront gate setup, with a one-year manufacturer warranty and non-returnable packaging policy. Practical use considerations include assembly requirements, outdoor suitability, and compatibility with existing top/bottom track styles and alternative widths and lattice configurations depending on site needs.
Features:
- Combination of vertical bars and scissor gates for enhanced security
- Durable galvanized steel construction withstands indoor/outdoor use and harsh environments
- Fixed top frame with folding bottom for adaptable installation
- Standard padlock hasp; integrated cylinder lock option available
- Ships unassembled for on-site assembly
- Top & bottom track styles and other sizes available on request
- Width:
- 8'
- Height:
- 11.5'
- Max Width:
- 8'
- Folded Lattice Height:
- 11.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 11'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 230.0 lbs. ea.
- Package Size:
- Each
