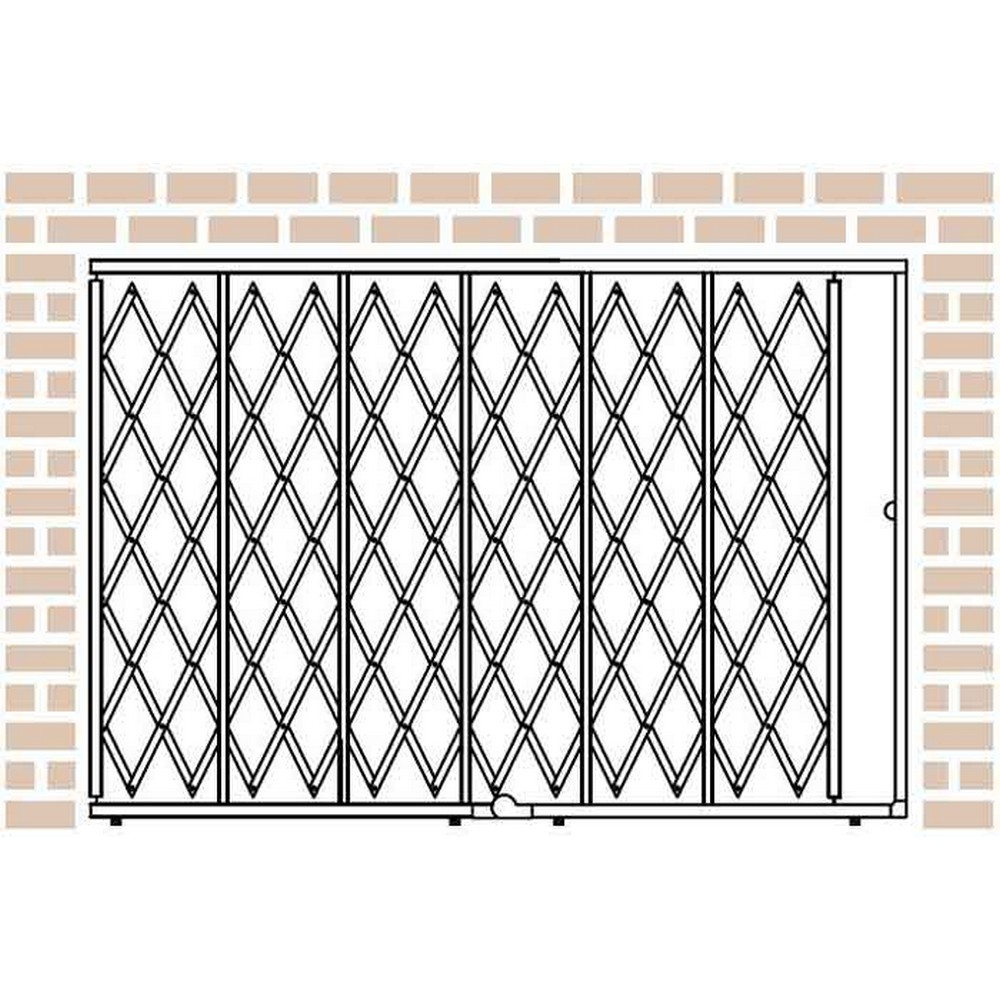

The Illinois Engineered Products HYDS6115 Storefront Security Gate is a full-width barrier designed to secure storefronts, warehouses, and restricted areas. Measuring 6 feet wide by 11.5 feet high, this single-gate system provides continuous coverage with a combination of vertical bars riding in tracks and a traditional scissor lattice for enhanced loss prevention. The unit ships unassembled and installs with top and bottom track options, offering a flexible configuration for expanding or retracting access as needed.
Constructed from galvanized steel components, the HYDS6115 features a 1-1/4" x 5/8" 14 gauge C-channel frame and 3/8" x 3/4" 14 gauge U-channel lattice, reinforced with zinc-plated rivets. The system is designed to withstand varied environments, including indoor conditions and exposure to heat, rain, snow, or certain industrial cleaners. A padlock hasp is included as a standard locking option, with an integrated cylinder lock available as an optional upgrade. Finish options include galvanized steel with powder coat colors available on request to suit site aesthetics and corrosion resistance needs.
This storefront gate is suitable for creating secure perimeters around entrances, back-of-house corridors, or display areas where access control is required. It supports simple, rapid setup and offers a range of sizing and track configurations to fit different doorways or openings. When planning installation, consider the need for matching top and bottom track styles, and note that this product is non-returnable per the manufacturer.
Why verified dimensions matter: the precise width, height, and panel construction determine compatibility with your opening and the effectiveness of the loss-prevention solution. The HYDS6115’s fixed top frame and folding bottom design balance rigidity with flexibility for access, and its 173 lb. weight reflects a substantial, semi-permanent barrier suitable for commercial use.
Features:
- A combination of vertical bars and scissor gates for total coverage and enhanced security
- All-weather construction handles heat, rain, snow, and harsh chemicals
- Top frame is Fixed; bottom track supports folding operation (Top & bottom track styles available)
- Galvanized steel with rubber grommet feet for stability
- Padlock hasp standard; integrated cylinder lock option available
- 1-year manufacturer warranty
- Ships unassembled for custom fitting
- Width:
- 6'
- Height:
- 11.5'
- Max Width:
- 6'
- Folded Lattice Height:
- 11.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 11'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 173.0 lbs. ea.
- Package Size:
- Each
