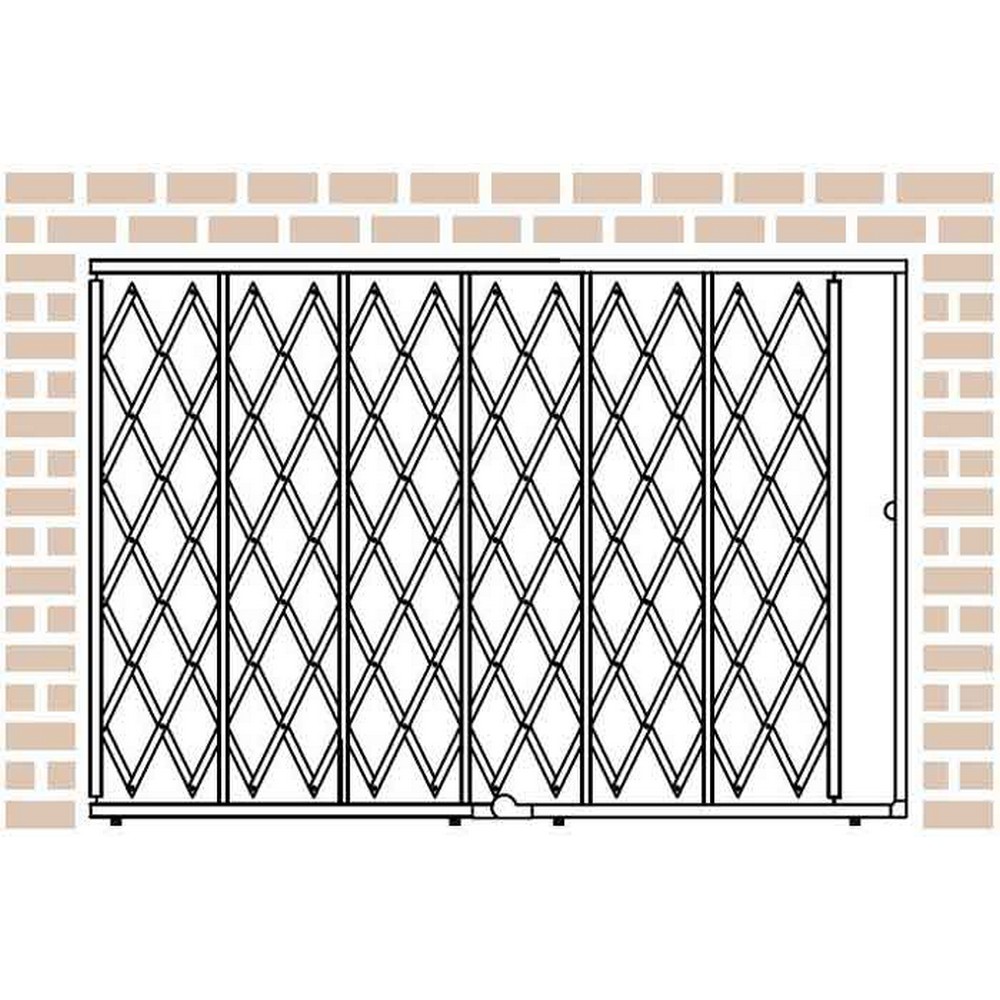

The Illinois Engineered Products HYDS5115 storefront security gate is a full-width barrier designed to secure storefronts or segregate areas within a facility. Its continuous gate configuration provides a single, seamless span that can be extended or retracted as needed, allowing quick setup and flexible operation for protecting people, inventory, and access points.
Constructed with a combination of vertical bars riding in tracks and a traditional scissor lattice, the gate integrates a robust frame and lattice system. The 1-1/4" x 5/8" 14-gauge C-channel steel frame with rubber grommet feet supports a 3/8" x 3/4" 14-gauge U-channel steel lattice, secured with 1/4" x 1-1/2" zinc-plated steel rivets. The unit ships non-returnable and includes a padlock hasp as standard, with an optional integrated cylinder lock. The finish is galvanized steel, with powder coat color options available on request. The assembly ships unassembled for easier handling and installation, and the overall weight is 144 pounds per gate, reflecting its sturdy industrial-grade construction.
Ideal for creating controlled access in warehouses, showrooms, or storefronts, this gate is designed to withstand indoor and outdoor environments, including exposure to heat, rain, snow, and harsh industrial cleaners. The HYDS5115 is offered in width 5' and height 11.5', with top and bottom track configurations available and compatibility with other sizes and track styles. When planning installation, consider the need for secure mounting surfaces and the appropriate locking option to match security requirements. The product is backed by a 1-year manufacturer warranty, underscoring its role as a dependable, semi-permanent access-control solution.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Suitable for indoor and outdoor use under varied weather and chemical conditions
- Fixed top and folding bottom configurations with compatible sizes
- Padlock hasp standard; integrated cylinder lock option available
- Durable galvanised steel construction with corrosion resistance
- Ships unassembled with 1-year manufacturer warranty
- Preventive maintenance and security enhancements with top/bottom track options
- Width:
- 5'
- Height:
- 11.5'
- Max Width:
- 5'
- Folded Lattice Height:
- 11.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 11'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 144.0 lbs. ea.
- Package Size:
- Each
