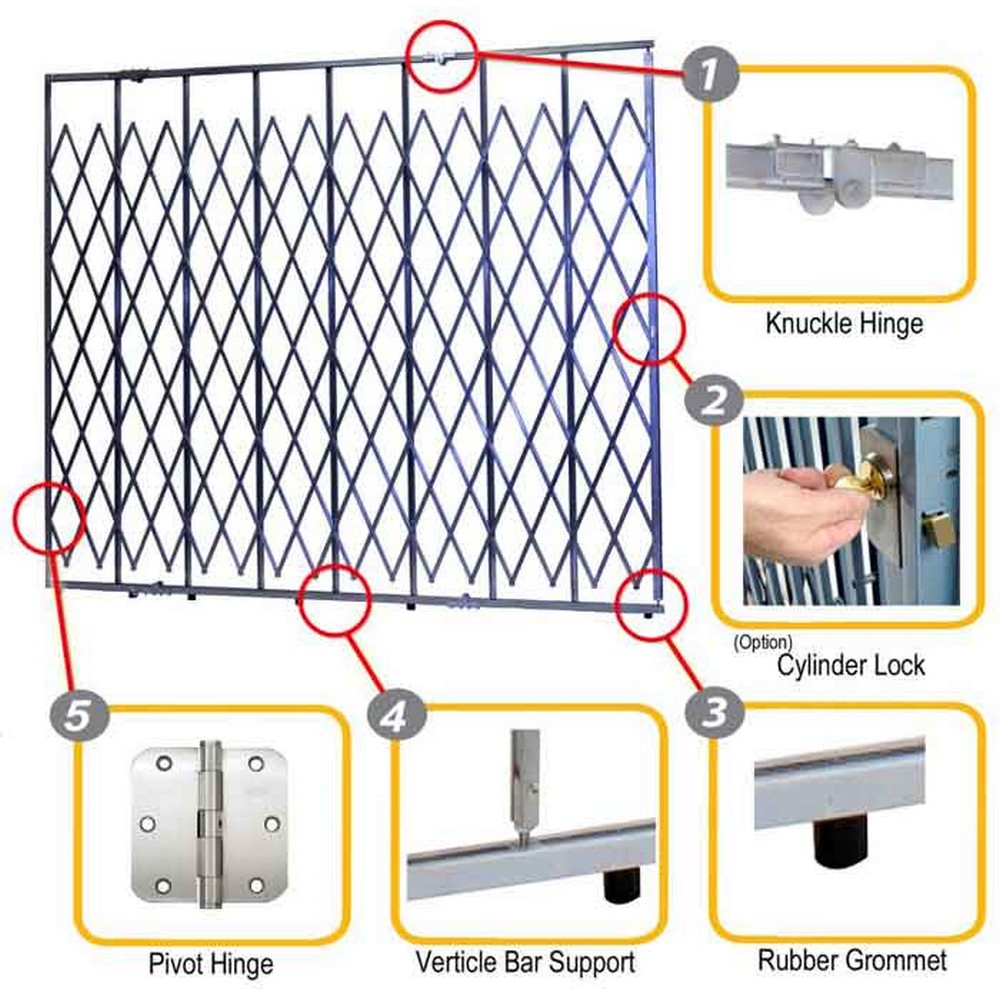

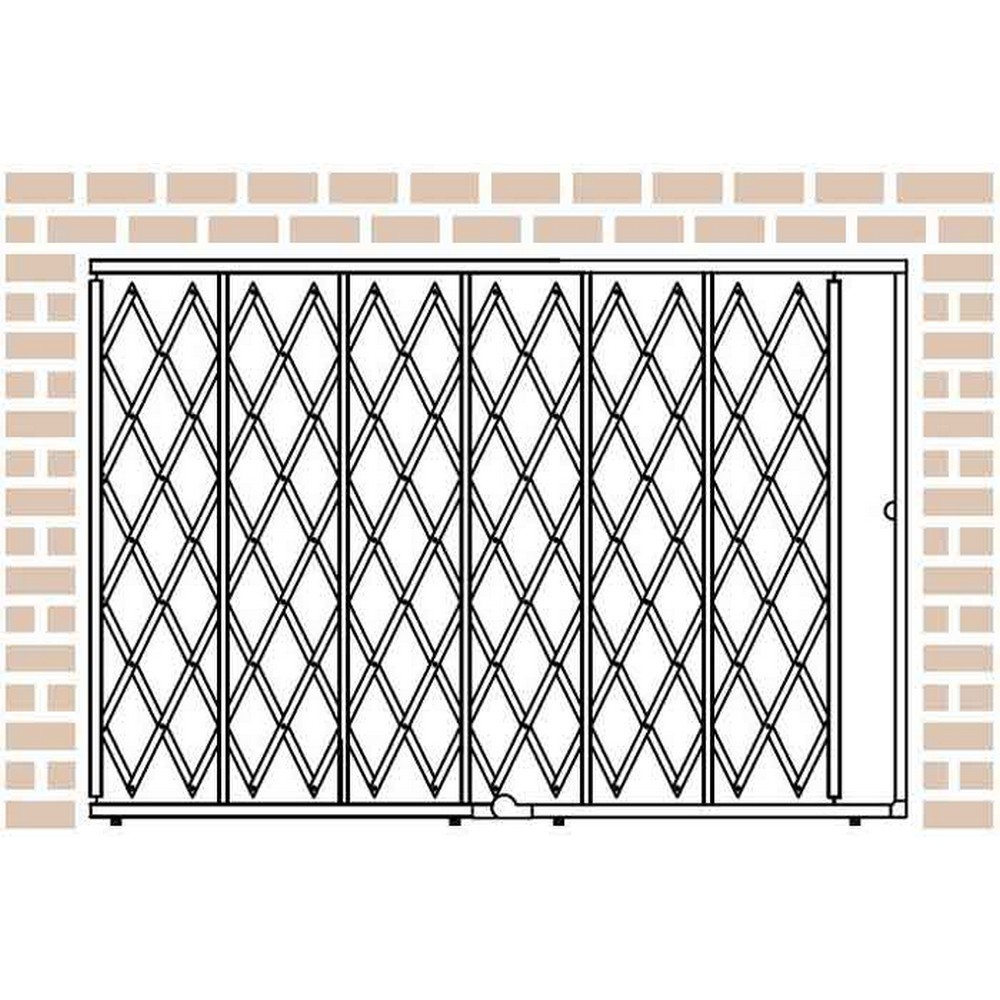

The HYDS7105 storefront security gate from Illinois Engineered Products is a full-width, single-gate system designed to secure storefronts, stockrooms, and open-entry areas. With a 7' width and 10.5' height, it provides continuous coverage when expanded, and its fixed top with a folding bottom configuration supports quick setup and easy retraction as site needs change. This gate combines vertical bars that ride in tracks with a traditional scissor lattice to deter unauthorized access while allowing visibility and airflow through the opening.
Constructed from galvanized steel with a 1-1/4" x 5/8" 14 gauge C-channel frame and 3/8" x 3/4" 14 gauge U-channel lattice, the assembly is designed to withstand indoor and outdoor conditions, including exposure to heat, rain, snow, and routine chemical cleaners found in industrial environments. A standard padlock hasp offers basic locking security, while an integrated cylinder lock option is available. The product ships unassembled with powder coat color options available on request, and it carries a 1-year manufacturer warranty. Weighing 184 lb per unit, this gate is designed for heavy-duty, semi-permanent installations where robust loss prevention is required.
Ideal use cases include sectioning off warehouse corridors, protecting storefront entrances, or shielding inventory in open-floor layouts. It is compatible with top and bottom track styles, and multiple sizes are available to fit different openings. Dimensions noted reflect the full-open width and height, with precise frame and lattice materials specified to help assess installation requirements, mounting hardware needs, and maintenance considerations. Availability of finishes and locking configurations should be confirmed during purchase to ensure the gate integrates with existing site hardware and security practices.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Indoor/outdoor durability against heat, rain, snow, and chemicals
- Fixed top frame with folding bottom lattice for flexible installation
- Galvanized steel construction with robust fasteners
- Padlock hasp included; integrated cylinder lock optional
- Powder coat color options available on request
- Ships unassembled for transportation and on-site assembly
- Width:
- 7'
- Height:
- 10.5'
- Max Width:
- 7'
- Folded Lattice Height:
- 10.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 10'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 184.0 lbs. ea.
- Package Size:
- Each
