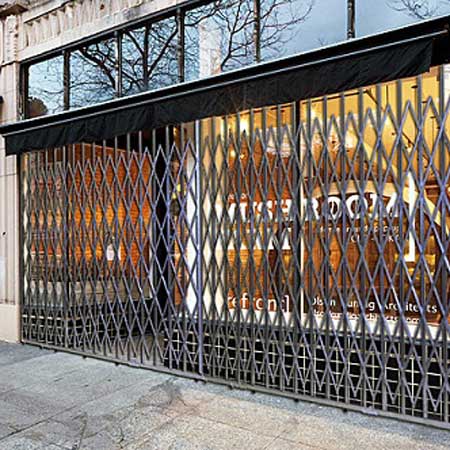

The Illinois Engineered Products HYDP16105 Storefront Security Gate is a full-width, continuous gate designed to secure storefronts, warehouse entries, and other high-traffic areas. When deployed, it creates a stable perimeter barrier that can be expanded or retracted as needed, helping to segment spaces quickly with minimal setup. This model features a combination of vertical bars riding in tracks and a traditional scissor lattice, delivering a robust visual and physical deterrent while allowing for smooth operation during use.
Construction details emphasize a durable, all-weather build: the frame is 1-1/4" x 5/8" 14-gauge C-channel steel with rubber grommet feet, and the lattice uses 14-gauge U-channel steel with zinc-plated rivets. Finished in galvanized steel with optional powder coat colors, it is designed to withstand indoor or outdoor conditions, including exposure to heat, rain, snow, and common industrial cleaners. The gate includes a locking option with a padlock hasp as standard, with an integrated cylinder lock available as an upgrade. Top and bottom track styles are available, and the system ships unassembled for flexible on-site installation.
This particular configuration supports a 16' width and 10.5' height, with a fixed top track and folding bottom for convenient access as needs change. Weighing 420 lbs per unit, this is a substantial barrier intended for continuous use in demanding environments. The product is sold as a pair gate and is non-returnable, reflecting its targeted, industrial-grade application and the expectation of a precise fit within established bays or storefront openings, with care taken to ensure proper mounting and alignment during installation.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Resilient in all conditions: indoor/outdoor, heat, rain, snow, and chemicals

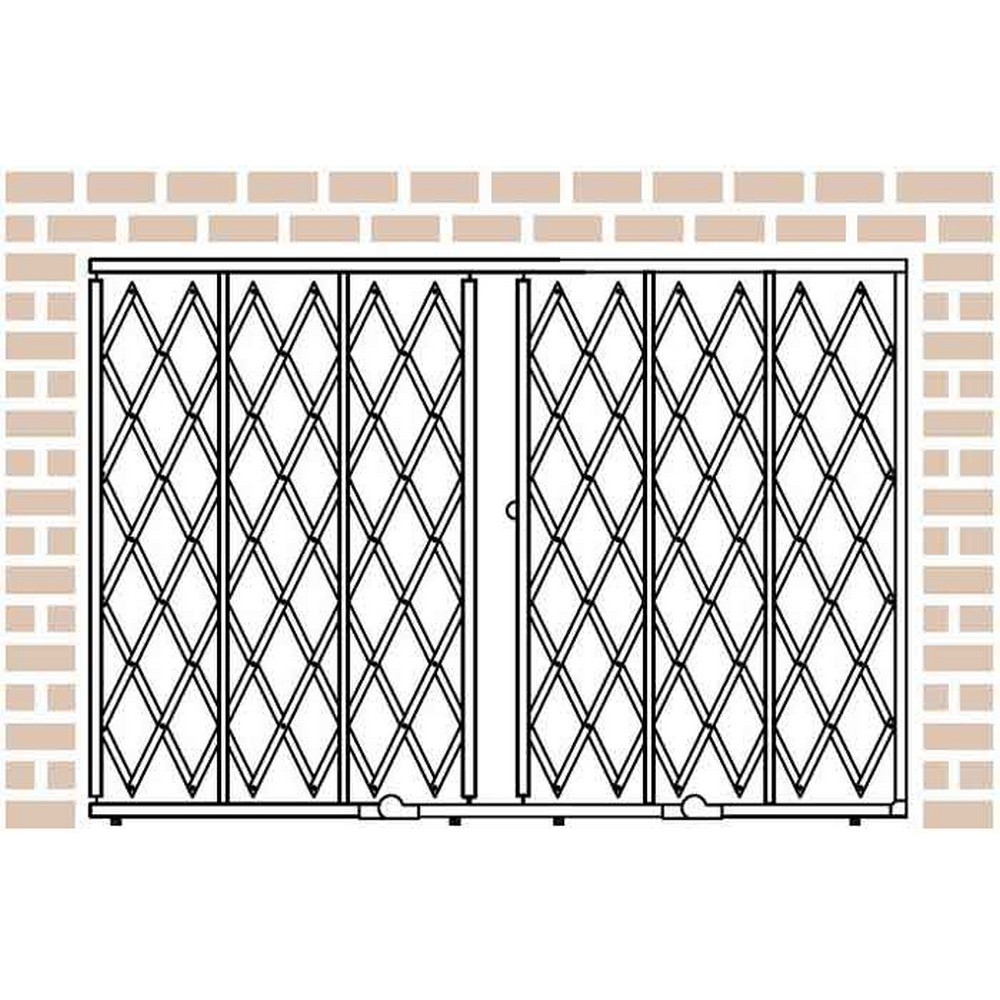

- Fixed top frame with folding bottom gate configuration
- Sturdy construction: 1-1/4" x 5/8" 14 gauge C-channel steel frame
- 3/8" x 3/4" 14 gauge lattice with zinc-plated rivets
- Padlock hasp standard; integrated cylinder lock optional
- Width:
- 16'
- Height:
- 10.5'
- Max Width:
- 16'
- Folded Lattice Height:
- 10.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 10'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 420.0 lbs. ea.
- Package Size:
- Each
