The Illinois Engineered Products HYDP14105 storefront security gate provides a full-width, continuous barrier designed to secure storefronts, warehouse access, or sensitive areas within a facility. This unit spans 14 feet wide and stands 10.5 feet high, offering a combination of vertical bars riding in tracks and a traditional scissor lattice to maximize coverage and deter unauthorized entry. The system ships unassembled and is designed for quick setup and smooth operation as it expands or retracts, enabling rapid reconfiguration of space as needs change.

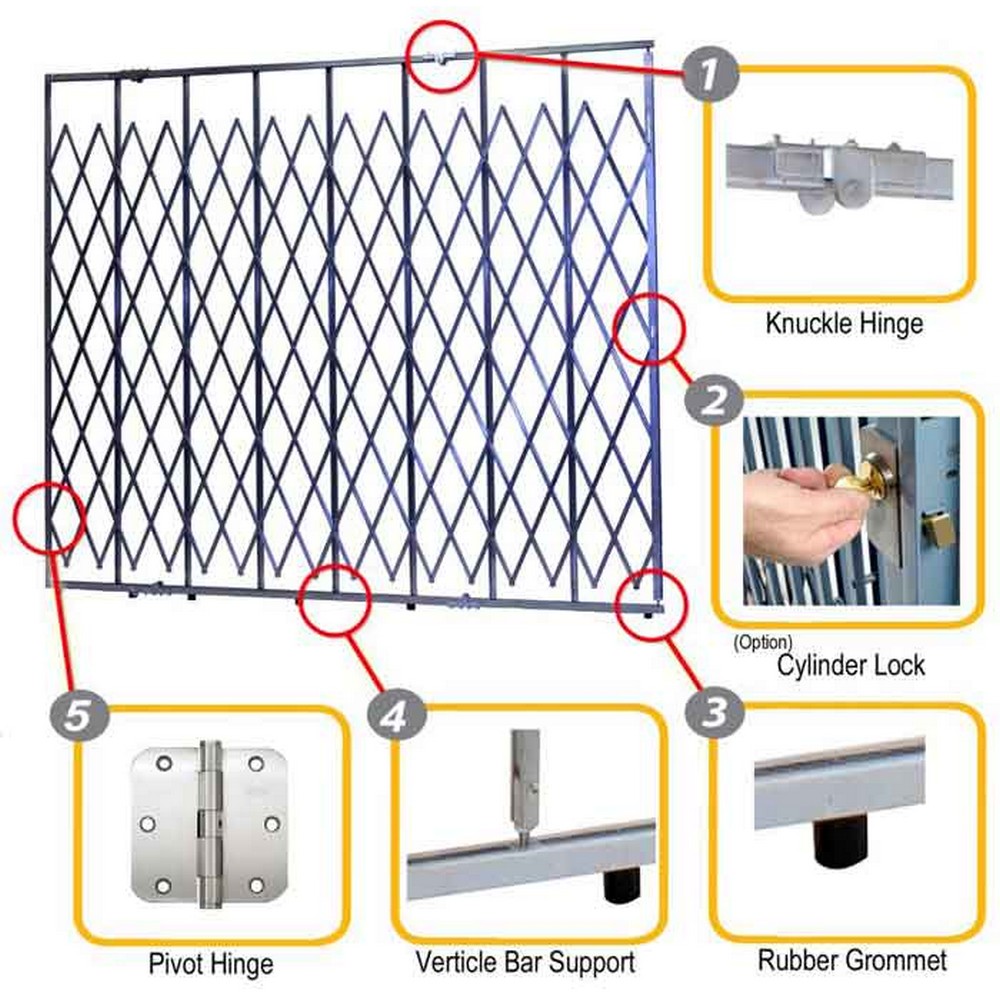

Construction details emphasize durability and compatibility with demanding environments. The gate uses a 1-1/4" x 5/8" 14-gauge C-channel steel frame with rubber grommet feet for stability, and the lattice is 14-gauge 14-channel steel with rivets, finished in galvanized steel. A padlock hasp is included for standard locking, with an integrated cylinder lock offered as an option. Top and bottom tracks are built from 11-gauge box channel steel (1-7/8" x 1-3/8"), and the entire assembly weighs about 368 lb per gate, indicating substantial robustness for long-term installation in industrial settings. Powder coat color options are available on request to suit site aesthetics, while the base galvanized finish provides corrosion resistance in varied conditions.
This gate is suitable for indoor or outdoor use and designed to withstand exposure to heat, rain, snow, and many industrial cleaners or chemicals. It is marketed as a non-returnable purchase and is offered as a storefront security solution in pair-gate configurations, with top-and-bottom track configurations available in other sizes and styles to fit different doorway widths and heights. When planning installation, consider the need for proper anchoring and alignment of the track system, plus the availability of optional locks to meet security requirements.
Features:
- Combination of vertical bars and scissor gates for total coverage and security
- Durable galvanized steel construction withstands indoor/outdoor conditions
- Fixed top frame with folding bottom track for flexible installation
- Padlock hasp standard; integrated cylinder lock option available
- Ships unassembled; 1-year manufacturer warranty
- Galvanized finish with powder coat color options on request
- Top & bottom track styles available and other sizes upon request
- Width:
- 14'
- Height:
- 10.5'
- Max Width:
- 14'
- Folded Lattice Height:
- 10.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 10'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 368.0 lbs. ea.
- Package Size:
- Each
