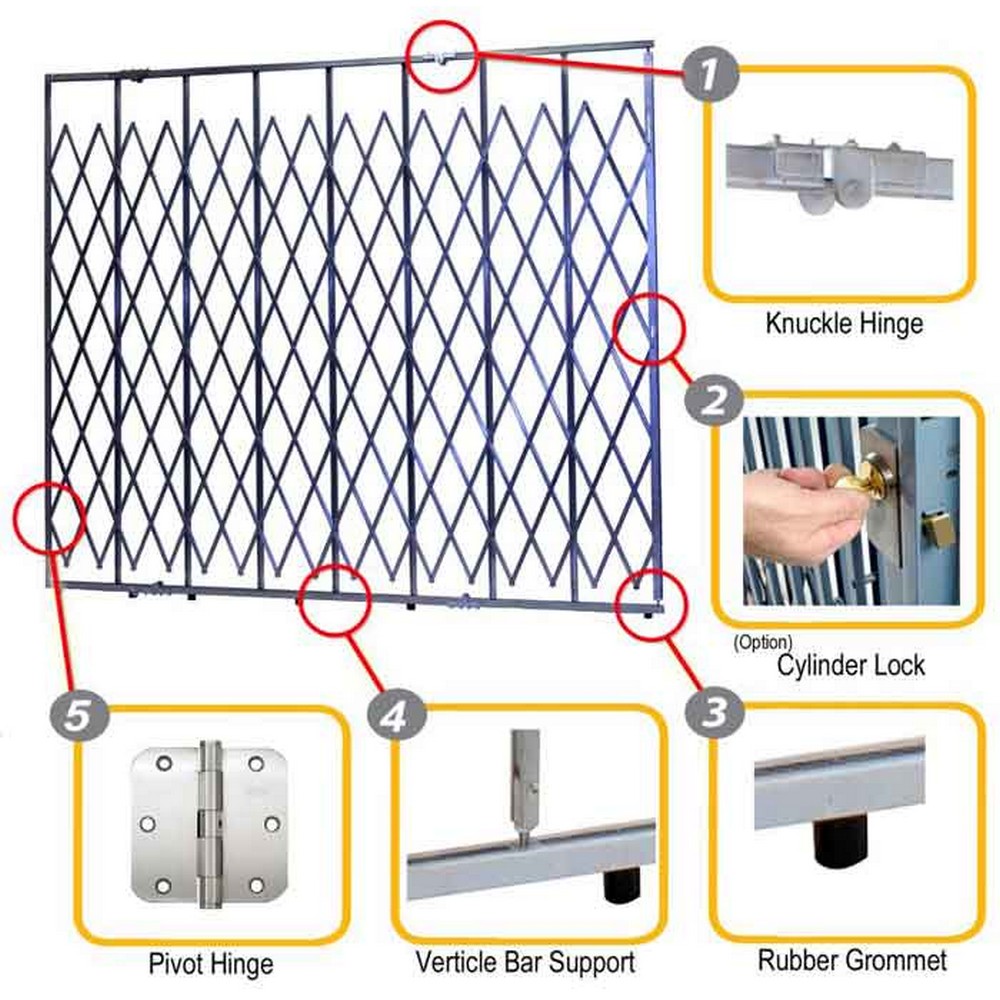

The Illinois Engineered Products HYDP11115 storefront security gate provides a full-width, continuous barrier designed to secure storefronts, warehouse entries, or restricted areas. This pair gate system combines vertical bars that ride in tracks with a traditional scissor lattice to achieve wide coverage and enhanced security while maintaining smooth operation as the gate expands or retracts. The unit is specified with a fixed top track and a folding bottom configuration, allowing fast setup and versatile deployment in a variety of spaces.
Features:
- Combination of vertical bars and scissor gates for total coverage and security
- Durable galvanized steel construction for indoor/outdoor use
- Fixed top track with folding bottom track option
- Standard padlock hasp with optional integrated cylinder lock
- 11' W x 11.5' H opening; 316 lbs per unit; ships unassembled
- Corrosion and chemical resistance suitable for harsh environments
- Width:
- 11'
- Height:
- 11.5'
- Max Width:
- 11'
- Folded Lattice Height:
- 11.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 11'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 316.0 lbs. ea.
- Package Size:
- Each
