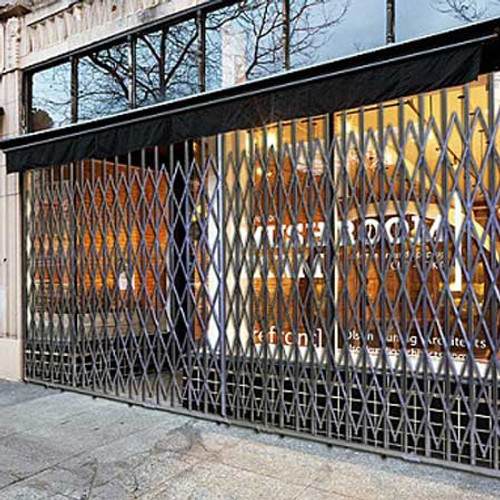

The Illinois Engineered Products HYDP12115 Storefront Security Gate is a full-width solution designed to segment storefronts, warehouses, or restricted zones quickly and securely. Built as a pair gate with a fixed top frame and expandable bottom lattice, it provides continuous coverage across a 12 ft opening and stands 11.5 ft high, enabling you to block access while maintaining clear sightlines for monitoring and safety. The gate’s combination of vertical bars riding in tracks and scissor-lattice sections combines rigidity with flexibility, supporting rapid setup and reliable operation in busy facilities.
Constructed from galvanized steel with a 1-1/4" x 5/8" 14-gauge C-channel frame and 3/8" x 3/4" 14-gauge U-channel lattice reinforced by zinc-plated rivets, the system is built to withstand routine use and varied conditions. The design includes a standard padlock hasp for locking, with an integrated cylinder lock available as an option, and top/bottom tracks to ensure stable, smooth movement when expanding or retracting. Finish options include galvanized steel with powder-coated colors available on request, offering durability in indoor and outdoor environments where exposure to heat, rain, snow, or industrial cleaners is a consideration.
Ideal for creating controlled access zones in storefronts or warehouse entries, this gate ships unassembled to minimize shipping damage and accommodate on-site assembly. The unit is specified as non-returnable and is priced and sized to cover a 12 ft width with a fixed top and folding bottom configuration, weighing approximately 345 lbs per gate. When planning installation, consider the need for the included hardware and the potential requirement for the optional integrated locking mechanism to enhance security at rest or during extended closures.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Indoor/outdoor use with resistance to heat, rain, snow, and chemicals
- Fixed top frame with folding bottom design
- Galvanized steel construction with optional powder coat finishes
- Standard padlock hasp; integrated cylinder lock optional
- 1-year manufacturer warranty
- Ships unassembled for on-site customization
- Width:
- 12'
- Height:
- 11.5'
- Max Width:
- 12'
- Folded Lattice Height:
- 11.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 11'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 345.0 lbs. ea.
- Package Size:
- Each
