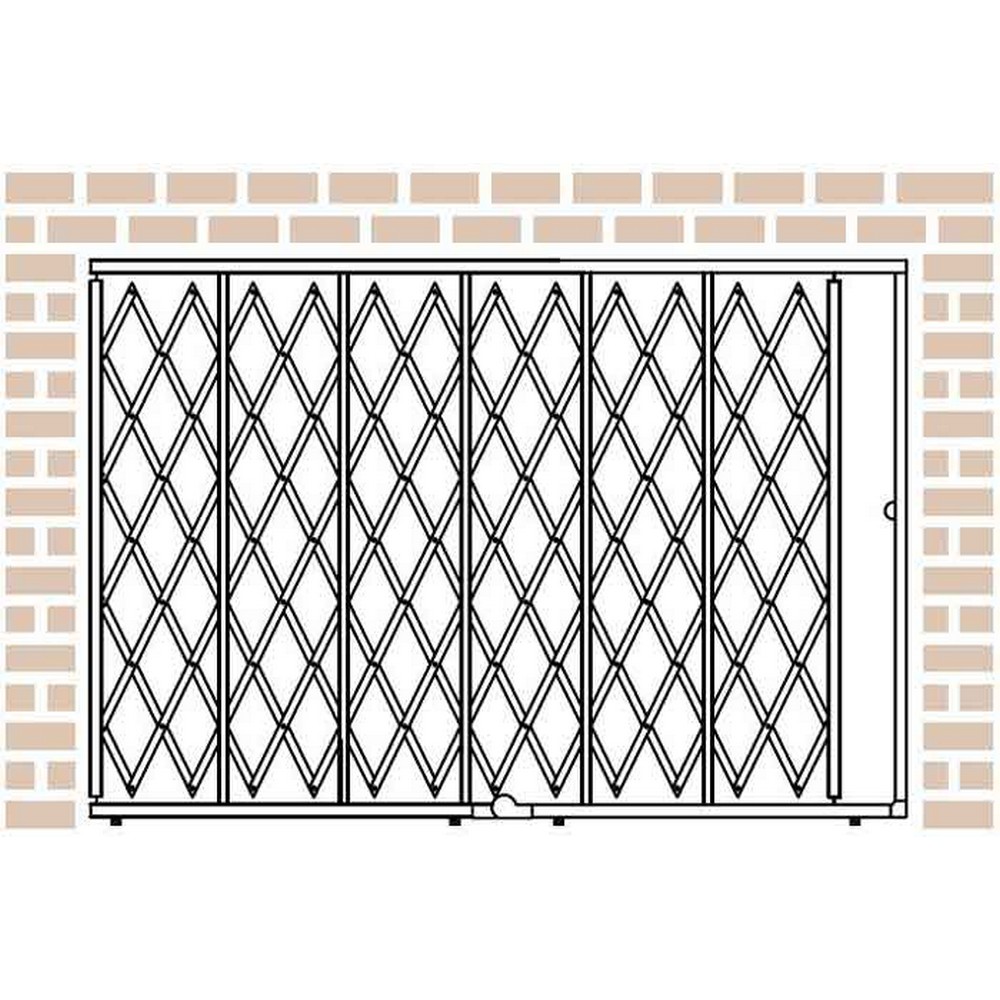

The HYDS6105 storefront security gate from Illinois Engineered Products is a full-width, single-gate barrier designed to secure storefronts, warehouse entries, and restricted work areas. It combines vertical bars riding in tracks with a traditional scissor lattice, delivering continuous coverage that can be deployed quickly to seal off a space and retracted when access is needed. The unit is galvanized steel with a durable 14-gauge frame and lattice components, and it ships unassembled for flexible on-site installation.
Construction and distinguishing features include a fixed top track and a folding bottom arrangement, with a 6' width and 10.5' height that accommodates standard storefront openings while maintaining clear sightlines. The system uses a 1-1/4" x 5/8" 14-gauge C-channel steel frame and 3/8" x 3/4" 14-gauge U-channel lattice secured by zinc-plated rivets, providing robust rigidity. A padlock hasp is standard for basic locking, with an integrated cylinder lock available as an option, and finish options include galvanized steel with powder coat colors available on request. The assembly is designed for indoor and outdoor use and is compatible with top and bottom track configurations, as well as other sizes.
Features:
- Combination of vertical bars and scissor gates for complete coverage
- All-weather performance for indoor and outdoor use
- Fixed top frame with folding bottom lattice for flexible access
- Sturdy 14 gauge C-channel frame and lattice construction
- Padlock hasp standard; integrated cylinder lock available
- Galvanized finish with optional powder coat colors
- Ships unassembled with 1-year warranty
- Width:
- 6'
- Height:
- 10.5'
- Max Width:
- 6'
- Folded Lattice Height:
- 10.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 10'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 158.0 lbs. ea.
- Package Size:
- Each
