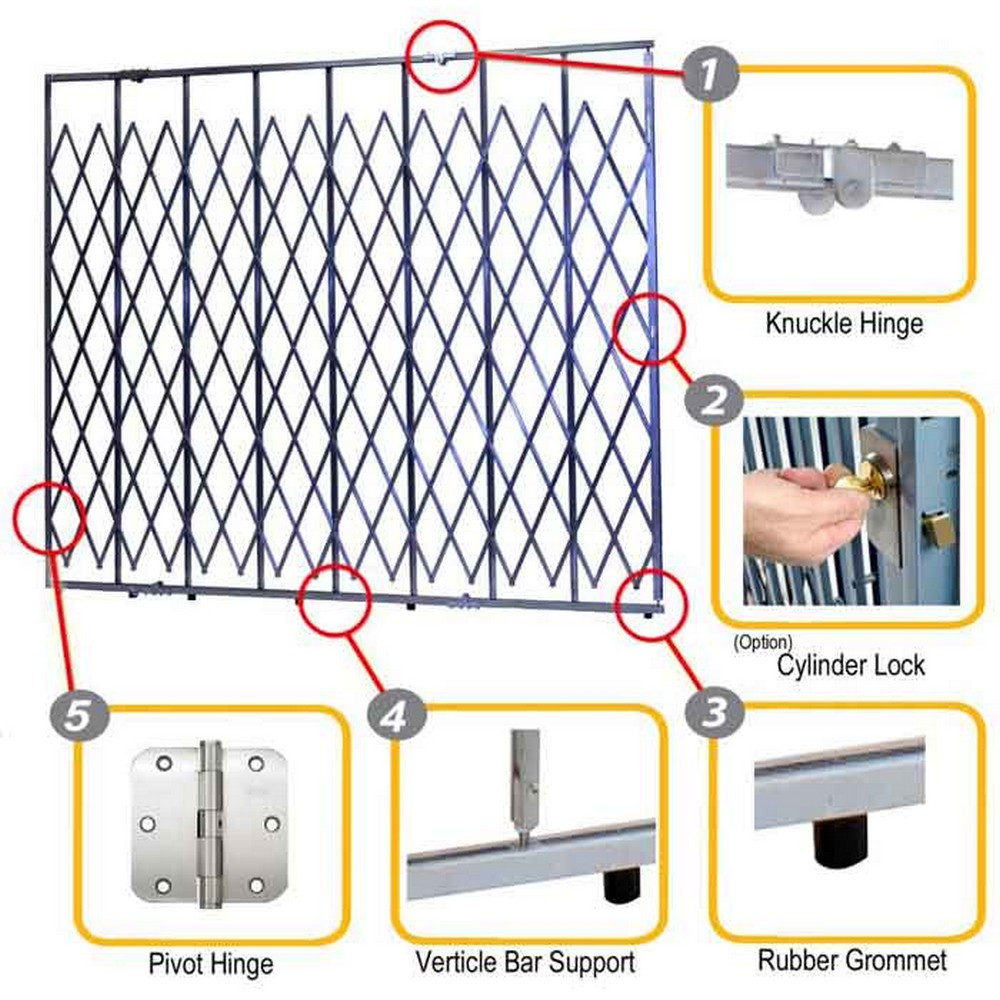

The Illinois Engineered Products HYDS595 storefront security gate is designed to secure larger storefront or internal warehouse openings with a full-width, continuous gate configuration. Its 5-foot by 9.5-foot footprint provides uninterrupted coverage for securing a single span, with a fixed top track and a folding bottom section that enables expansion or retraction as needed. The design combines vertical bars riding in tracks with a traditional scissor lattice, delivering a blend of rigidity and security for loss prevention in busy commercial environments.
Construction details emphasize sturdy, corrosion-resistant materials suitable for both indoor and outdoor use, with a galvanized steel frame and lattice components specified in the product data. The lattice uses 14-gauge U-channel steel with reinforced rivets, and the frame employs 1-1/4 inch by 5/8 inch 14-gauge C-channel steel supported by rubber grommet feet. A 1-7/8 inch by 1-3/8 inch box-channel top and bottom track ensures smooth operation for expanding or retracting the gate, while a padlock hasp is included for securing the unit in position; an integrated cylinder lock is available as an option. The unit ships unassembled and weighs approximately 119 pounds per gate, with options for powder-coated finishes upon request to fit site aesthetics or corrosion resistance needs.
Common applications include defining storefront boundaries, securing warehouse fronts, or sectioning off areas within a facility where clear, rigid containment is required. The HYDS595 is specified as non-returnable, reflecting its use as a durable, industrial-grade barrier component. When planning installation, consider the fixed top and folding bottom design, recommended mounting clearances, and the availability of top/bottom track configurations to suit installation needs. The product is offered in a single-gate configuration and is designed to be compatible with standard installation practices for storefront gates of this size and construction.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Weather resistant for indoor/outdoor use
- Fixed top frame with folding bottom option
- Padlock hasp standard; integrated cylinder lock optional
- Galvanized steel construction with durable channel profiles
- Unassembled shipment for flexible installation
- Width:
- 5'
- Height:
- 9.5'
- Max Width:
- 5'
- Folded Lattice Height:
- 9.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 9'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 119.0 lbs. ea.
- Package Size:
- Each
