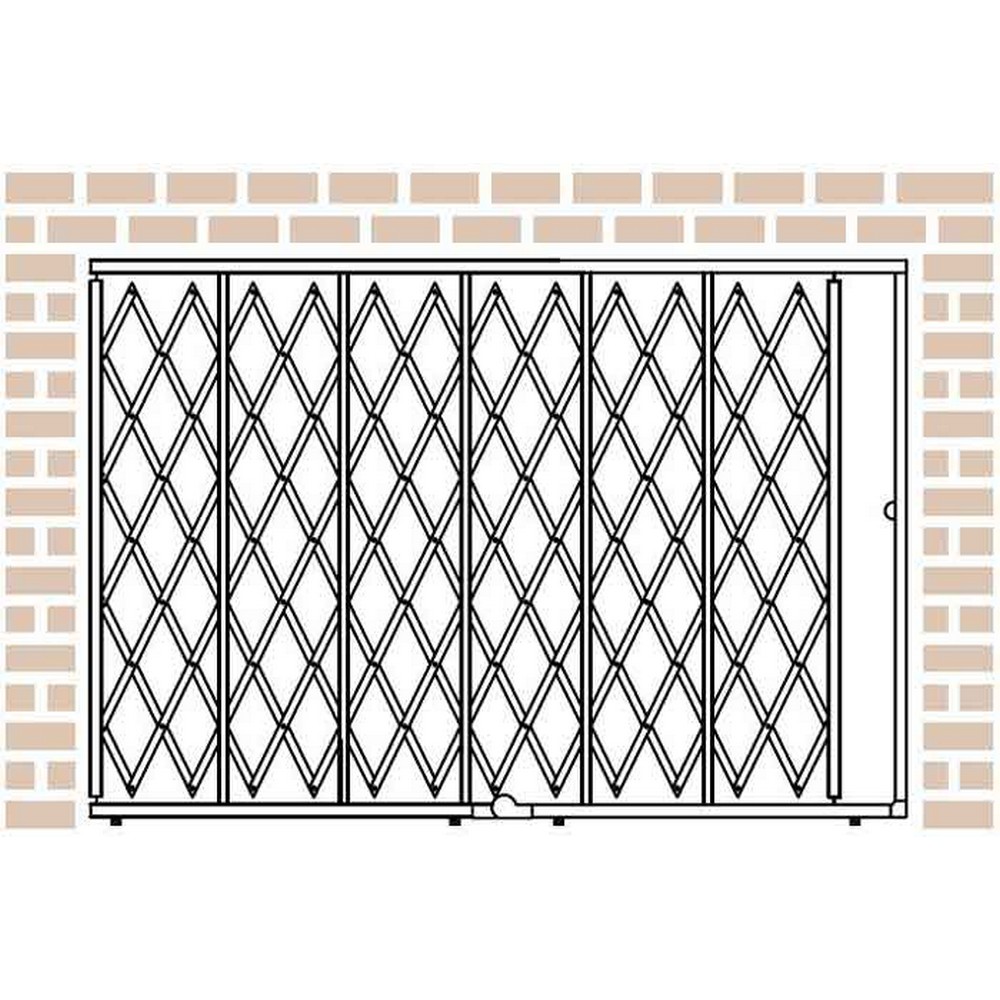

The HYDS695 Storefront Security Gate from Illinois Engineered Products is a full-width, fixed-top, folding-bottom gate designed to secure storefronts, warehouse entrances, or open-area sections within facilities. This single-gate configuration measures 6 feet wide by 9.5 feet high and deploys quickly to create a continuous barrier that can be expanded or retracted as needed. The gate combines vertical bars that ride in tracks with a traditional scissor lattice, delivering a balanced approach to coverage and security for loss prevention. The unit is constructed from galvanized steel with 14-gauge components, including a 1-1/4 inch by 5/8 inch C-channel frame and a 3/8 inch by 3/4 inch lattice, and it includes rubber grommet feet to protect floors and reduce movement. A padlock hasp comes standard, with an integrated cylinder lock option available to add an extra layer of security if required. The product ships unassembled and carries a 1-year manufacturer warranty.
This storefront gate is configured with a fixed top frame and a folding bottom lattice, and it is designed to withstand varied conditions typical of both indoor and outdoor environments. The heavy-duty construction is rated for exposure to heat, rain, snow, and harsh industrial cleaners or chemicals encountered in many warehouse or storefront settings. The manufacturer notes that top and bottom track styles are available, along with other sizes, offering flexibility for different doorway or opening dimensions. The galvanized finish provides corrosion resistance, while powder-coated color options may be requested to match facility aesthetics or branding.
When considering installation and use, users should account for the weight (approximately 143 pounds per unit) and the need for proper anchoring and track mounting as part of the assembly. The product is intended for securing open storefronts or delineating areas within a facility, helping to deter unauthorized access while preserving visibility and access control. Sizing is fixed at 6' width and 9.5' height with a maximum expansion equal to the listed width; unassembled shipment means planning for on-site assembly and assembly time.
Features:
- Combination of vertical bars and scissor gates for comprehensive security
- All-weather construction suitable for indoor or outdoor use
- Fixed top frame with foldable bottom lattice for flexible access
- Galvanized steel with durable 14-gauge components
- Padlock hasp standard; integrated cylinder lock optional
- Ships unassembled for easier shipping and handling
- Width:
- 6'
- Height:
- 9.5'
- Max Width:
- 6'
- Folded Lattice Height:
- 9.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 9'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 143.0 lbs. ea.
- Package Size:
- Each
