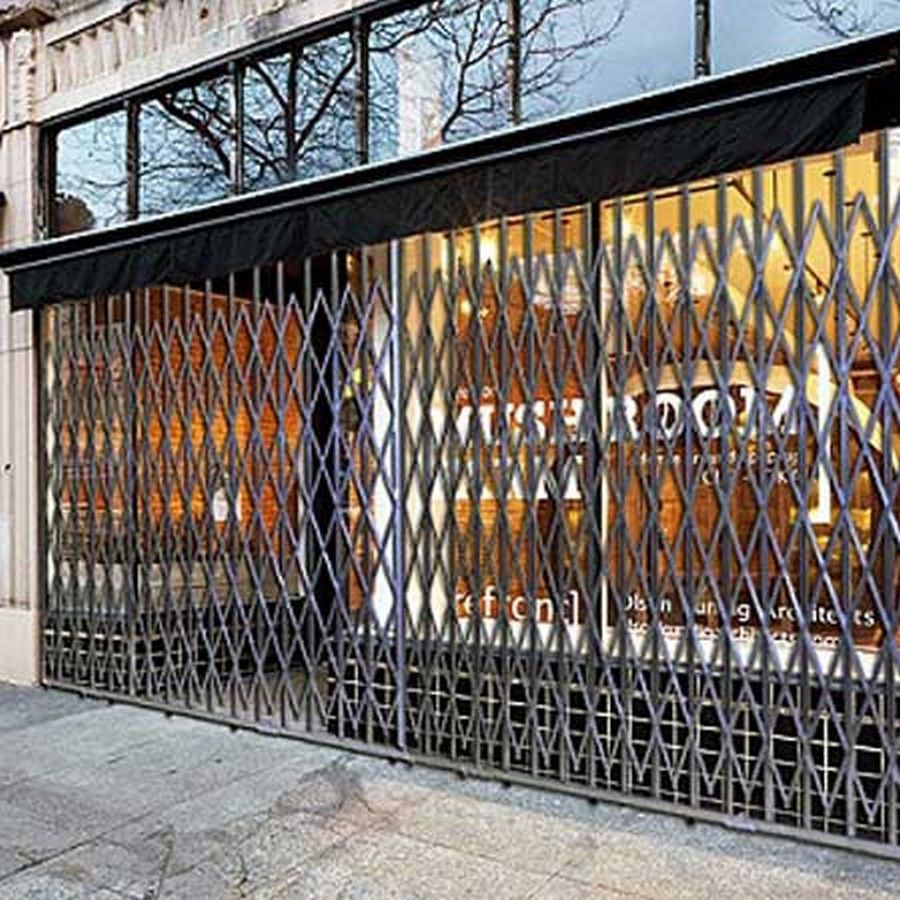

The Illinois Engineered Products HYDP1695 storefront security gate is designed to secure commercial entrances, storefronts, and internal work areas with a full-width, continuous gate system. This unit spans 16 feet in width and stands 9.5 feet high, providing a robust barrier that can be deployed quickly to section off spaces or deter shoplifting and unauthorized access. The gate uses a combination of vertical bars riding in tracks with a traditional scissor lattice, delivering a dense, visually continuous barrier while still allowing smooth expansion and retraction when access is needed.
Constructed from galvanized steel, the system features a 1-1/4" x 5/8" 14-gauge C-channel frame and 3/8" x 3/4" 14-gauge U-channel lattice, with zinc-plated rivets for added rigidity. It includes a standard padlock hasp, with an integrated cylinder lock option available, and is finished in galvanized steel with powder coat colors available on request. The top and bottom track styles enhance stability, and the assembly ships unassembled, ready to be installed on-site. A 1-year manufacturer warranty backs the product, reflecting its intended use in demanding environments.
This storefront security gate is suitable for indoor or outdoor installations and is designed to withstand heat, rain, snow, and exposure to harsh industrial cleaners. It can be paired with other sizes and track configurations to fit different openings, and fits a maximum width of 16'. When planning installation, consider the need for tracking space, anchoring in a suitable substrate, and the option to use the top and bottom track styles to suit your mounting constraints.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Indoor/outdoor performance against heat, rain, snow and chemicals
- Fixed top frame with folding bottom lattice option
- Standard padlock hasp; optional integrated cylinder lock
- Galvanized steel construction with powder coat options
- Ships unassembled for flexible installation
- Width:
- 16'
- Height:
- 9.5'
- Max Width:
- 16'
- Folded Lattice Height:
- 9.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 9'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 380.0 lbs. ea.
- Package Size:
- Each
