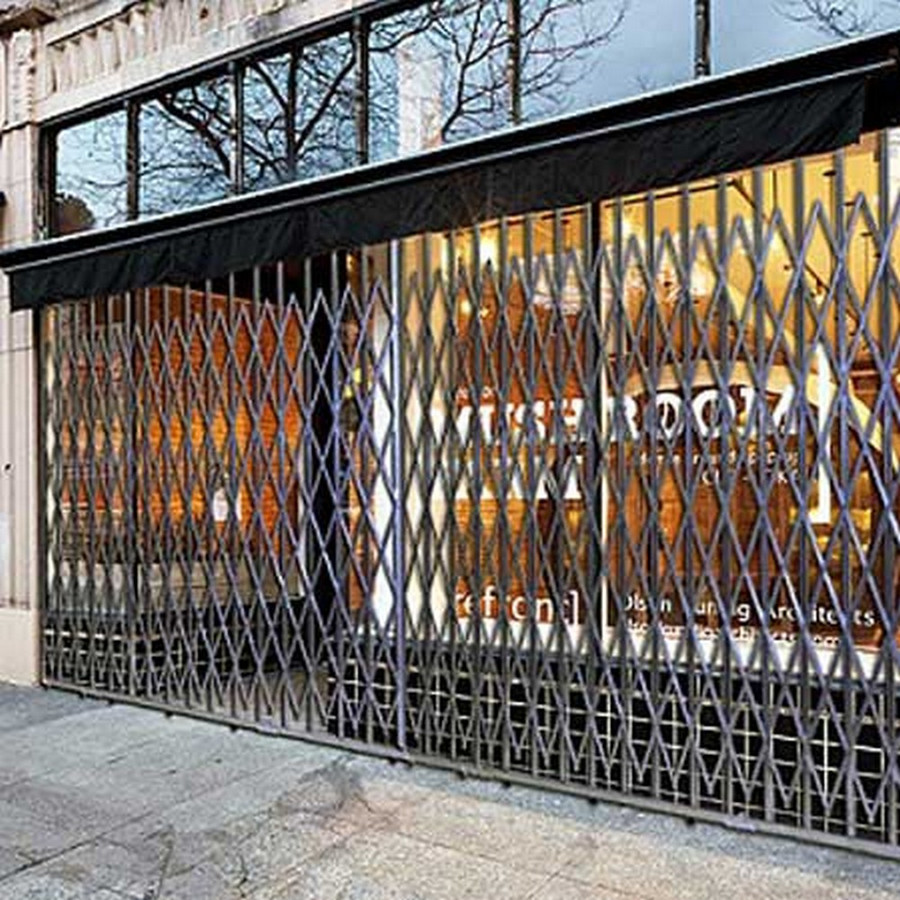

The Illinois Engineered Products HYDP995 storefront security gate is a full-width barrier designed to section off storefronts or warehouse areas quickly and securely. This pair gate system combines vertical bars that ride in tracks with a traditional scissor lattice, delivering continuous coverage across a 9-foot width and 9.5-foot height. The unit ships unassembled and can be set up in seconds, with a design that accommodates expansion or retraction as needed, making it suitable for temporary or semi-permanent security needs. The structure uses galvanized steel components, with a 14-gauge C-channel frame and 14-gauge lattice, and it employs rubber grommet feet to help protect floors and reduce movement during operation. A padlock hasp is provided as a standard locking option, while an integrated cylinder lock is available as an upgrade. The finished product is compatible with powder coat colors upon request, offering basic corrosion resistance in addition to galvanization, and is suitable for both indoor and outdoor installations, including environments with heat, rain, snow, or exposure to harsh cleaners or chemicals. The unit is listed as a store-front security gate—pair gate—and weighs about 214 lb per side, with a 9' width and 9.5' overall height. As a non-returnable item, it is intended for customers who require a robust, quickly deployable barrier that can deter unauthorized access without complex installation.
Features:
- Hybrid of vertical bars and scissor gates for enhanced security
- Versatile for indoor or outdoor use under harsh conditions
- Fixed top frame with folding bottom track for adaptable installation
- Durable 14 gauge steel framing and lattice with zinc-plated rivets
- Padlock hasp standard; optional integrated cylinder lock
- Galvanized finish with powder coat options on request
- Ships unassembled as a pair gate
- Width:
- 9'
- Height:
- 9.5'
- Max Width:
- 9'
- Folded Lattice Height:
- 9.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 9'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 214.0 lbs. ea.
- Package Size:
- Each
