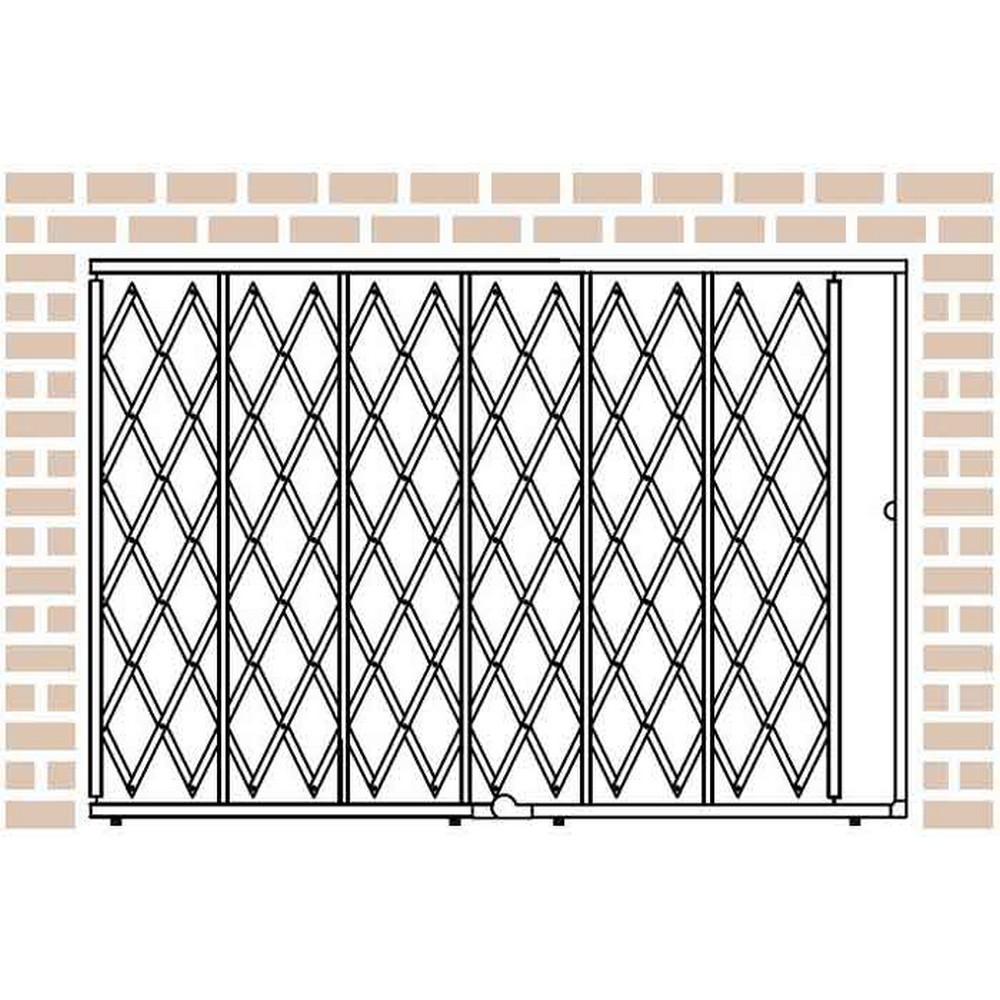

The Illinois Engineered Products HYDS511 Storefront Security Gate is a full-width, modular barrier designed to secure storefronts, warehouse entries, and defined work zones. This single-gate unit spans 5 feet in width and 11 feet in height, providing a continuous barrier that can be deployed quickly to section off areas or shield inventory and personnel from access hazards. Its straightforward design enables rapid setup and smooth operation when expanding or retracting the gate as needed for access control.
Constructed with a combination of vertical bars riding in tracks and a traditional scissor lattice, the HYDS511 emphasizes effective loss prevention through robust coverage. The frame is built from 1-1/4 inch by 5/8 inch 14-gauge C-channel steel with rubber grommet feet, while the lattice uses 14-gauge U-channel steel with securing rivets, delivering a rigid, stable barrier. The unit ships unassembled and includes a padlock hasp as standard, with an optional integrated cylinder lock for added security. The galvanized steel finish ensures durability in varied environments, and powder coat color options are available upon request for additional customization.
Ideal for indoor or outdoor applications where a continuous barrier is needed, this storefront gate is designed to withstand exposure to heat, rain, snow, and typical industrial cleaners. It is listed as a single-storefront gate with a fixed top track and a folding bottom track option noted in its product family, offering flexibility in installation and use. As with any mounted barrier, verify exact fit to your doorway or opening and confirm maintenance needs, such as periodic lubrication of moving components and protection of latch points to preserve smooth operation. The HYDS511 weighs approximately 138 pounds per unit and is sold as an individual, non-returnable item, with a one-year manufacturer warranty backing its build quality.
Features:
- Hybrid design with vertical bars and scissor gates for enhanced security
- Indoor or outdoor suitability with resistance to heat, rain, snow, and chemicals
- Fixed top frame with folding bottom lattice for flexible access
- Galvanized steel construction with optional powder coat finishes
- Padlock hasp standard; integrated cylinder lock optional
- Sturdy 14-gauge frame and lattice components with zinc-plated fasteners
- Width:
- 5'
- Height:
- 11'
- Max Width:
- 5'
- Folded Lattice Height:
- 11'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 10.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 138.0 lbs. ea.
- Package Size:
- Each
