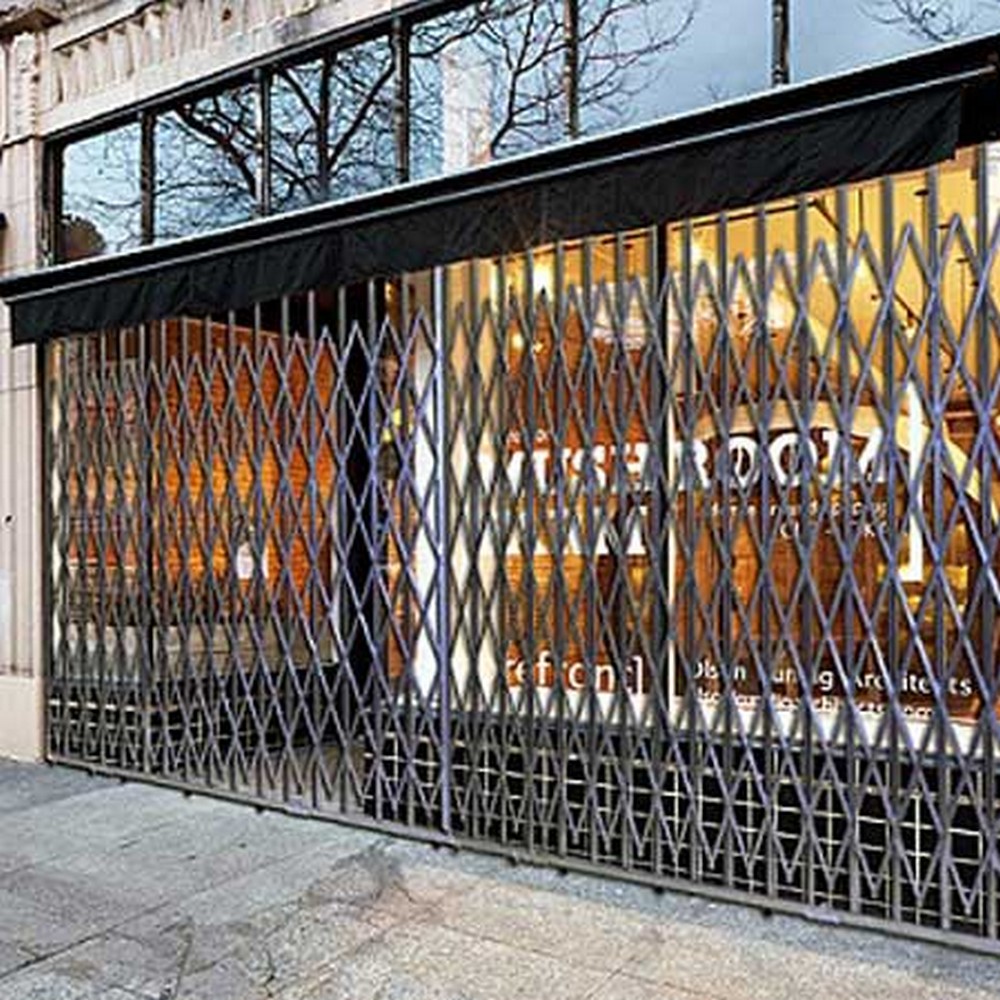

The IEPHYDS611 storefront security gate from Illinois Engineered Products provides a full-width, continuous barrier designed to secure storefronts, warehouse areas, or other restricted spaces. Its 6' wide by 11' high footprint creates a substantial physical boundary that can be deployed quickly and without extensive installation effort. The assembly combines vertical bars that ride in tracks with a traditional scissor lattice, delivering a broad coverage solution for loss prevention while remaining operable as you expand or retract the gate.
Constructed from galvanized steel, the gate features a 1-1/4" x 5/8" 14-gauge C-channel frame with rubber grommet feet for stability, and a lattice formed from 14-gauge U-channel steel with zinc-plated rivets. The design supports indoor and outdoor use and is described as capable of withstanding heat, rain, snow, and exposure to harsh industrial cleaners or chemicals. A padlock hasp is included as standard locking hardware, with an integrated cylinder lock option available for higher security needs. The unit ships unassembled and carries a 1-year manufacturer warranty. Finish options include galvanized steel with powder-coated colors available on request.
This gate is suitable for creating a secure perimeter in storefronts, retail spaces, or industrial facilities where quick setup and reliable physical separation are required. It is designed to fit widths up to 6' and stands 11' high, with both top and bottom track options described as available. When planning installation, consider the need for track styles, mounting surface, and the potential requirement for additional expansion or folding configurations to match evolving space constraints.
Features:
- Combination of vertical bars and scissor gates for comprehensive security
- Suitable for indoor and outdoor environments, resistant to heat, rain, snow and harsh cleaners
- Top & bottom track styles available, with other sizes offered
- Powder coat color options available on request
- Padlock hasp standard; integrated cylinder lock optional
- Galvanized steel construction with rugged 14-ga frame and lattice
- Width:
- 6'
- Height:
- 11'
- Max Width:
- 6'
- Folded Lattice Height:
- 11'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 10.5'
- Frame:

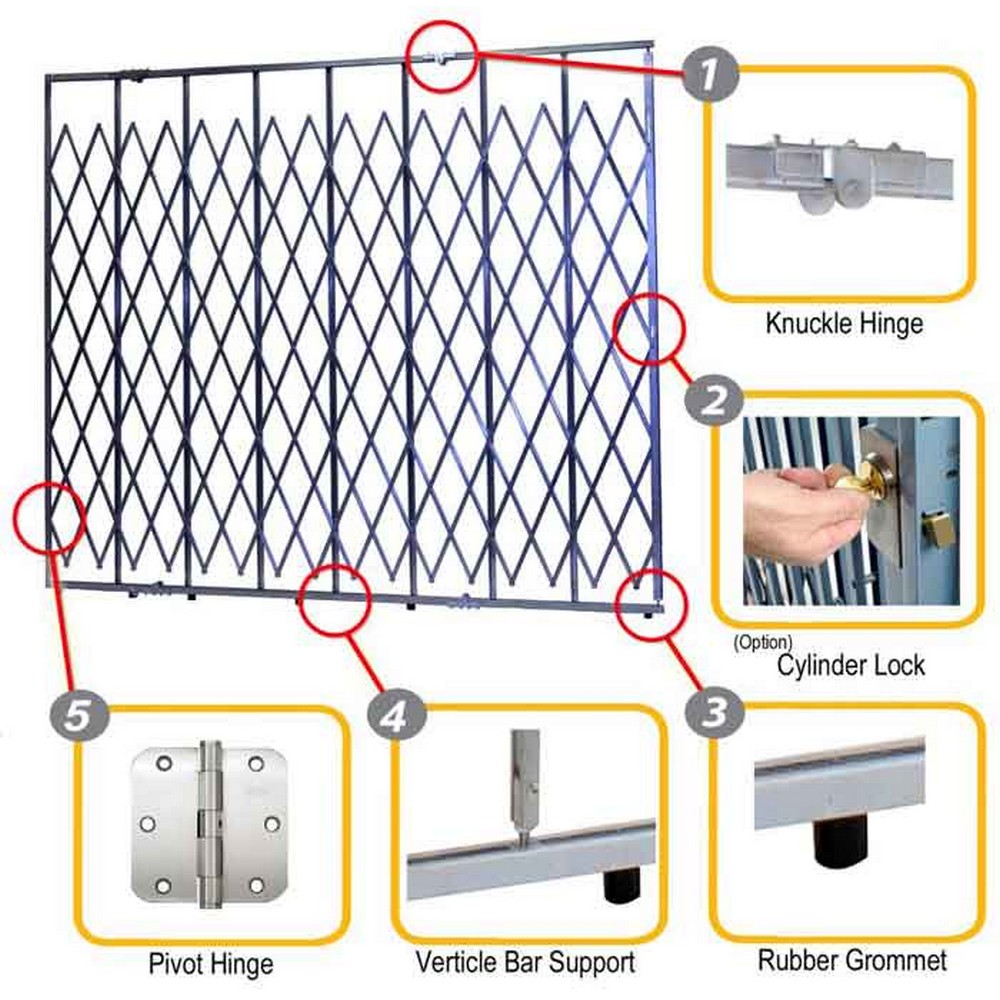

- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 660.0 lbs. ea.
- Package Size:
- Each
