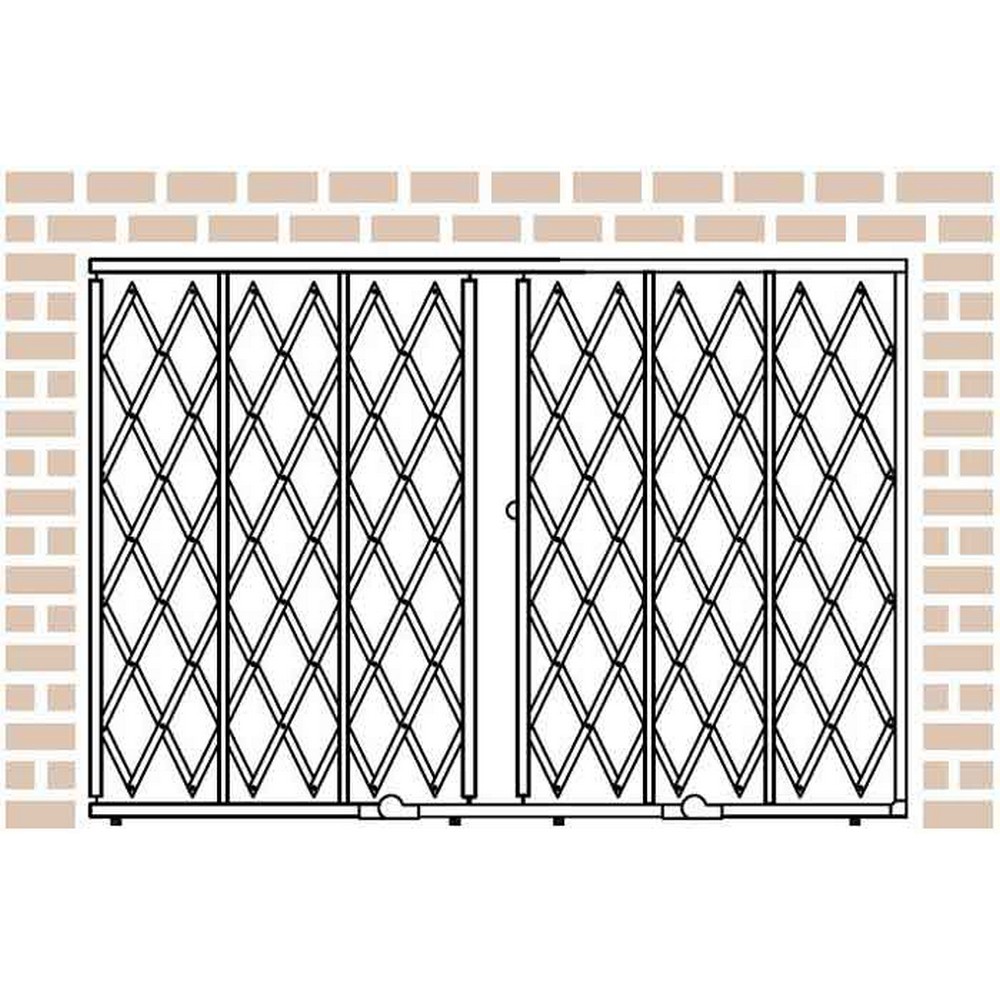

The Illinois Engineered Products HYDP811 storefront security gate provides a full-width, continuous barrier designed to segment areas within a facility or protect storefronts. This pair-gate system uses a combination of vertical bars riding in tracks and an integrated scissor lattice to offer clear sightlines while maintaining a robust, loss-prevention-focused enclosure. The unit is designed for indoor or outdoor use and is built to withstand industrial conditions, including exposure to heat, rain, snow, and common cleaners or chemicals, with galvanized steel construction and powder-coat finish options available on request.
Features:
- Combination of vertical bars and scissor gates for total coverage and enhanced security
- All-weather construction suitable for indoor or outdoor use
- Top fixed and bottom folding design for versatile access control
- Galvanized steel frame and lattice with durable hardware
- Padlock hasp standard; integrated cylinder lock available as an option
- Ships unassembled for flexible on-site installation
- Other sizes and top/bottom track styles available on request
- Width:
- 8'
- Height:
- 11'
- Max Width:
- 8'
- Folded Lattice Height:
- 11'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 10.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 220.0 lbs. ea.
- Package Size:
- Each
