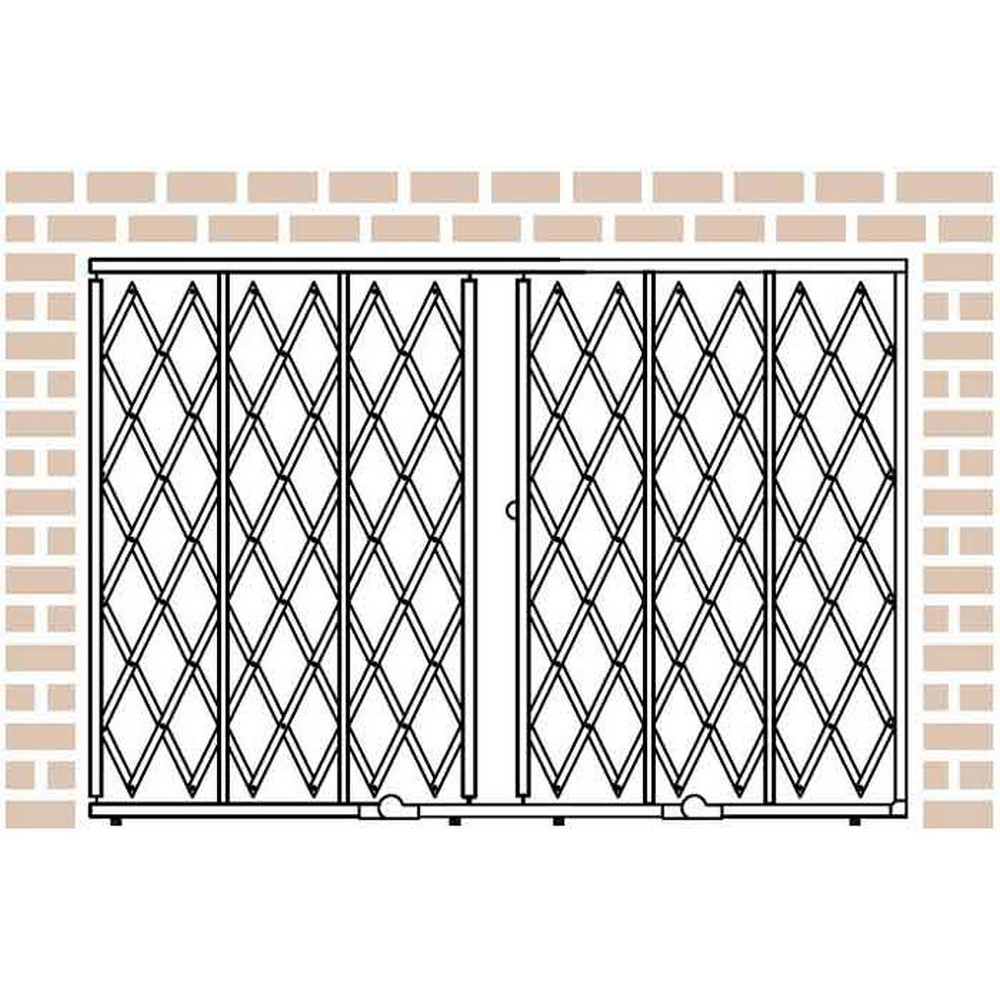

The Illinois Engineered Products HYDP1411 Storefront Security Gate is a full-width, double-sided containment solution designed to section off warehouse spaces or shield storefront areas. This pair of gates spans 14 feet in width and 11 feet in height, offering a continuous barrier that combines vertical bar coverage with a scissor lattice for enhanced security and controlled access. The assembly ships unassembled, and the design accommodates expansion or retraction with smooth operation, allowing quick changes to open layouts as needed.
Construction details include a 1-1/4" x 5/8" 14-gauge C-channel steel frame with rubber grommet feet, paired with 3/8" x 3/4" 14-gauge U-channel steel lattice and supporting rivets. A standard padlock hasp is included for locking options, with an integrated cylinder lock available as an accessory. The gate is manufactured in galvanized steel, with powder coat color options available on request, suitable for both indoor and outdoor environments that may encounter heat, rain, snow, or industrial cleaners.
Practical use considerations emphasize rapid setup and simple installation, making it suitable for areas requiring temporary or semi-permanent security barriers. The product is offered as a pair gate, intended to cover the full width when deployed, and weighs approximately 385 pounds per unit, underscoring its substantial, fixed installation footprint. The design includes top and bottom tracks for stable operation, with variations available in top frame styles and expanded lattice heights to accommodate different site requirements. To ensure proper fit, refer to the stated width, height, and track configurations, and plan for assembly and on-site anchoring as part of installation considerations.
Features:
- Combination of vertical bars and scissor gates for total coverage and security
- Suitable for indoor and outdoor use, resistant to heat, rain, snow, and chemicals
- Fixed top frame with folding bottom section for flexible access
- Galvanized steel construction with 14 gauge and 14 gauge components
- Padlock hasp standard; integrated cylinder lock optional
- Ships unassembled; powder coat colors available on request
- 1-year manufacturer warranty
- Width:
- 14'
- Height:
- 11'
- Max Width:
- 14'
- Folded Lattice Height:
- 11'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 10.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 385.0 lbs. ea.
- Package Size:
- Each
