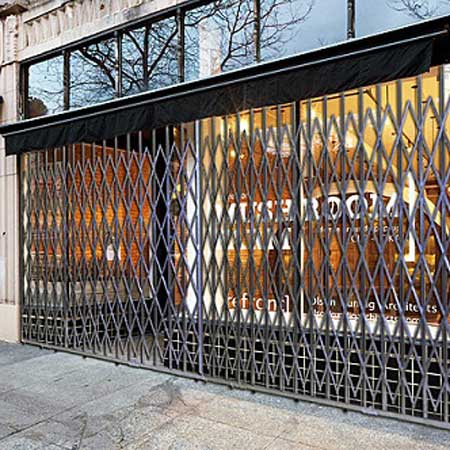

The HYDS510 storefront security gate from Illinois Engineered Products is a full-width, single-gate system designed to section off or shield storefronts and warehouse entries. With a 5' wide by 10' high footprint, this gate provides a continuous barrier that can be expanded or retracted as needed, helping to control access while allowing quick setup when securing a space. The unit ships unassembled and includes a robust frame and lattice construction to support reliable operation in busy facilities.
Constructed from galvanized steel, the gate features a frame built from 1-1/4" x 5/8" 14-gauge C-channel steel and lattice elements of 14-gauge U-channel steel, with zinc-plated rivets for durability. A fixed top track and a bottom track design, along with a 3/8" x 3/4" 14-gauge lattice, contribute to a sturdy, stable barrier that can withstand challenging conditions. The system includes a padlock hasp as a standard locking option, with an integrated cylinder lock available as an upgrade. The product is designed for indoor and outdoor use, tolerating heat, rain, snow, and exposure to common industrial cleaners.
Practical operation is achieved through a combination of vertical bars riding in tracks and traditional scissor lattice, enabling secure, smooth expansion or retraction. The HYDS510 is suitable for creating controlled access in storefronts, loading bays, or other high-traffic areas where a fixed-height barrier is beneficial. Consider the 5' width and 10' height when planning installation space, and note that this item is sold as a non-returnable, single-gate unit with a 1-year manufacturer warranty. For installation and sizing, verify that the top and bottom track styles align with your site requirements and that hardware, such as mounting fasteners, is coordinated with your facility’s specifications.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Indoor or outdoor use withstands heat, rain, snow, and harsh chemicals
- Top and bottom track styles available with other sizes
- Ships unassembled for flexible installation
- Padlock hasp standard; integrated cylinder lock optional
- Galvanized steel construction with optional powder coat colors
- Width:
- 5'
- Height:
- 10'
- Max Width:
- 5'
- Folded Lattice Height:
- 10'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 9.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 125.0 lbs. ea.
- Package Size:
- Each
