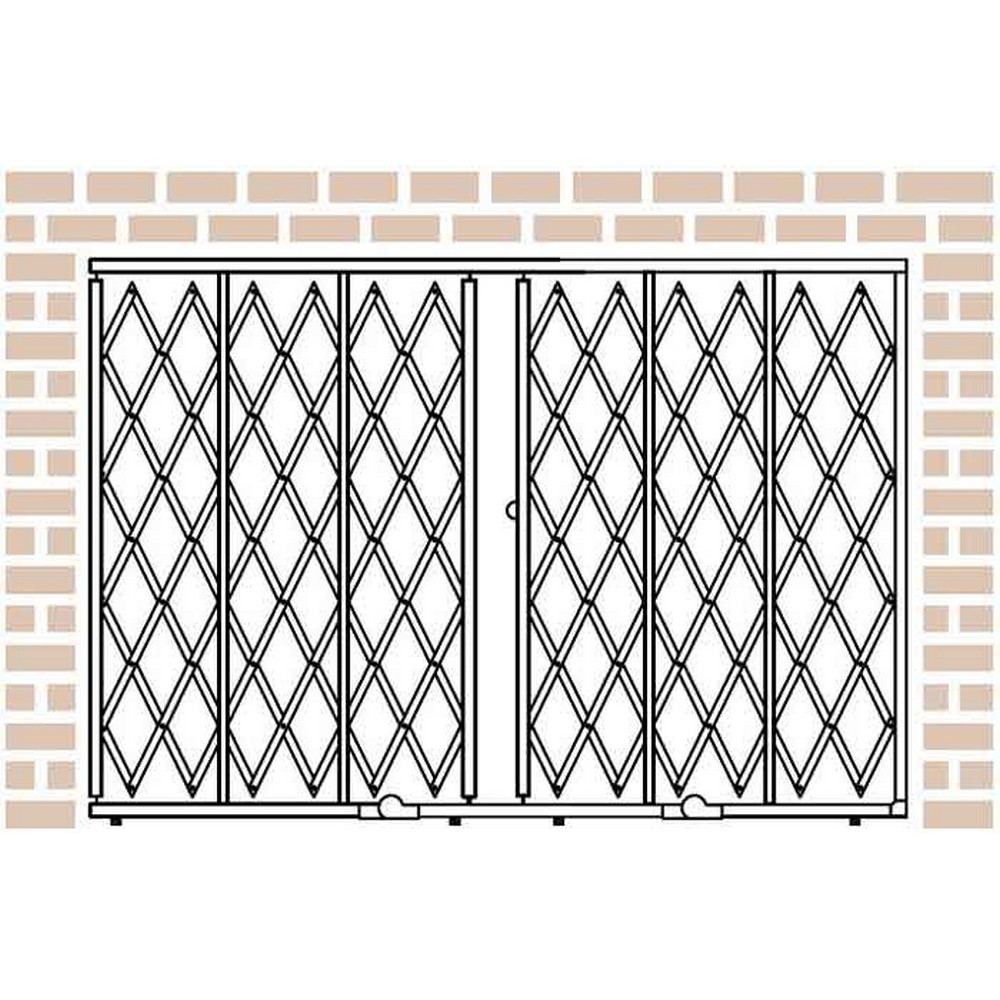

This storefront security gate from Illinois Engineered Products is a full-width, two-part barrier designed to secure storefronts, warehouse entries, or internal access points. The unit is specified as a 10' wide by 11' high configuration and is delivered as a pair gate with a fixed top track and a folding bottom, enabling quick setup and expansion or retracting as needed. The construction combines vertical bars riding in tracks with a traditional scissor lattice to provide continuous coverage across the opening, which supports loss prevention efforts in busy spaces.
From a build perspective, the gate uses a 1-1/4" x 5/8" 14-gauge C-channel steel frame with rubber grommet feet for stability, and a lattice assembly constructed from 14-gauge U-channel steel with zinc-plated rivets. The result is a robust barrier that remains functional in both indoor and outdoor environments, and capable of withstanding exposure to heat, rain, snow, or industrial cleaners. The top and bottom track profiles are designed to accommodate smooth operation even as the gate expands or retracts, and a standard padlock hasp is included with the option to add an integrated cylinder lock for enhanced security.
This model ships unassembled and weighs approximately 275 lbs per unit, reflecting its sturdy fabrication and the need for proper installation. Finish options include galvanized steel, with powder coat colors available on request, to suit specific facility aesthetics or corrosion resistance needs. While the product is sold as non-returnable, it provides a flexible solution for partitioning spaces, creating controlled access points, and safeguarding high-traffic areas when installation is aligned with the accompanying tracks and mounting hardware.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Versatile for indoor and outdoor use in harsh conditions
- Fixed top frame with folding bottom configuration
- Galvanized steel construction with optional powder coat colors
- Includes standard padlock hasp; integrated cylinder lock available
- Sturdy 14 gauge steel framing and robust lattice
- Ships unassembled for flexible on-site installation
- Width:
- 10'
- Height:
- 11'
- Max Width:
- 10'
- Folded Lattice Height:
- 11'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 10.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 275.0 lbs. ea.
- Package Size:
- Each
