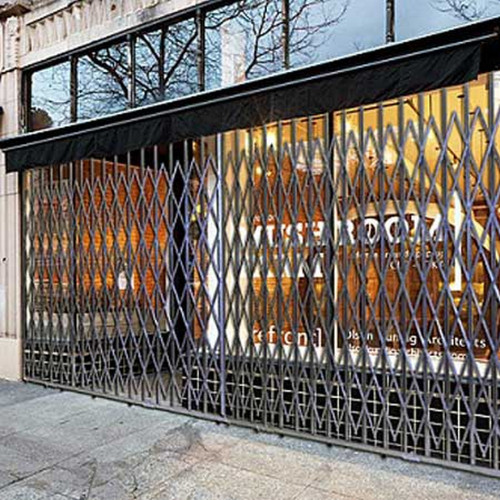

The Illinois Engineered Products HYDP1085 storefront security gate is a full-width, continuous barrier designed to secure storefronts, warehouse areas, and other high-traffic locations. This unit measures 10 feet wide by 8.5 feet high and combines vertical bars with a folding lattice design to provide comprehensive coverage while allowing smooth expansion or retraction as needed. The gate ships unassembled and is assembled on-site, with a galvanized steel frame and lattice components to resist indoor or outdoor exposure, including heat, rain, snow, and industrial cleaners. A padlock hasp comes standard, with an integrated cylinder lock option available, giving you flexible security configurations at installation.
Construction-wise, the HYDP1085 leverages a 1-1/4 inch by 5/8 inch 14-gauge C-channel steel frame paired with 3/8 inch by 3/4 inch 14-gauge U-channel steel lattice. The rail and track system uses 1-7/8 inch by 1-3/8 inch 11-gauge box channel steel for the top and bottom tracks, ensuring stable operation and smooth movement as the gate expands or collapses. Finishing options include galvanized steel by default, with powder coat colors available on request to suit site aesthetics or corrosion considerations. The unit weighs 213 pounds per gate and is sold as a pair gate in its storefront security configuration, offering a dense, secure barrier for wide openings.
This product is intended for installation in locations where rapid setup and reliable access control are required. Practical considerations include ensuring correct anchoring to structural elements for maximum stability, planning for the overhead clearances implied by the 8.5-foot lattice height, and selecting an appropriate security option (padlock hasp standard versus optional integrated cylinder lock) to match site policies. The HYDP1085 is a non-returnable item, and its dimensions define a 10-foot-wide opening, which should be matched to the doorway or opening it is intended to secure.
Features:
- Combination of vertical bars and scissor gates for full coverage
- Indoor and outdoor suitability; resistant to heat, rain, snow, and harsh cleaners
- Fixed top frame with available top/bottom track styles
- Galvanized steel construction; powder coat colors available on request
- Padlock hasp standard; integrated cylinder lock optional
- Ships unassembled for versatile installation
- Weight: 213.0 lbs per unit
- Width:
- 10'
- Height:
- 8.5'
- Max Width:
- 10'
- Folded Lattice Height:
- 8.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 8'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 213.0 lbs. ea.
- Package Size:
- Each
