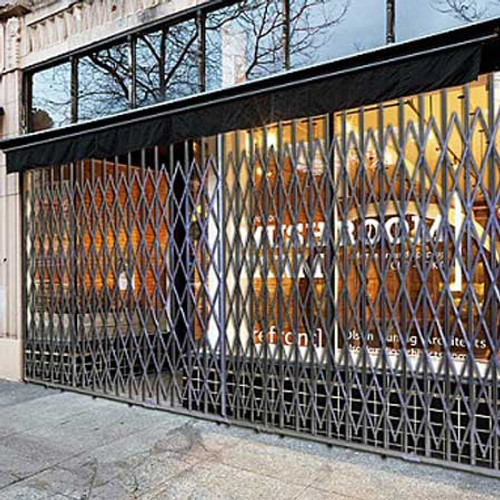

The Illinois Engineered Products HYDP812 storefront security gate is a full-width, adjustable barrier designed to segment retail and warehouse areas or shield storefronts. This pair of gates spans 8 feet in width and rises 12 feet high, providing continuous coverage with a combination of vertical bars that ride in tracks and a folding lattice system. The construction pairs 14-gauge materials: a 1-1/4" x 5/8" C-channel steel frame with rubber grommet feet and a 14-gauge U-channel lattice in a scissor-style configuration, reinforced with zinc-plated rivets for rigidity. The result is a sturdy, stand-alone solution that can be deployed quickly and expanded or retracted as needed. The galvanized steel base offers corrosion resistance, and optional powder coat finishes are available on request to suit specific environments.
This model supports both indoor and outdoor use, capable of withstanding typical industrial conditions, weather exposure, and routine cleaners or chemicals common in facility settings. A padlock hasp is included as a standard locking option, with an integrated cylinder lock available as an upgrade. The gate ships unassembled, with a top and bottom track configuration measuring 1-7/8" x 1-3/8" box channel steel, designed to provide stable, guided movement during operation. Weighing in at approximately 240 lb per unit, this piece is built for durable, long-term installation in spaces requiring a reliable, semi-permanent access-control barrier.
Features:
- Combination of vertical bars and scissor gates for full coverage
- Stands up to indoor and outdoor conditions, including heat, rain, snow and harsh chemicals
- Top & bottom track styles available and other sizes offered
- Padlock hasp standard; integrated cylinder lock optional
- Galvanized steel finish with optional powder coat colors
- Ships unassembled with a 1-year warranty
- Width:
- 8'
- Height:
- 12'
- Max Width:
- 8'
- Folded Lattice Height:
- 12'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 11.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 240.0 lbs. ea.
- Package Size:
- Each
