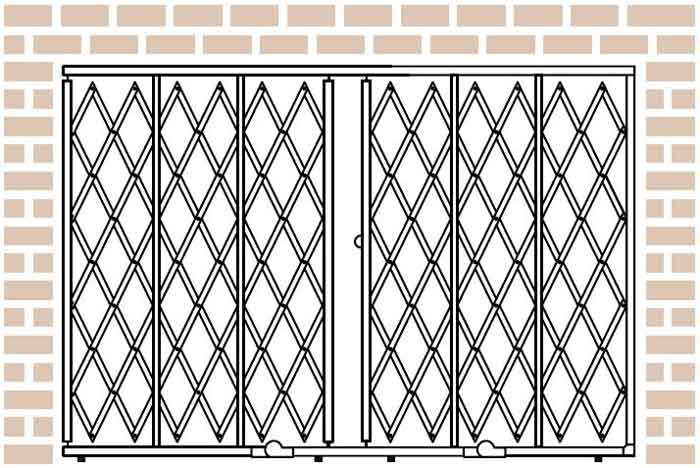

The Illinois Engineered Products HYDP1485 storefront security gate is a full-width, continuous barrier designed to help control access to storefronts, warehouse areas, or other high-traffic spaces. It features a pairing of vertical bars riding in tracks with a traditional scissor lattice for dependable loss prevention, while its fixed top and folding bottom configuration supports rapid setup and easy retraction when access is required. The unit is specified at a 14' width and 8.5' height, providing expansive coverage suitable for large storefronts or openings.
Constructed from galvanized steel, the gate includes a 1-1/4" x 5/8" 14 gauge C-channel frame with rubber grommet feet, and 3/8" x 3/4" 14 gauge U-channel steel lattice anchored with 1/4" x 1-1/2" zinc-plated steel rivets. A padlock hasp is included as standard, with an integrated cylinder lock option available, delivering basic security options to suit varying access control needs. Finish options include galvanized steel with powder coat colors available on request, allowing for corrosion resistance and color coordination in different environments. The top and bottom tracks use box channel steel to provide stable guidance for expansion and retraction, and the system ships unassembled for flexible on-site fitting.
This storefront gate is designed for versatile use in indoor or outdoor settings, capable of withstanding exposure to heat, rain, snow, and harsh industrial cleaners or chemicals. It ships as a pair gate with a total weight around 298 pounds per unit and is intended to be installed quickly to create secure, controllable zones within commercial facilities. When choosing this product, consider your opening width, mounting surface, and whether a fixed top with folding bottom best matches the flow of customer or employee traffic in your space.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Industriy-grade durability for indoor/outdoor use and harsh environments
- Top frame fixed; bottom lattice folds for flexible access
- Sturdy 14 gauge steel construction with durable fasteners
- Padlock hasp included; integrated cylinder lock optional
- Galvanized finish with powder coat color options on request
- Width:
- 14'
- Height:
- 8.5'
- Max Width:
- 14'
- Folded Lattice Height:
- 8.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 8'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 298.0 lbs. ea.
- Package Size:
- Each
