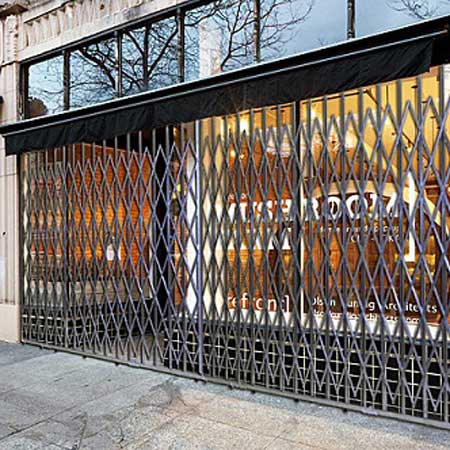

The HYDP885 storefront security gate from Illinois Engineered Products is a full-width gate designed to section off warehouse zones or protect storefront areas with a continuous, secure barrier. This gate pairs vertical bars that ride in tracks with a traditional scissor lattice, delivering broad coverage for loss prevention while allowing smooth expansion or retraction as needs change. The unit is intended for both indoor and outdoor use, and its galvanized steel construction offers compatibility with environments that involve heat, rain, snow, or exposure to industrial cleaners and chemicals.
Constructed with a 1-1/4" x 5/8" 14-gauge C-channel steel frame and 3/8" x 3/4" 14-gauge U-channel steel lattice, the gate is finished in galvanized steel with powder coat options available on request. It ships unassembled and weighs approximately 170 pounds per unit, with a fixed top track and a bottom track design that facilitates quick setup and reliable, stable operation. A standard padlock hasp is included, with an integrated cylinder lock option available, helping tailor the level of access control to your site’s security requirements.
This model measures 8 feet in width and 8.5 feet in height, with a maximum width of 8 feet in its expanded configuration. It is sold as a pair gate and is backed by a 1-year manufacturer warranty. Practical use cases include securing storefront entrances, cordoning off high-traffic work zones, or creating flexible, movable barriers in industrial facilities. Consider maintenance needs and environment when selecting finish and color options; installation is described as straightforward, but unassembled shipment means on-site assembly is required.
Features:
- Combination of vertical bars and scissor gates for total coverage and security
- Indoor or outdoor use; withstands heat, rain, snow, and harsh chemicals
- Top and bottom track styles available; other sizes offered
- Galvanized steel construction with optional powder coat colors
- Padlock hasp standard; integrated cylinder lock optional
- Ships unassembled; designed as a storefront security gate pair
- Width:
- 8'
- Height:
- 8.5'
- Max Width:
- 8'
- Folded Lattice Height:
- 8.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 8'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 170.0 lbs. ea.
- Package Size:
- Each
