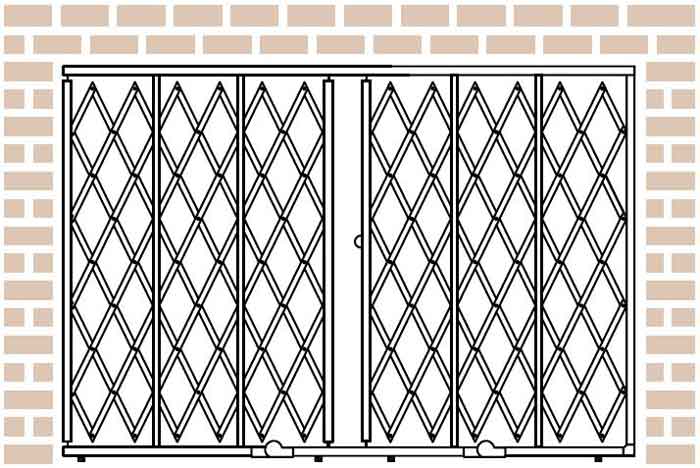

The Illinois Engineered Products HYDP1685 storefront security gate provides a full-width, continuous barrier designed to secure entrances, storefronts, or warehouse access points. The pair gate operates as a fixed-top, folding-bottom security solution that expands and retracts along a track system, allowing quick setup and flexible space division without permanent installation. Weighing 340 lbs per unit, the gate is built for demanding environments and can be used indoors or outdoors where exposure to heat, rain, snow, or common industrial cleaners occurs. The design blends vertical bars riding in tracks with a scissor lattice, delivering broad coverage and enhanced loss prevention across a 16' width and 8.5' height.
Constructed from galvanised steel with 14-gauge and 1/4"-to-1-1/2" riveted components, the HYDP1685 uses a robust frame and lattice system with rubber grommet feet to minimize floor wear. A padlock hasp is included as standard locking option, while an integrated cylinder lock is available as an upgrade. The top and bottom track styles (and other sizes) are available to tailor deployment to specific storefronts or security zones. The unit ships unassembled, with a one-year manufacturer warranty, and is offered as a store-ready storefront security gate pair suitable for creating temporary or semi-permanent barriers that can be deployed quickly as needs change.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Suitable for indoor or outdoor use; resistant to heat, rain, snow and harsh cleaners
- Fixed top frame with folding bottom configuration
- Galvanized steel construction with optional powder coat finish
- Padlock hasp standard; integrated cylinder lock option available
- Ships unassembled with 1-year manufacturer warranty
- Width:
- 16'
- Height:
- 8.5'
- Max Width:
- 16'
- Folded Lattice Height:
- 8.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 8'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 340.0 lbs. ea.
- Package Size:
- Each
