Restore structural integrity to damaged warehouse racking without the downtime and high cost of replacing full upright frames.

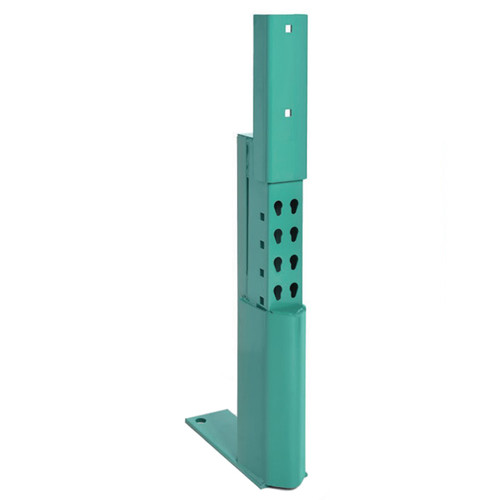

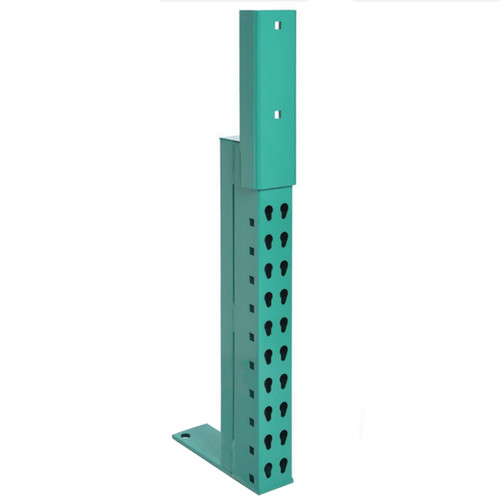

The 36" Heavy-Duty S Column Repair Kit provides a permanent, heavy-duty repair solution designed specifically for 3" x 4-5/8" teardrop columns. Constructed from high-strength 10-gauge steel and finished with a durable powder coat, this repair kit reinforces vulnerable rack bases against future forklift impacts.
Featuring an all-bolted installation powered by Grade 5 hardware and rigid 1/4"-thick steel connection channels, this kit completely eliminates the need for field welding. The included oversized 8" x 8" x 3/8" footplate anchors firmly into concrete with two 3/4" diameter anchors, locking the column in place to eliminate twisting and movement.
Save with The Safety Source
At The Safety Source, we keep our prices low without compromising the quality our customers expect from us. Place your order through our secure website with confidence. If you would like assistance with your order, please call us at 1-866-688-7233 or message us online now. Get the best deal with The Safety Source.
Product Features:
- No-Weld Bolt-On Design: Quick, safe installation using Grade 5 hardware and 1/4" steel connection channels.
- Impact-Resistant Construction: Formed from robust 10-gauge steel to absorb heavy industrial wear.
- Anti-Twist Stability: Anchors directly through an 8" x 8" x 3/8" footplate using two 3/4" anchors for maximum rigidity.
- Long-Lasting Protection: High-quality powder-coated finish resists chipping, scratching, and corrosion.
- Teardrop Compatibility: Fits standard 3" x 4-5/8" teardrop profile columns.
- Installation Requirement Note: The outer cuff requires 10" of clearance above the seat height and 4" of clearance below the seat height for proper fitment during installation.
Downloads:
- Material:
- Steel
- Height:
- 36"
- Overall Kit Height:
- 45" Tall
- Column Profile Compatibility:
- 3" x 4-5/8" Column
- Punch Pattern:
- Teardrop
- Package Size:
- Each
- Material Thickness:
- 10 Gauge
- Connection Channels:
- 1/4" Thick Steel
- Hardware Grade:
- Grade 5 (All-Bolted Installation)
- Footplate Dimensions:
- 8" x 8" x 3/8"
- Anchoring System:
- Installs with (2) 3/4" Diameter Anchors
- Finish:
- Green High-Quality Powder Coat
- Cuff Clearance Requirements:
- 10" Above Seat Height / 4" Below Seat Height
