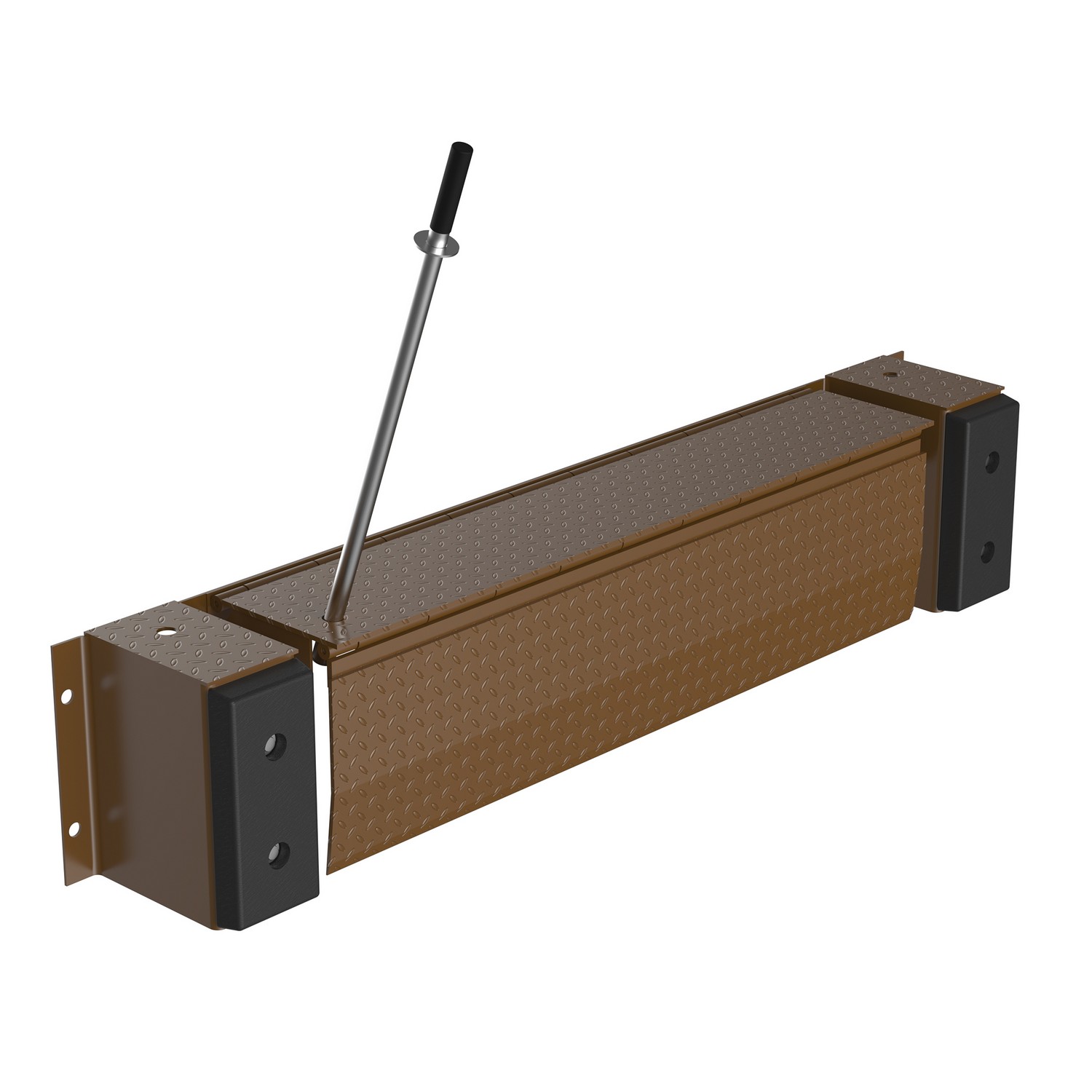

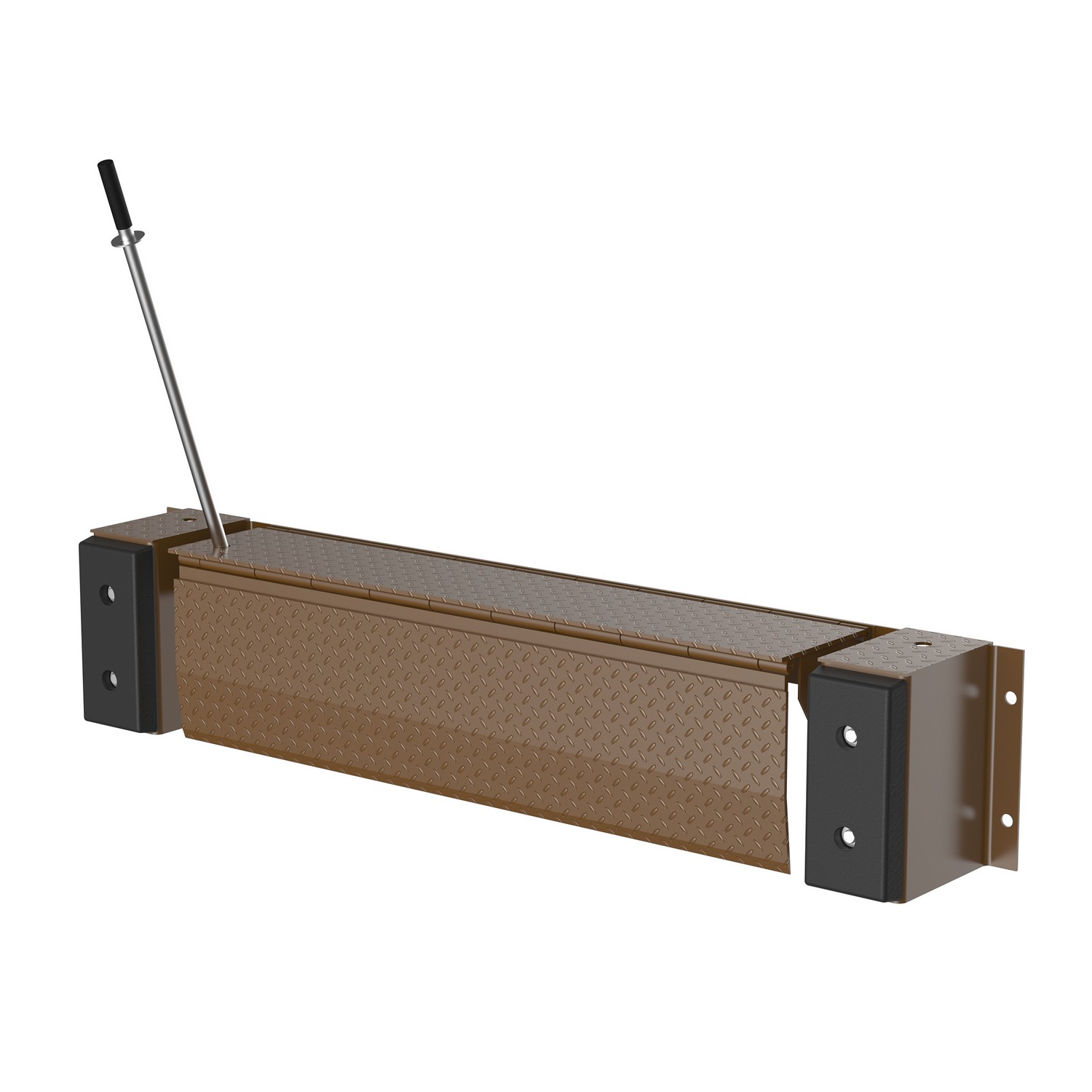

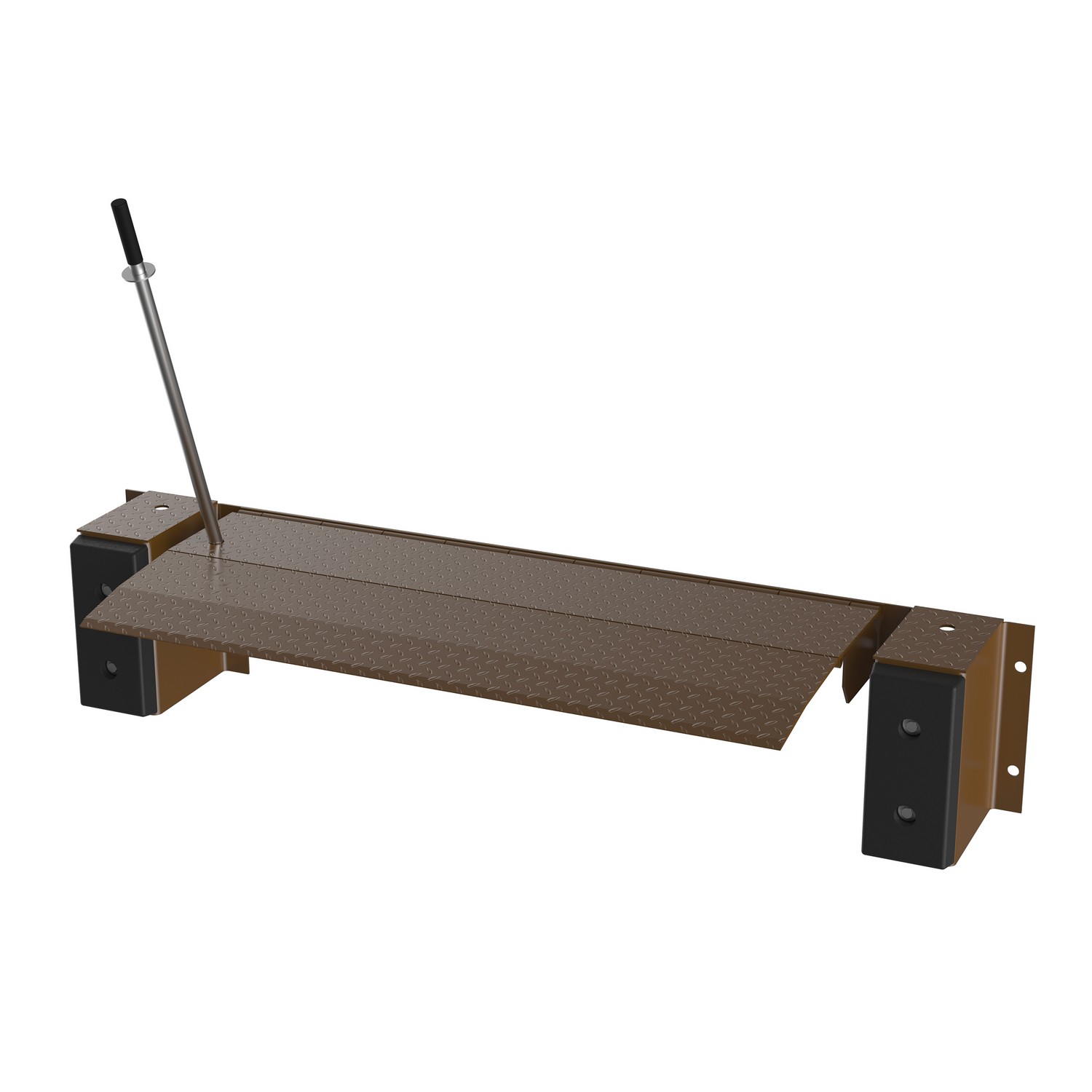

The Vestil FM-2066 Mechanical Edge-O-Dockleveler is a durable dock-accessory designed to bridge the gap between a loading dock and a trailer without requiring a recessed concrete pit. Installed directly to a dock face, it operates with a simple mechanical motion: insert the actuation handle into the inner lip pocket, pull toward the floor, then push forward to place the lip on the truck bed. When the trailer pulls away, the lip retracts automatically behind the bumper face, keeping the face clear for continued operations. This model is rated for a uniform 20,000 lb capacity and is suited for docks where the approach height is at least 48 inches and the service range extends 5 inches above and below the dock. Its ramping length is 29 inches, with a longer 36-5/8 inch ramp option available to accommodate different grade conditions, and it features a 66-inch ramp width to align with standard trailer decks. The unit includes bumpers and installation guidance, and its rugged steel tread-plate design provides a stable, non-slip surface during use.
The Edge-O-Dock leveler is designed for quick installation to a dock edge, eliminating the need for a concrete recess and reducing installation time. Solid steel construction supports reliable, long-term performance in demanding loading-dock environments. The bumper system measures 8 inches wide by 2 inches high and 18 inches tall, with a combined bumper projection (including rubber bumper) of 15 inches, ensuring protective clearance and impact absorption at the dock edge. This model is specified for 20,000 pounds of capacity and is packaged as a single unit per order. Depending on site grade, customers may choose the standard ramping length of 29 inches or the extended ramp to better accommodate slopes and docking scenarios.
Features:
- Easy install mounts to a steel dock edge without a concrete recess
- Tread plate design provides positive non-slip gripping action
- Solid steel construction for long-lasting reliability
- 20,000 lb uniform capacity for heavy loads
- Service range 5 in. above and 5 in. below dock
- 66 in. ramp width with 29 in. ramping length
- Compact edge-mount design with 15 in. bumper projection
- Color:
- Brown
- Material:
- Steel
- Uniform Capacity (lb.):
- 20000
- Service range above dock (in.):
- 5
- Service range below dock (in.):
- 5
- Bumper Width (in.):
- 8
- Bumper Length (in.):
- 2
- Bumper Height (in.):
- 18
- Ramp Width (in.):
- 66
- Ramping Length (in.):
- 29
- Bumper projection including rubber bumper (in.):
- 15
- Package Size:
- Each
