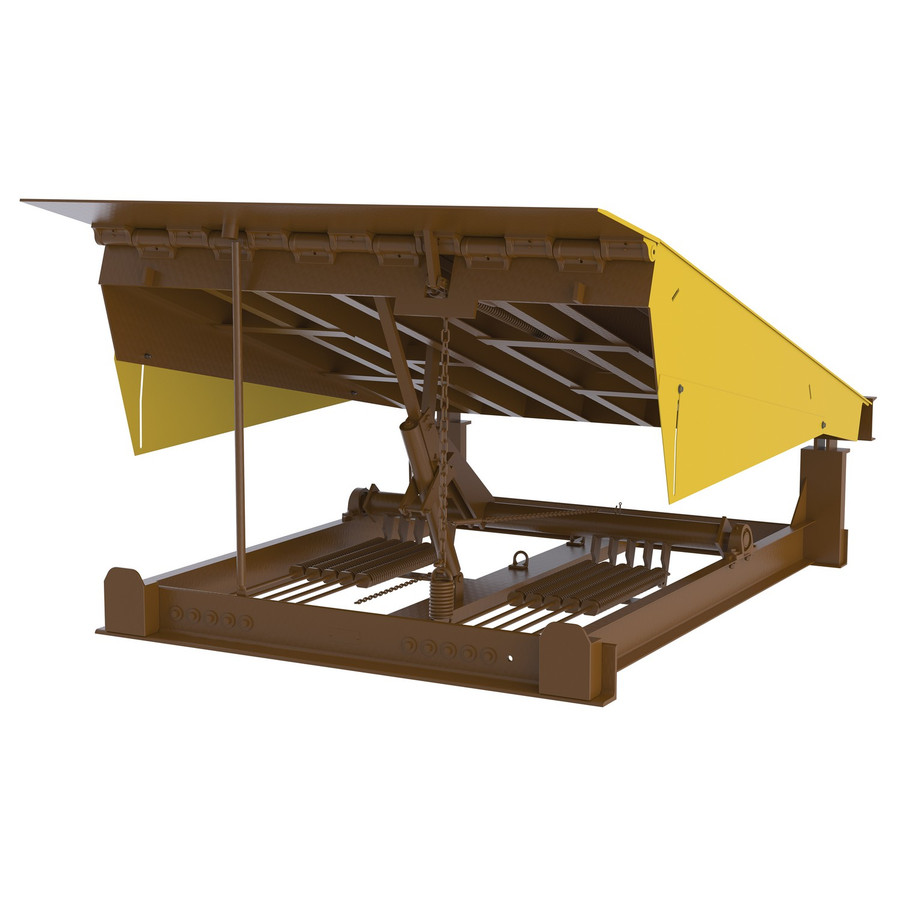

The Vestil RR-66-20 is a pit-mounted mechanical dockleveler designed to facilitate efficient trailer loading and unloading at loading docks. This 20,000-pound capacity unit uses a spring-operated mechanical pull-chain for smooth, low-maintenance operation and is engineered to minimize upkeep while providing reliable performance in demanding material-handling environments. The deck is constructed from steel checkered plate, offering a durable stepping surface and added traction, with a 6-inch structural steel understructure for solid support. The deck sides and toe guards feature a brown/yellow finish, and the unit includes two laminated bumpers to help cushion impact at the dock edge during cycles.
Key features that support safe, repeatable use include telescopic side-mounted toe guards that cover the opening throughout the service range, helping to contain debris and provide consistent protection as the lip moves through its travel. The lip thickness is 1/2 inch and lip length is 16 inches, with a 1/4 inch deck thickness and an impressive deck plate PSI of 55,000, highlighting the unit’s rugged construction for industrial dock environments. The service range above and below the dock is 12 inches each, enabling compatibility with a range of trailer heights and dock configurations while maintaining a compact footprint within the pit.
This model complies with recognized standards applicable to dock equipment, including CS 202-56, OSHA, and ANSI MH14.8, which helps buyers verify alignment with common safety and performance expectations for loading docks. Typical applications include facilities requiring a reliable, mechanically operated dockleveler that remains within a pit installation, providing a stable transition between dock and trailer. Please confirm fitment for your specific dock depth and trailer height, as well as any local or site-specific requirements before installation or use.
Features:
- Pit-mounted dockleveler for loading dock operations
- Spring-operated mechanical pull-chain for easy operation
- Telescopic side-mounted toe guards cover full service range
- 20,000 lb uniform capacity
- Steel checkered plate deck for durability
- Lip thickness 1/2 inch; lip length 16 inches
- Service range 12 inches above and 12 inches below dock
- Color:
- Brown/Yellow (Deck Sides & Toe Guards)
- Material:
- Steel
- Uniform Capacity (lb.):
- 20,000
- Steel checkered plate deck (in.):
- 1/4
- Steel checkered plate deck (psi):
- 55000
- Structural steel support (in.):
- 6
- Lip Thickness (in.):
- 1/2
- Lip Length (in.):
- 16
- Service range above dock (in.):
- 12
- Service range below dock (in.):
- 12
- Package Size:
- Each
