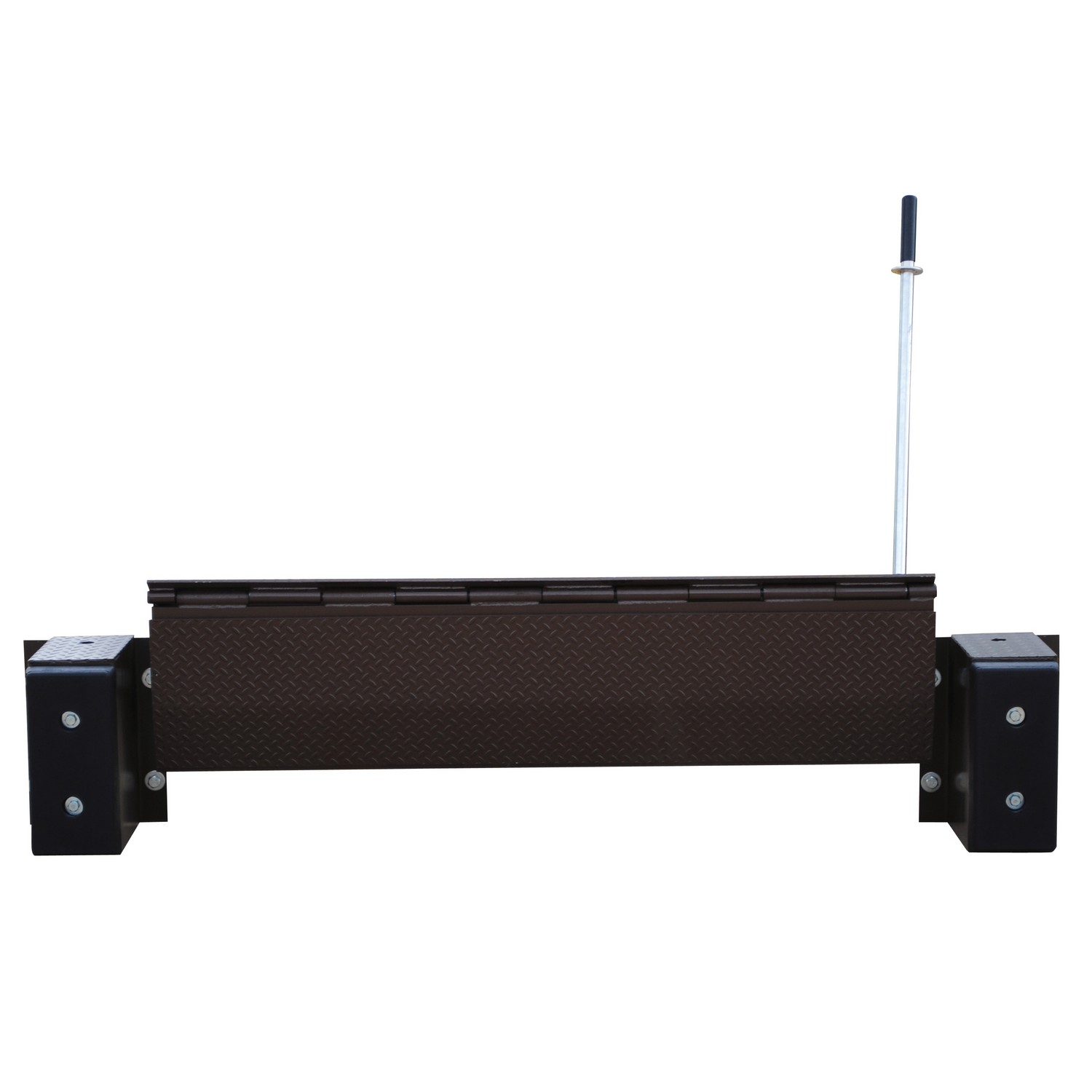

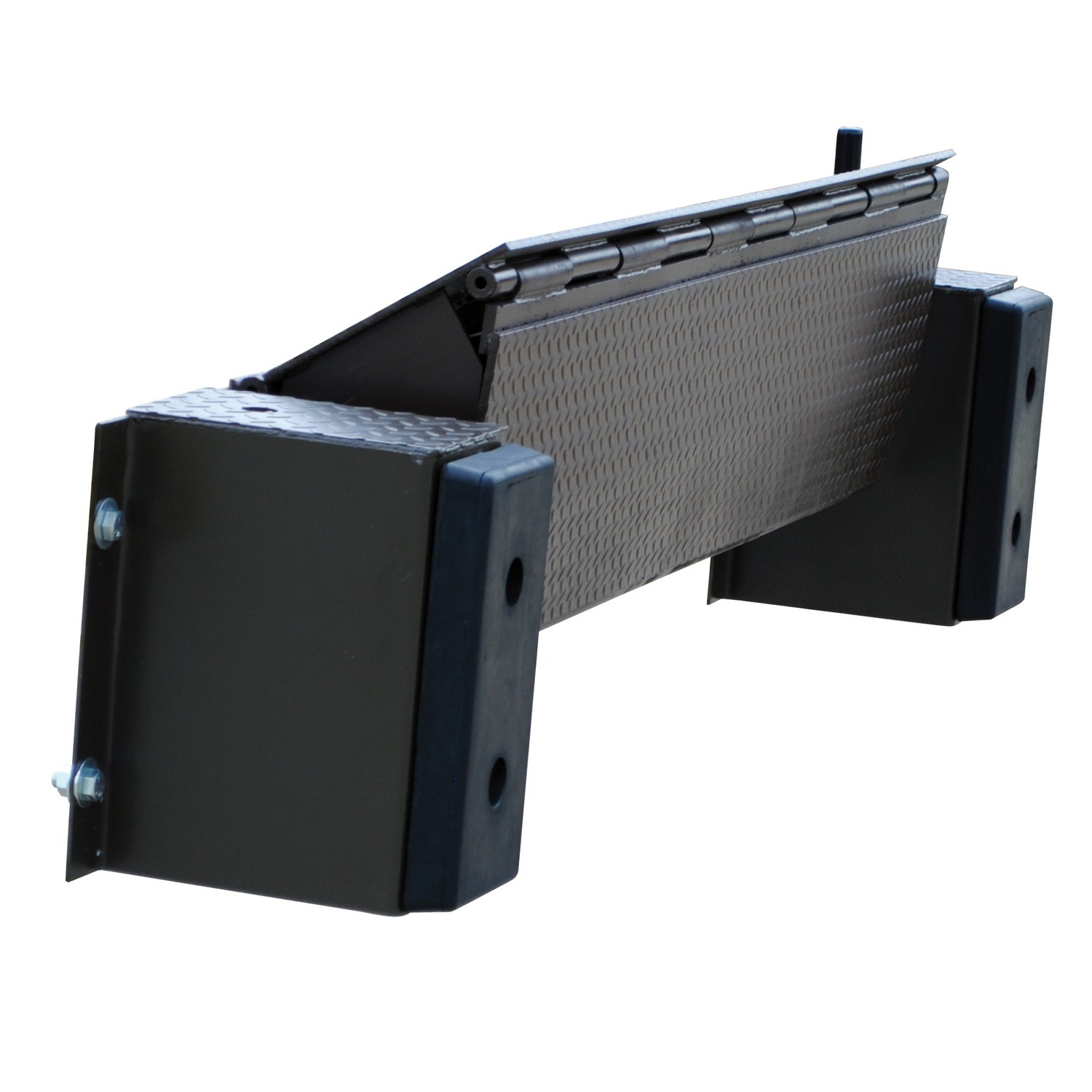

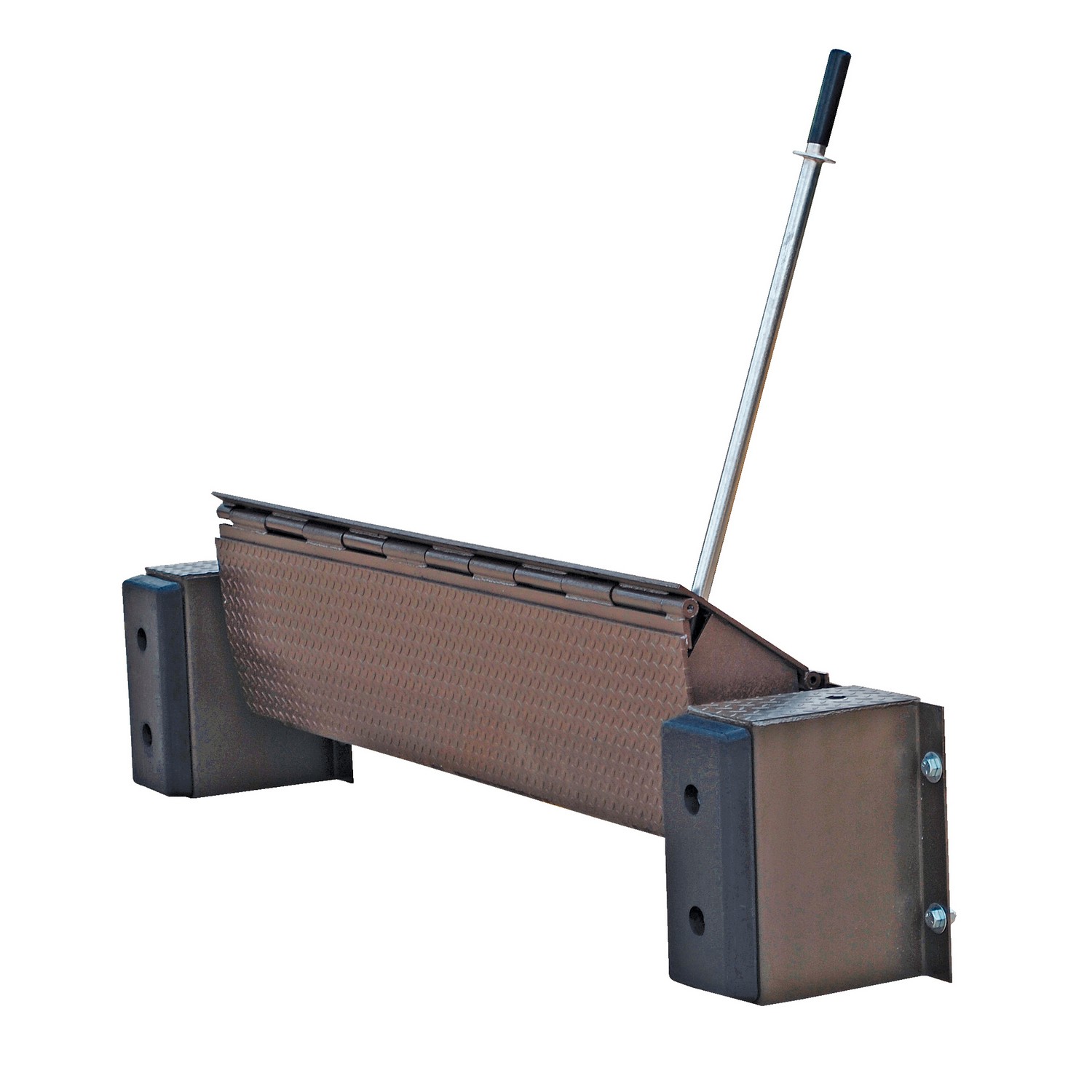

The Vestil FM-2072 Mechanical Edge-O-Dock leveler is a dock-attached solution designed to bridge the gap between a loading dock and trailers without requiring a concrete recess. This unit permanently mounts to the face of the dock and uses a manually operated edge-lip that automatically retracts behind the bumper as the trailer departs. The 72-inch ramp provides a broad platform with a standard ramp length of 29 inches, while a longer ramping option (36-5/8 inches) is available for certain site grade adjustments. The design incorporates a tread plate surface to deliver positive, non-slip traction during loading and unloading operations. Built from solid steel, it delivers robust service for demanding material-handling environments and is supplied with bumpers and installation instructions to simplify on-site setup.
Key installation and usage considerations include the need for a steel dock edge or approach ramp to enable proper mounting and operation. The Edge-O-Dock is suitable for facilities where docks average a 5-inch service range above or below the dock face, with bumper components sized to 8 inches wide, 2 inches in bumper length, and 18 inches in bumper height. The unit supports a uniform capacity of 20,000 pounds, making it appropriate for heavy loads and frequent trailer turnover. As with any edge-operated dock leveler, verify dock height and trailer bed alignment prior to operation, and follow the included installation instructions to ensure safe and effective performance.
Features:
- Easy install mounts to any loading dock with a steel dock edge
- Tread plate design offers a positive non-slip grip
- Does not require a concrete recess for installation
- Solid steel construction provides long-lasting reliability
- Uniform 20,000 lb capacity
- 72 inch ramp length for smooth bridge transfer
- Suitable for service range above and below dock (5 in each)
- Color:
- Brown
- Material:
- Steel
- Uniform Capacity (lb.):
- 20000
- Service range above dock (in.):
- 5
- Service range below dock (in.):
- 5
- Bumper Width (in.):
- 8
- Bumper Length (in.):
- 2
- Bumper Height (in.):
- 18
- Ramp Width (in.):
- 72
- Ramping Length (in.):
- 29
- Bumper projection including rubber bumper (in.):
- 15
- Package Size:
- Each
