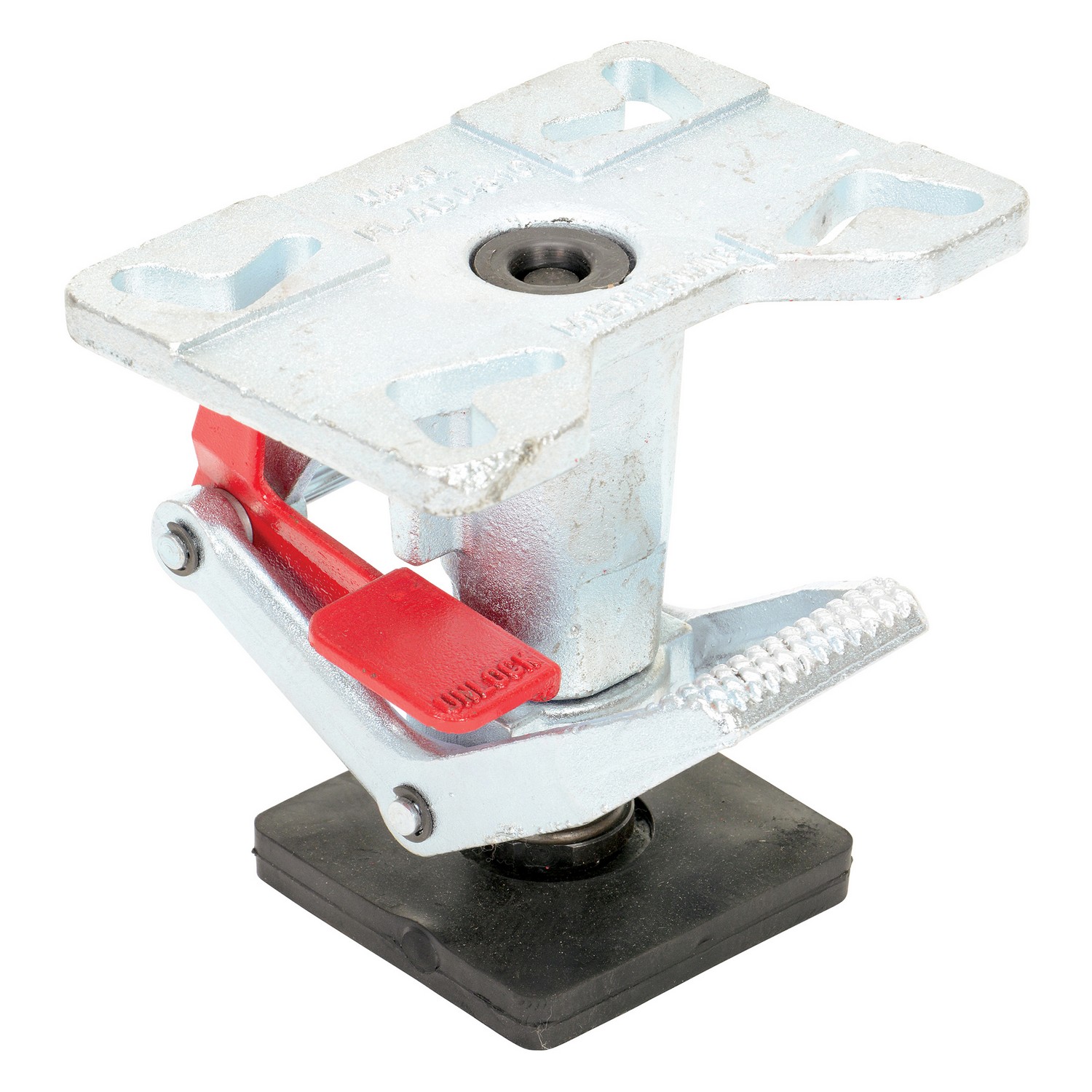

The Vestil FL-ADJ-810 Floor Lock is an adjustable-height locking device designed to secure carts and equipment by immobilizing their wheels. It features a height-adjustable footpad that accommodates various caster heights, promoting uniform locking force and easier, more ergonomic operation during engagement and release. This adjustability helps maintain effective performance as components wear over time, while the bottom pad’s suction-cups provide added grip for stability on smooth floors.
Constructed from heavy-duty cast steel, the floor lock is built to withstand demanding industrial environments and continuous use. The pedal release is positioned for convenient visibility and access, supporting safer, more intuitive operation. The combination of robust materials and the adjustable height range helps ensure that the lock engages securely with wheels of different heights and caster configurations.
When selecting this floor lock, consider applications involving carts or wheeled equipment with caster sizes in the 6 to 8 inch range and floors suitable for suction-cup traction on the bottom pad. The unit’s dimensions include a top-plate width of 4-1/2 inches and a length of 6-1/2 inches, with mounting provisions sized for 3/8 inch bolts and a 3/8 inch mounting plate thickness. The product is shipped as a single unit (package size: Each) and is sized to extend from 8-1/4 to 11-1/2 inches in raised height, or 6-1/4 to 9-1/2 inches when retracted, accommodating various floor-to-caster heights.
Features:
- Uniform locking and safer unlocking force for ergonomic operation
- Heavy-duty cast steel construction for durability
- Visible, convenient pedal release location
- Bottom pad with suction-cups for extra grip
- Adjustable height: 8-1/4 to 11-1/2 inches
- Top plate: 4-1/2 inch width x 6-1/2 inch length
- For caster sizes: 6 to 8 inches
- Color:
- Silver
- Material:
- Heavy-duty Cast Steel
- Used with Caster Size (in. - in.):
- 6 to 8
- Extended Height (in. to in.):
- 8-1/4 to 11-1/2
- Retracted Height (in. to in.):
- 6-1/4 to 9-1/2
- Top Plate Width (in.):
- 4-1/2
- Top Plate Length (in.):
- 6-1/2
- Mounting Bolt Diameter (in.):
- 3/8
- Mounting Plate Thickness (in.):
- 3/8
- Package Size:
- Each
