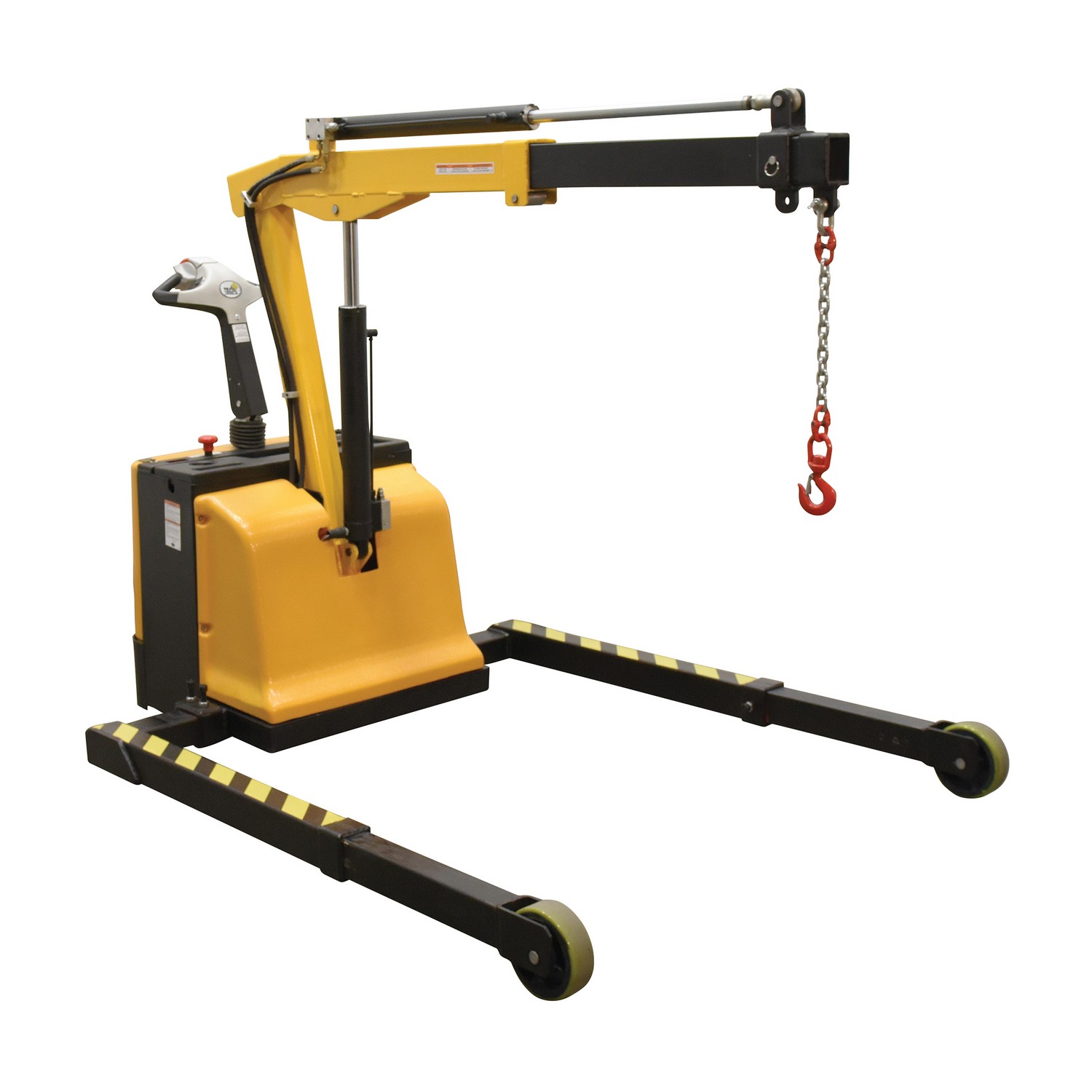

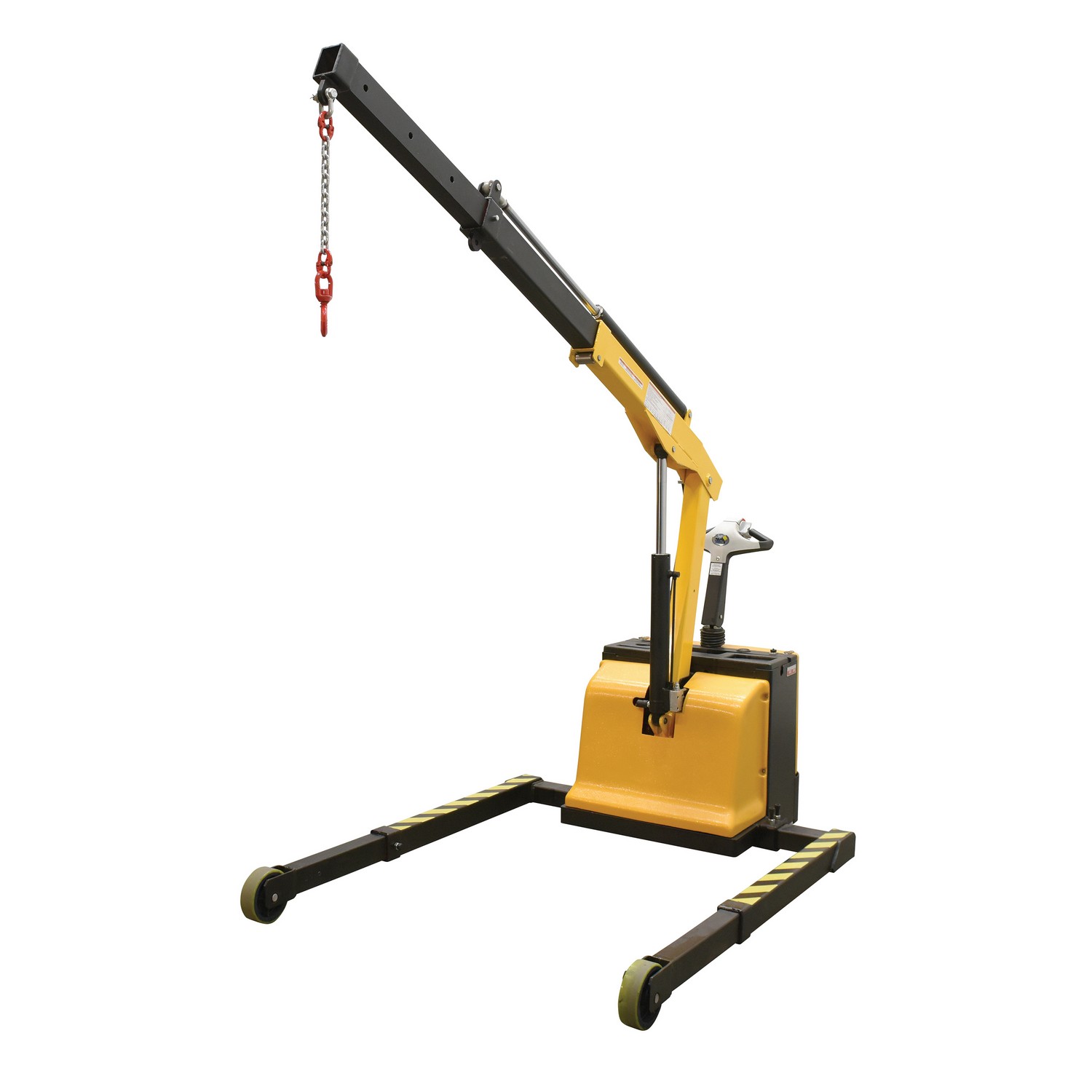

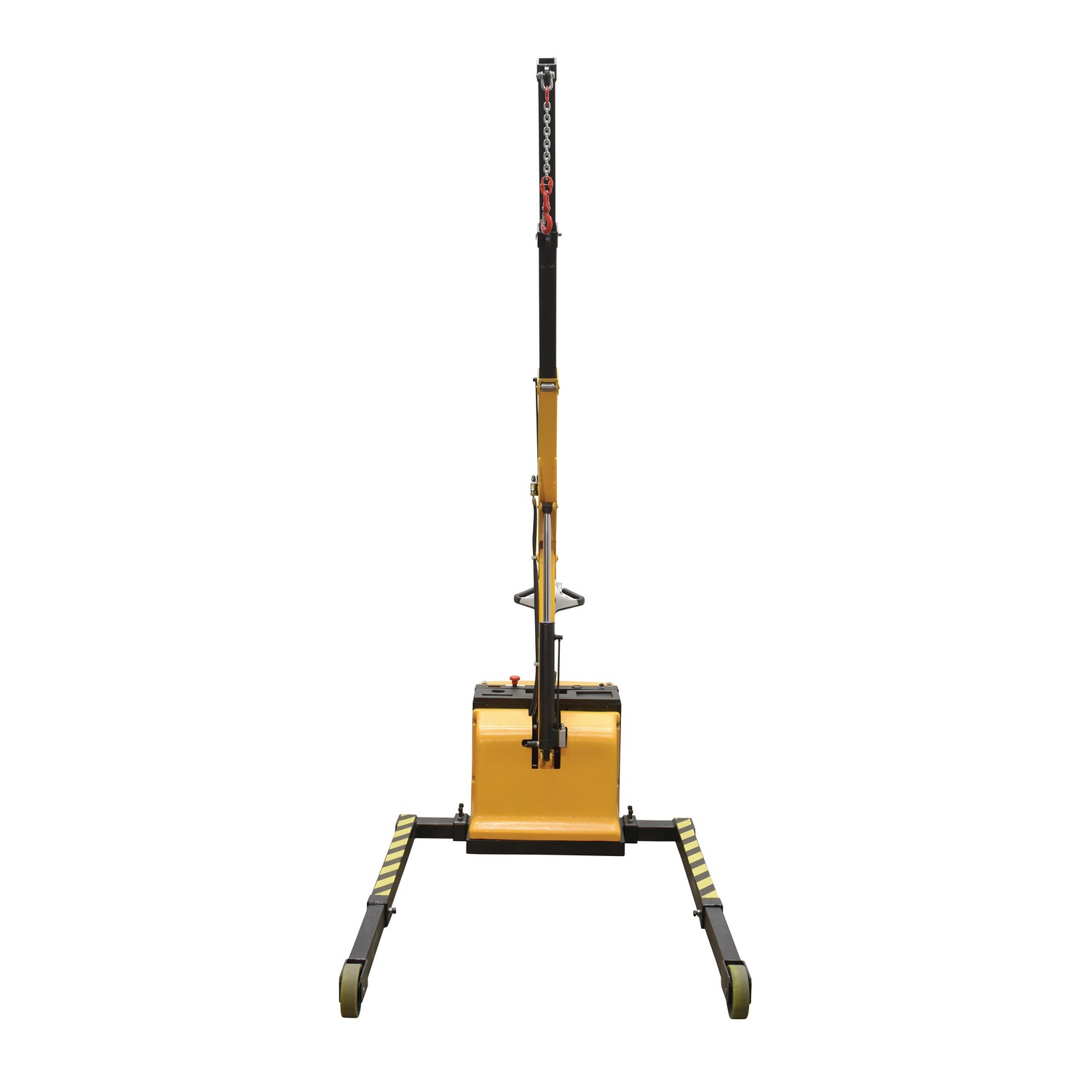

Vestil VESEPFC-25-AA is a fully powered electric floor crane designed to move heavy loads quickly and efficiently in warehouses, trailers, or other industrial settings. With push-button raise and lower operation and an ergonomic control handle offering throttle with infinite forward and reverse speeds, this unit enables precise, controlled material handling. The crane features a high-torque DC drive and lift system, a rigid hook with safety latch, and an electromagnetic disc brake with an automatic dead-man function, contributing to steadier operation and an added layer of safety during transfers. The built-in battery system includes two 12V batteries, a 24V/12A charger, and an onboard gauge and charger, supporting extended use between charges. The crane travels on poly-on-steel wheels, with steer and load capabilities, and an adjustable leg design to accommodate varying load and workspace layouts. A notable safety feature is the proprietary emergency reverse function with an accompanying belly switch; the system will reverse if activated, then require reset after a brief timeout to resume normal operation. This unit is not recommended for use on inclined surfaces beyond a 4-degree decline, and the safety electronics are designed to disengage the drive if the emergency reverse is held too long, emphasizing operator protection during operation.
Features:
- Fully-powered floor crane for quick material movement
- Fingertip RAISE and LOWER buttons for operator convenience
- Safety belly reverse button enhances worker safety
- Infinite forward/reverse speeds via an easy throttle
- Two 12V batteries with 24V/12A charger for extended use
- Adjustable leg width and multiple lift heights for versatility
- Color:
- Yellow
- Material:
- Steel
- Uniform Capacity Retracted (lb.):
- 2,500
- Uniform Capacity Battery Extended (lb.):
- 1300
- Uniform Capacity Manually Extended (lb.):
- 600
- Legs adjustable width (in.):
- 43-3/4 to 58-11/16
- Manual Extension Holes (qty.):
- 3
- Space Between Holes (in.):
- 8
- Maximum Height - Crane Extended (in.):
- 110
- Maximum Length - Legs Extended (in.):
- 103-1/8
- Lift Range - Retracted (in.):
- 44-1/4
- Lift Range - Extended (in.):
- 97
- Drive Motor:
- DC24V / 0.7KW
- Lift Motor:
- DC24V / 2KW
- Battery (quantity):
- 2
- Battery Type:
- 12V
- Battery Charger:
- 24V / 12 amp
- Battery Charger Power Cord:
- 115V AC
- Minimum Service Per Charge (hrs.):
- 8
- Lift Speed w/o Load (sec):
- 0.7
- Lift Speed w/ Load (sec):
- 0.5
- Lower down speed w/o load (sec):
- 0.25
- Lower down speed w/ Load (sec):
- 0.75
- Travel speed w/o load (mph):
- 2.8
- Travel speed w/load (mph):
- 2.18
- Drive Wheel Size (in):
- 10 x 3.15
- Rear Caster quantity:
- 2
- Rear Caster Size (in):
- 3 x 1.375
- Front/Leg Caster quantity:
- 2
- Front/Leg Caster Size (in):
- SELF-DUMP HOPPER HD 2.5 CU YD 6K BLUE
- Wheel/Caster Material:
- Poly-On-Steel
- Lowered Height at 44.25 in Reach 2500 lbs. (in):
- 22
- Raised Height at 44.25 in Reach 2500 lbs. (in):
- 70
- Lowered Height at 70 in Reach 1300 lbs. (ins):
- 12.5
- Raised Height at 70 in Reach 1300 lbs. (ins):
- 90
- Lowered Height at 97 in Reach 600 lbs. (ins):
- 4
- Raised Height at 97 in Reach 600 lbs. (ins):
- 110
- Package Size:
- Each
