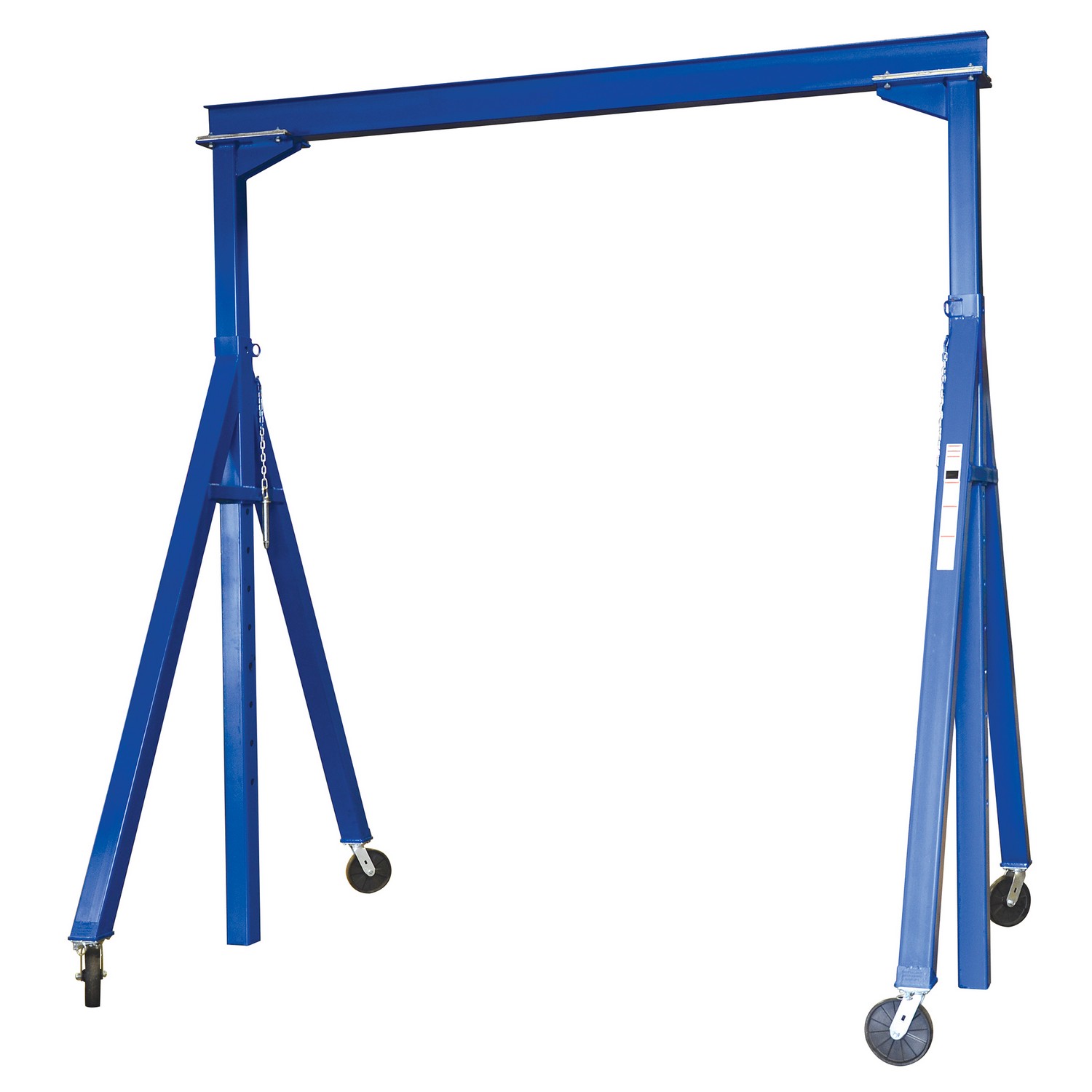

The Vestil AHS-6-15-14 is a heavy-duty, adjustable-height steel gantry crane designed to transport and position materials along an overhead work area. Its 6,000-lb uniform capacity supports medium-duty material handling tasks, while the 15-foot overall I-beam length and 10-1/8-inch I-beam height provide ample reach and clearance for a range of shop and warehouse layouts. The crane frame is built from welded steel and finished in blue, with four phenolic casters that offer 4-way positioning locks, enabling changes in travel direction (forward, back, left, right) without reconfiguring the setup. Height adjustment occurs in 6-inch increments, allowing the beam to be raised or lowered to suit ceiling heights and ergonomic requirements. The unit is described as suitable for semi-permanent or permanent installations and is designed to be used with a hoist and trolley that are ordered separately.
This model emphasizes versatility in repositioning and alignment, offering a design that accommodates ergonomic and cost-conscious adjustments on the fly. The caster configuration supports precise placement and stable handling during movement, with each caster featuring locking capability to secure the unit in the desired orientation before lifting or travel. The usable under-beam height and base dimensions are specified to help determine fit within a given workspace and to ensure that there is adequate clearance for elevated loads and surrounding equipment. While the hoist and trolley are not included, understanding the crane’s base and travel features helps buyers plan for the appropriate add-ons and integration with existing overhead lifting equipment.
Features:
- Heavy-duty welded steel construction for long lasting use
- Four phenolic casters with four-way position locks for safe positioning
- Easy adjustable height compatible with fork truck or overhead lifting device
- 6,000 lb uniform capacity for reliable lifting
- All units comply with CMAA and ANSI specifications
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 6,000
- Overall I-Beam Length (ft.):
- 15
- Overall I-Beam Height (in.):
- 10-1/8
- I-Beam Flange Width (in.):
- 4
- Under I-Beam Usable Height (in.):
- 103 to 169
- Base Width (in.):
- 89-3/4
- Caster Quantity/Diameter/Width (in.):
- (4) 8 x 3
- Caster Style:
- Swivel (4) Position Locking Casters
- Caster Material:
- Phenolic
- Usable Travel Distance (in.):
- 149-3/4
- Increment Height Adjustment (in.):
- 6
- Package Size:
- Each
