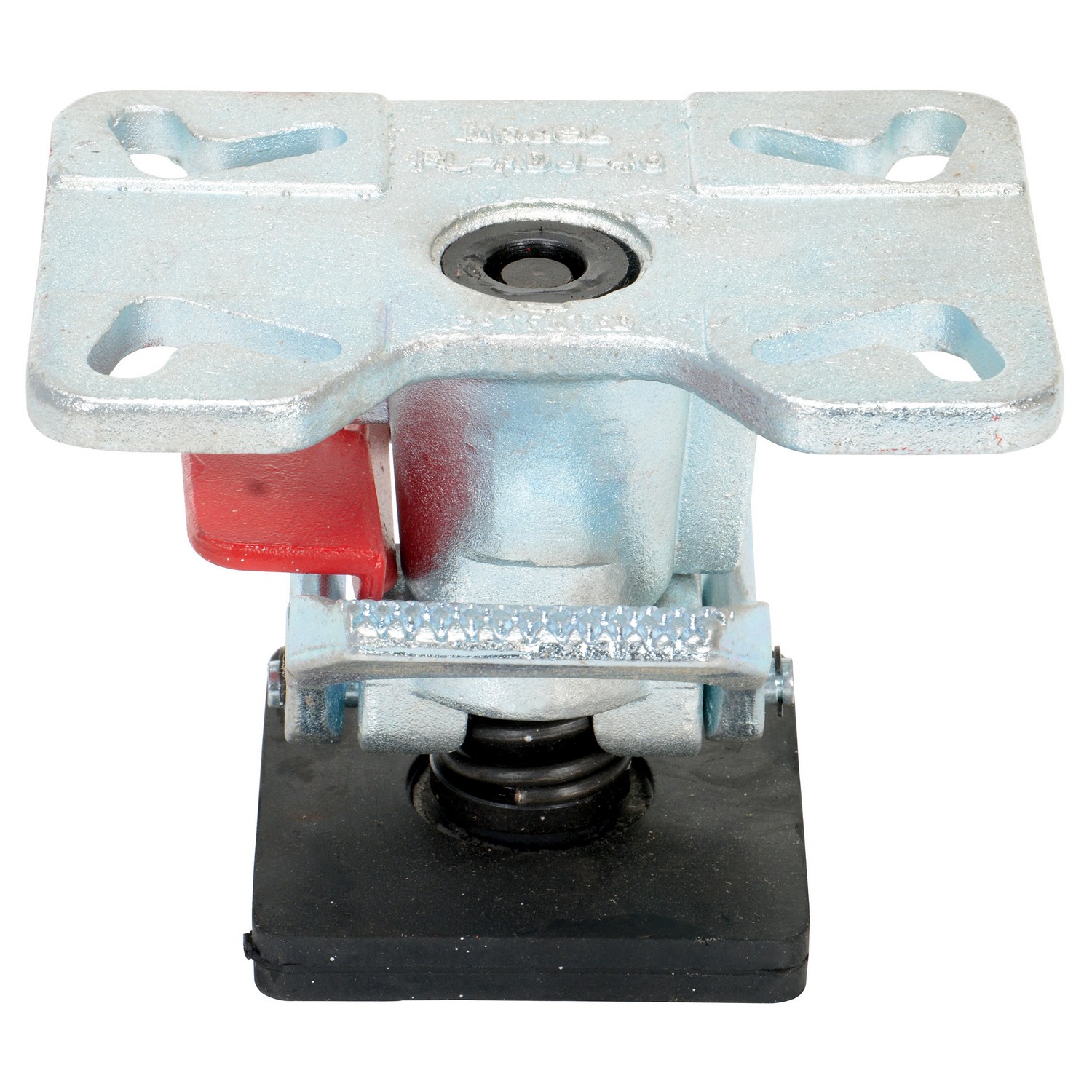

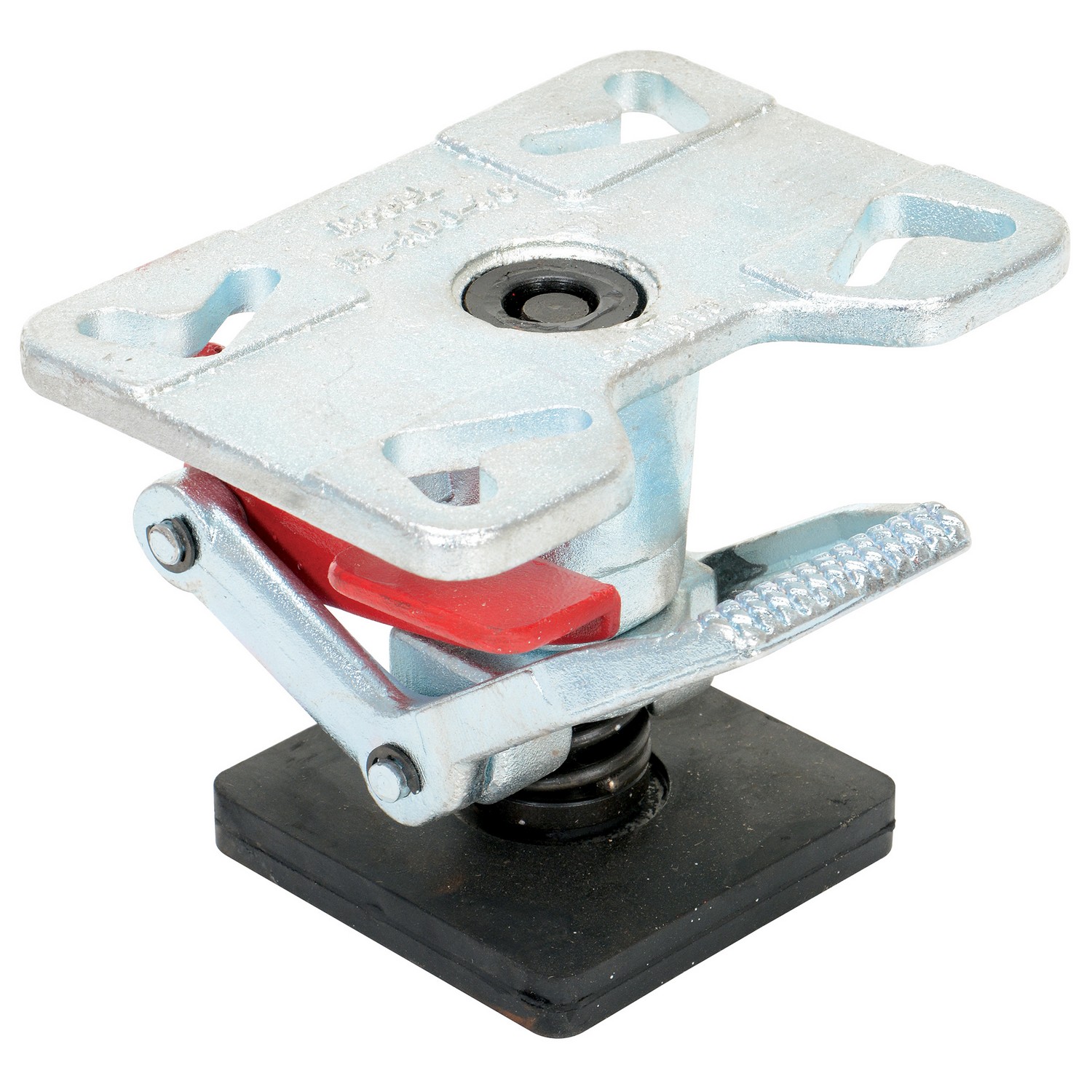

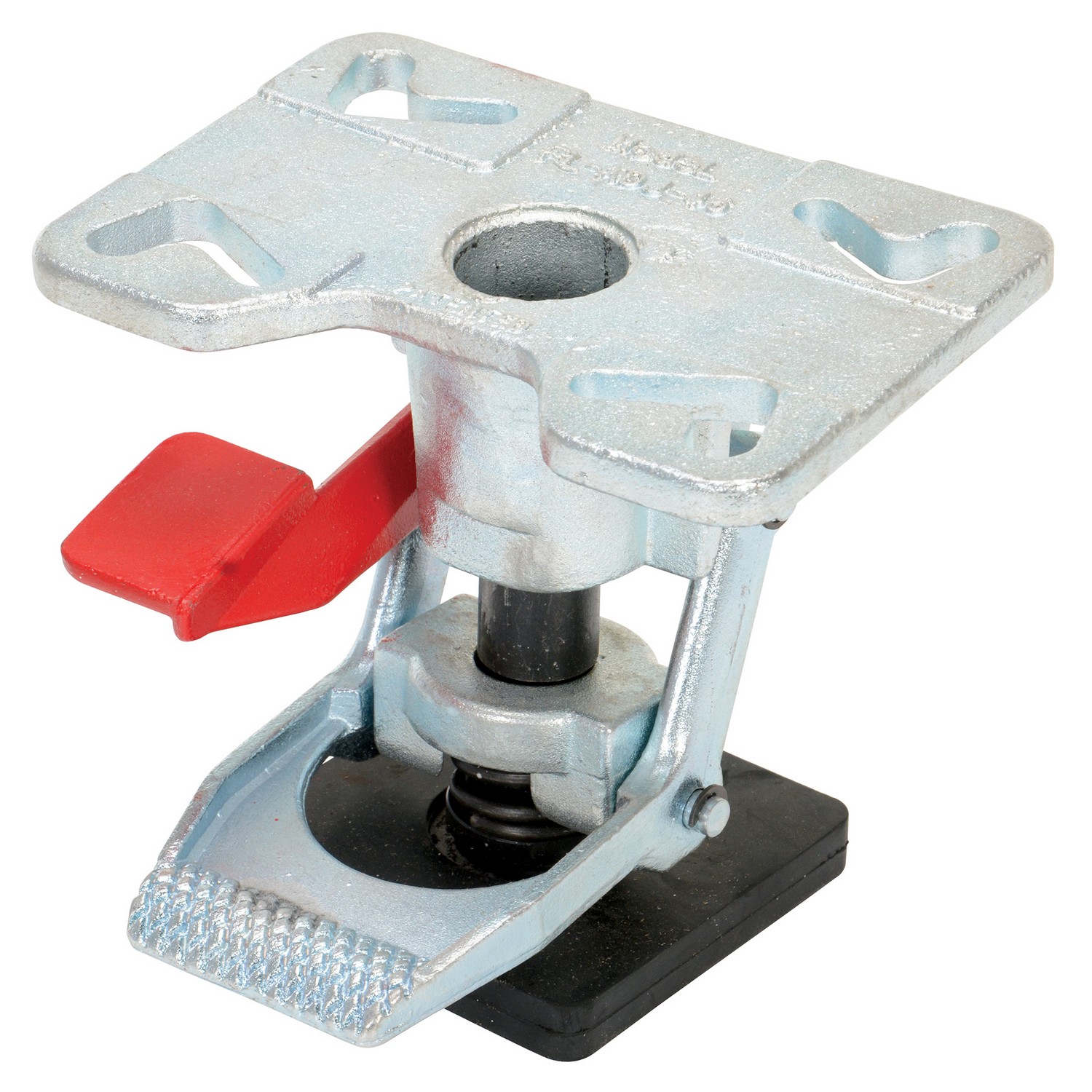

The Vestil VESFL-ADJ-46 Floor Lock is a heavy-duty locking solution designed for carts and equipment with caster heights in the 4 to 6 inch range. This adjustable-height floor lock provides a consistent locking and unlocking force, which supports safer, more ergonomic operation during use and maintenance. The unit relies on a robust cast steel body to resist years of traffic and loading, while the bottom pad’s adjustable height mechanism enables uniform engagement as components wear or when cart configurations change. An important usability feature is the pedal release, positioned for easy access and visibility to reduce missteps during operation. The bottom pad includes suction-cup elements to enhance initial grip on smooth floor surfaces, helping to minimize shifting before the lock engages.
Designed to accommodate extended heights from 6-1/4 to 8 inches and retracted heights from 5-1/2 to 7-1/4 inches, this floor lock is tailored for environments where carts require quick, reliable immobilization. The top plate dimensions—4-1/2 inches by 6-1/2 inches—along with a mounting bolt diameter of 3/8 inch and a 3/8 inch mounting plate thickness, define the footprint and mounting compatibility typical for medium-duty floor-lock applications. Each unit ships individually, making it straightforward to replace or upgrade in maintenance cycles. For installation and use, ensure mounting surfaces are prepared to receive the 3/8 inch bolts and that the cart’s caster height falls within the stated range to guarantee proper engagement and release.
Features:
- Uniform locking and safer unlocking force for ergonomic operation
- Heavy-duty cast steel construction for durability
- Visible, convenient pedal release location
- Bottom pad with suction cups for extra grip
- Extended height: 6-1/4 to 8 inches
- Retracted height: 5-1/2 to 7-1/4 inches
- Top plate: 4-1/2 in. x 6-1/2 in.
- Color:
- Silver
- Material:
- Heavy-duty Cast Steel
- Used with Caster Size (in. - in.):
- 4 to 6
- Extended Height (in. to in.):
- 6-1/4 to 8
- Retracted Height (in. to in.):
- 5-1/2 to 7-1/4
- Top Plate Width (in.):
- 4-1/2
- Top Plate Length (in.):
- 6-1/2
- Mounting Bolt Diameter (in.):
- 3/8
- Mounting Plate Thickness (in.):
- 3/8
- Package Size:
- Each
