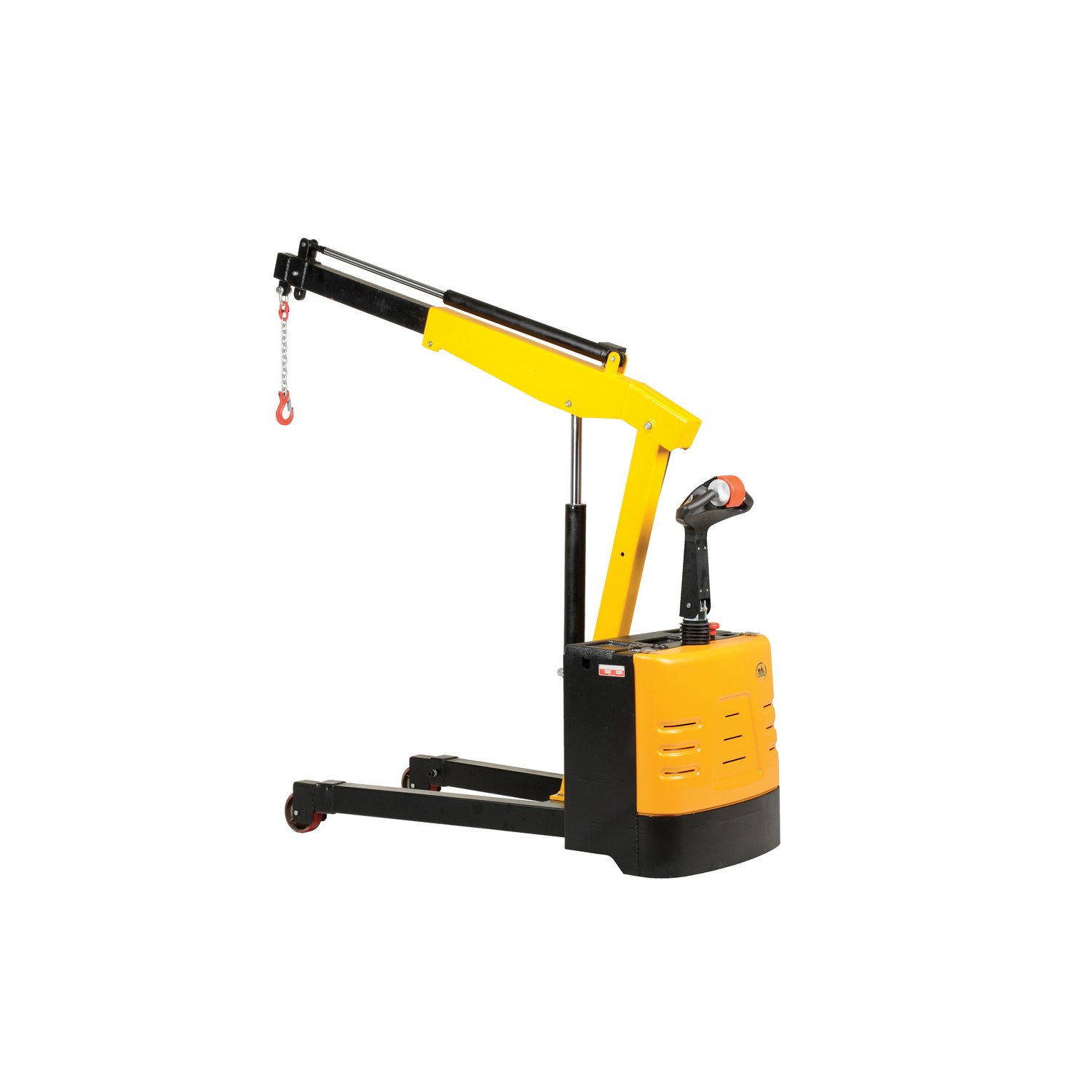

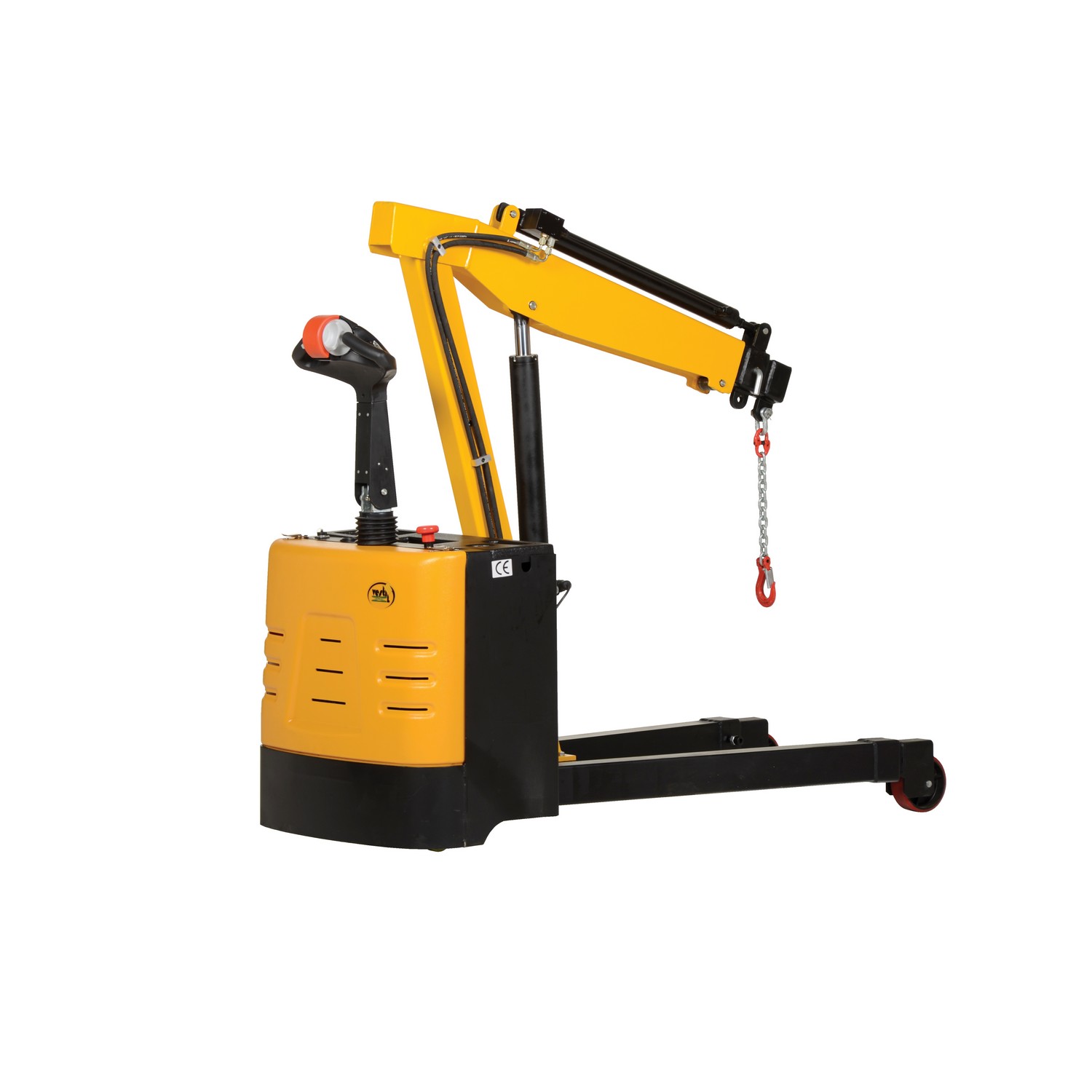

Vestil VESEPFC-25 is a fully powered electric floor crane designed to move medium-to-heavy loads quickly and with minimal manual effort. It features two 12V batteries, a 24V lift motor, and a 24V drive motor, enabling smooth, push-button raising and lowering of loads and controlled travel. The unit’s electric operation is complemented by a high-torque drive system, an electromagnetic disc brake with automatic dead-man protection, and an ergonomic handle with throttle control and independent lift/lower buttons for precise positioning. A notable safety feature is the proprietary emergency reverse function, which safely reverses direction if engaged, and then requires a reset to restore normal operation, helping protect operators during maneuvering in confined spaces or trailers. The crane is built on a steel framework with poly-on-steel wheels for movement, and it includes an integral battery charger and battery level gauge for ongoing operation in typical warehouse settings.
With 2,500 lb maximum retracted capacity and extended capacities listed for different configurations, this model supports both stationary reach and extended-legged setups to suit varying work envelopes. The design includes adjustable leg length and a range of lifting heights, from compact retracted stows to extended reach, to accommodate loading, unloading, and placement tasks in warehouses, trailers, and other material-handling environments. Its compact dimensions like a 23-inch width between legs when retracted and 28 inches when extended, combined with ride-on capability, help it navigate aisles and trailers where space is limited. Operators should note that use on inclines is not recommended, and a maximum 4-degree decline is advised for safe operation.
This product is suitable for facilities seeking an electric powered solution to reduce manual lifting and improve material flow. It ships as a single unit and is specified with a 115V power cord for charging, with a defined minimum service per charge to support routine shifts. Proper maintenance includes monitoring battery charge levels and using the built-in safety controls and emergency features as described to maintain safe, productive operation.
Features:
- Fully-powered floor crane for quick material movement
- Fingertip RAISE and LOWER controls for easy operation
- Safety belly reverse button enhances worker safety
- Infinite speed forward/reverse throttle for precise control
- DC24V drive and lift motors with 2x 12V batteries
- Low-profile lift and travel speeds improve efficiency
- Color:
- Yellow
- Material:
- Steel
- Uniform Capacity Retracted (lb.):
- 2,500
- Uniform Capacity Battery Extended (lb.):
- 1300
- Uniform Capacity Manually Extended (lb.):
- 600
- Width Between Legs/Wheels - Retracted (in.):
- 23
- Width Between Legs/Wheels - Extended (in.):
- 28
- Manual Extension Holes (qty.):
- 3
- Space Between Holes (in.):
- 8
- Maximum Height - Crane Extended (in.):
- 110
- Max. Length - Legs Extended (in.):
- 103-1/8
- Lift Range - Retracted (in.):
- 44-1/4
- Lift Range - Extended (in.):
- 94
- Drive Motor:
- DC24V / 0.7KW
- Lift Motor:
- DC24V / 2KW
- Battery (quantity):
- 2
- Battery Type:
- 12V
- Battery Charger:
- 24V / 12 AMP
- Battery Charger Power Cord:
- 115V AC
- Minimum Service Per Charge (hrs.):
- 8
- Lift Speed w/o Load (seconds):
- 0.7
- Lift Speed w/ Load (seconds):
- 0.5
- Lower down speed w/o load (seconds):
- 0.25
- Lower down speed w/ Load (seconds):
- 0.75
- Travel speed w/o load (mph):
- 2.8
- Travel speed w/load (mph):
- 2.18
- Drive Wheel Size Diameter/Width (in.):
- 10 x 3.15
- Rear Caster (quantity):
- 2
- Rear Caster Size Diameter/Width (in.):
- 3 x 1.375
- Front/Leg Caster (quantity):
- STEEL PIPE SAFETY BOLLARD 36 X 4-1/2 IN
- Front/Leg Caster Size (in.):
- 6 x 2
- Wheel/Caster Material:
- Poly-On-Steel
- Lowered Height at 43.5 in Reach 2500 lbs. (in.):
- 22
- Raised Height at 43.5 in Reach 2500 lbs. (in.):
- 70
- Lowered Height at 70 in Reach 1300 lbs. (ins.):
- 12.5
- Raised Height at 70 in Reach 1300 lbs. (in.):
- 90
- Lowered Height at 94 in Reach 600 lbs. (ins.):
- 4
- Raised Height at 94 in Reach 600 lbs. (ins.):
- 110
- Package Size:
- Each
