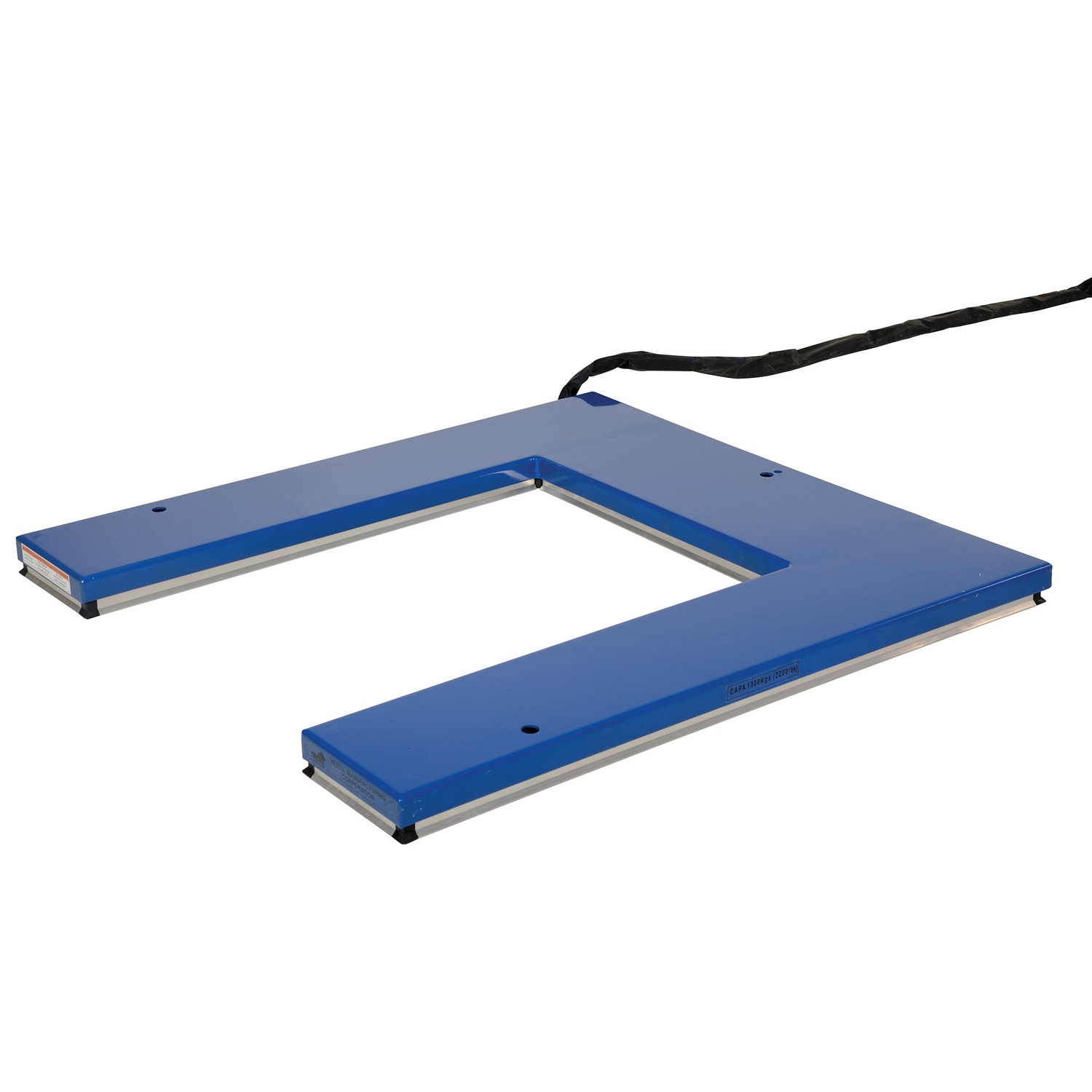

The Vestil VESEHU-2 is a low-profile electric lift table designed around a distinctive U-type platform that provides an open center. This design allows a pallet jack to position a load directly onto the deck, enabling efficient material handling in tight spaces where traditional lift tables may not fit. The unit is powered by a remote power pack equipped with a pressure relief valve to help prevent overloading and a flow control valve to regulate lowering speed, contributing to controlled, safe operation. A UP/DOWN control box with a push button interface raises and lowers the platform, while safety features such as toe guards, velocity fuses in the hydraulic cylinders, maintenance props, and an emergency stop button on the control box add an extra layer of on-site protection. The remote power pack is covered to shield the motor from dust and debris, supporting longer component life in industrial environments.
Constructed from steel and finished in blue, the VESEHU-2 has a listed uniform capacity of 2000 lb. The platform dimensions and reach are suited for standard pallet handling tasks, with a deck inside width of 29-3/4 in and an inside length of 41-1/4 in. The raised height is approximately 33-1/2 in, and the lift speed is 16.8 seconds, powered by a 1.5 HP motor at 115 V single-phase, with a 24 V control box supply for the control circuitry. These specifications guide planners in matching the lift table to typical pallet loads and workspace clearances, ensuring that the equipment can be positioned and operated within the available footprint. The model is configured as a standalone unit with all major control features on the remote power pack and control box for straightforward operation in busy environments.
Features:
- Low profile U-type lift table with open center for pallet trucks
- 2,000 lb uniform capacity
- Pressure relief valve and flow control valve for safe operation
- UP and DOWN push button controls
- Toe guards, velocity fuse, safety props, and emergency stop
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 2000
- Raised Height (in.):
- 33-1/2
- Voltage/Phase:
- 115/Single
- Control Box Voltage:
- 24
- Deck Inside Width (in.):
- 29-3/4
- Deck Inside Length (in.):
- 41-1/4
- Remote Power Unit Width (in.):
- 14-3/4
- Remote Power Unit Length (in.):
- 26-3/4
- Remote Power Unit Height (in.):
- 9-1/2
- Lift Speed (sec.):
- 16.8
- Horse Power (HP):
- 1.5
- Package Size:
- Each
