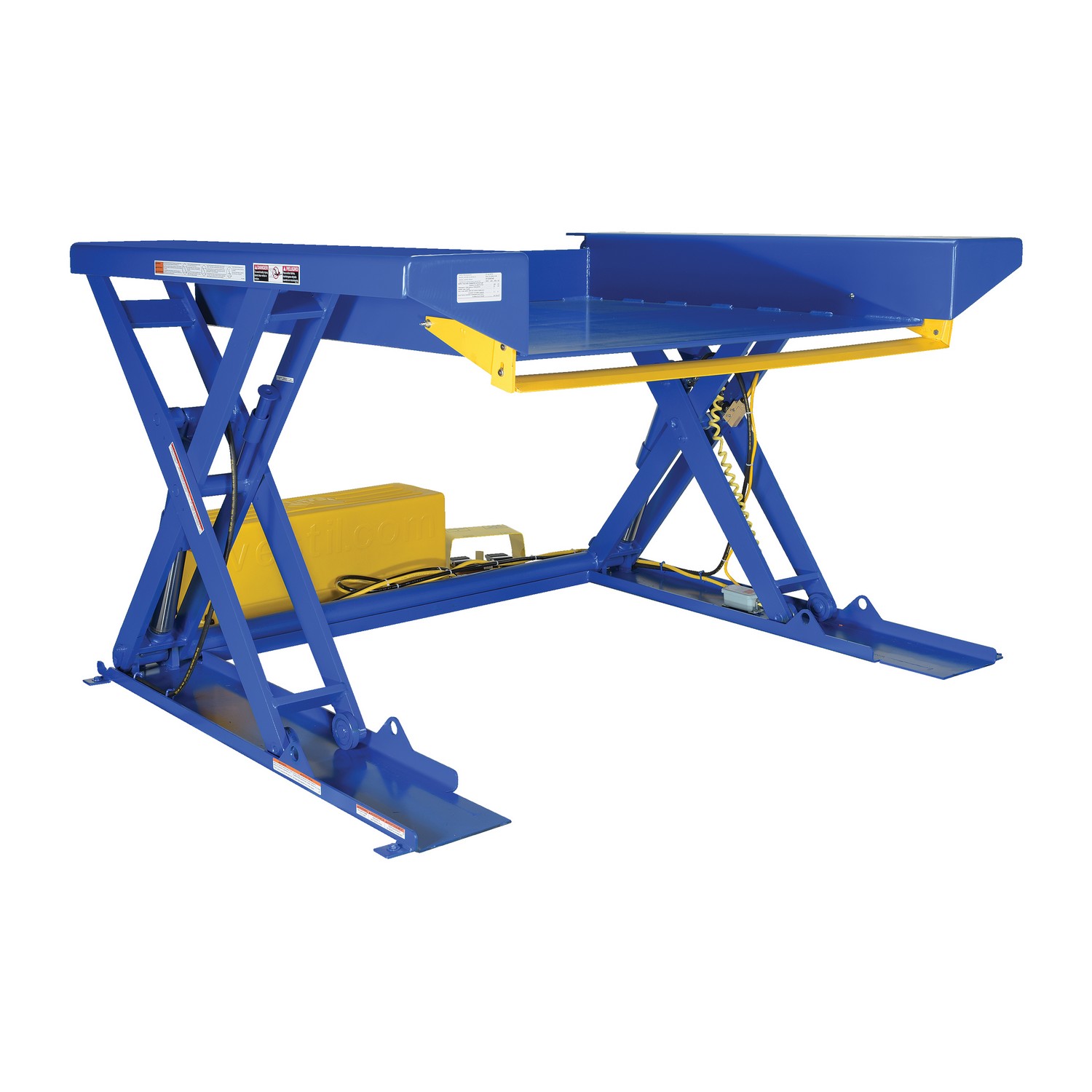

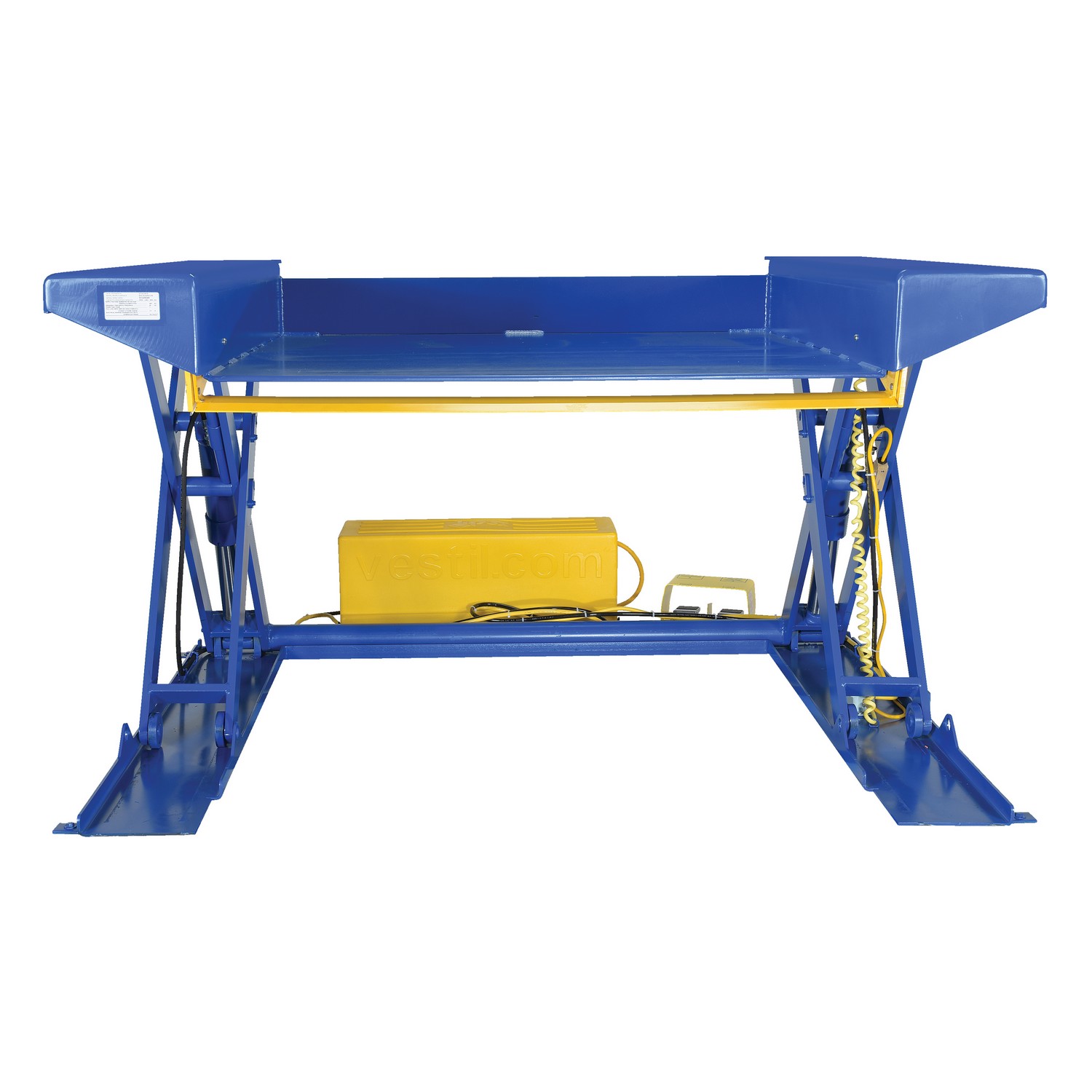

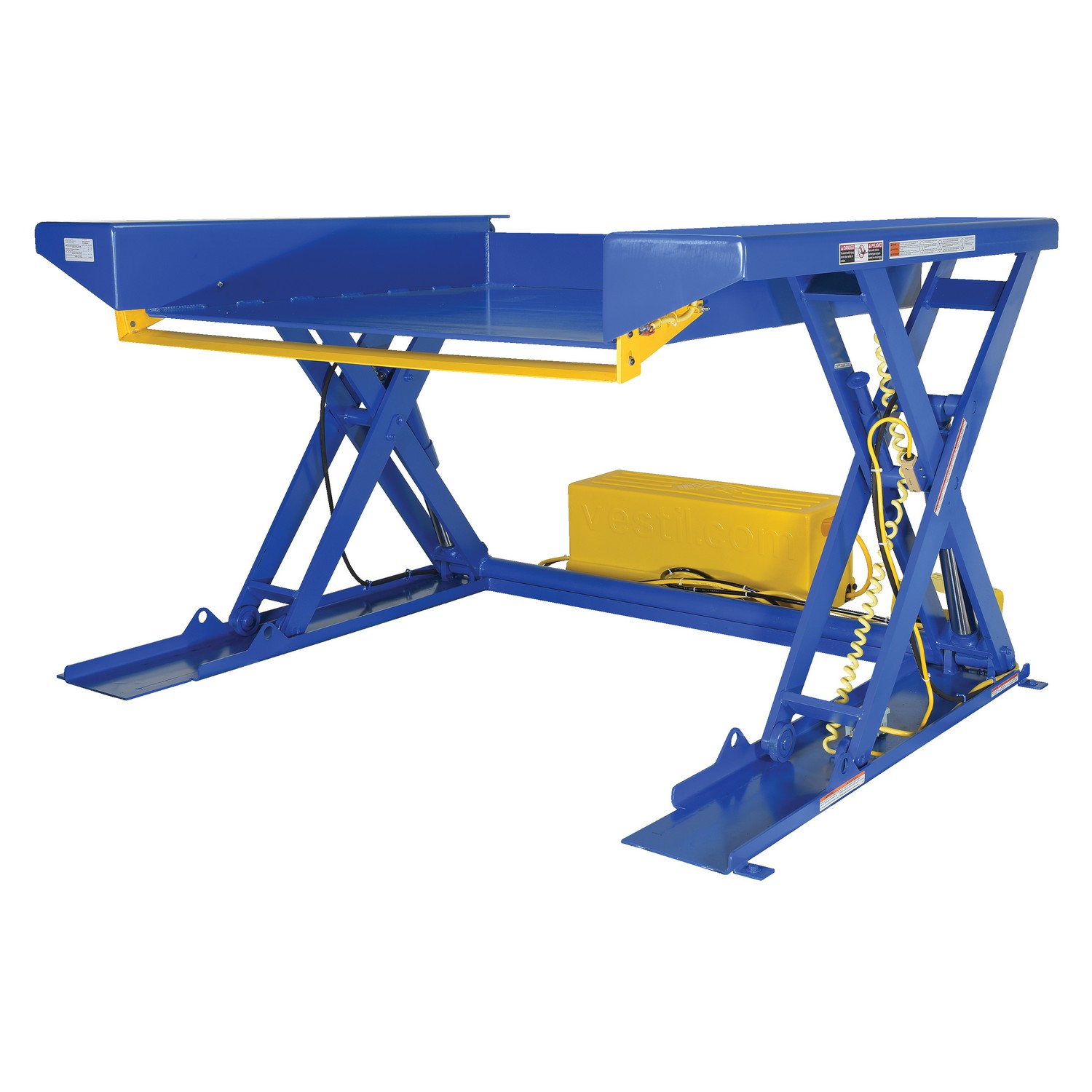

The Vestil Ground Lift Scissor Table is a mobile hydraulic lift designed for material handling when a forklift isn’t available. It provides a stable platform to elevate pallets or loads to an ergonomic working height, helping reduce bending and reaching during loading, unloading, and transfer tasks. The table’s compact platform dimensions (52 in. wide by 51-1/2 in. long) offer ample room for palletized loads, while a 2,000 lb uniform capacity supports a range of light to medium-duty applications. The unit features a totally enclosed 3,000 psi hydraulic system and a 2 HP motor, with a 60 Hz, 3-phase power supply at 460V, ensuring reliable lifting performance under demanding shop conditions. A remote power unit allows installation up to eight feet from the table, providing flexible layout options in a busy workspace. The design includes practical safety and control elements such as an entry-side electric toe guard to protect pinch points during lowering, a velocity fuse to help preserve height in the event of hose or fitting failure, a foot control operation, and an upper travel limit switch to stop the table at maximum height and minimize motor wear. Optional features include accordion skirting for added containment and protection around the lifted load.
Features:
- Pallets loaded onto the platform and raised to a working height
- Entry-side electric toe guard protects pinch points
- Velocity fuse maintains platform height for controlled lifts
- Remote power unit can be located up to eight feet away from the table
- 2,000 lb uniform capacity for material handling
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 2000
- Platform Width (in.):
- 52
- Platform Length (in.):
- 51-1/2
- Raised Height (in.):
- 36
- Platform Lowered Height (in.):
- 1/2
- Hydraulic Component Rating (psi):
- 3000
- Motor Horsepower:
- 2
- Hertz:
- 60
- Voltage:
- 460
- Phase:
- 3
- Remote Power Unit Length (in.):
- 32-1/2
- Remote Power Unit Width (in.):
- 12
- Remote Power Unit Height (in.):
- 12-1/2
- Package Size:
- Each
