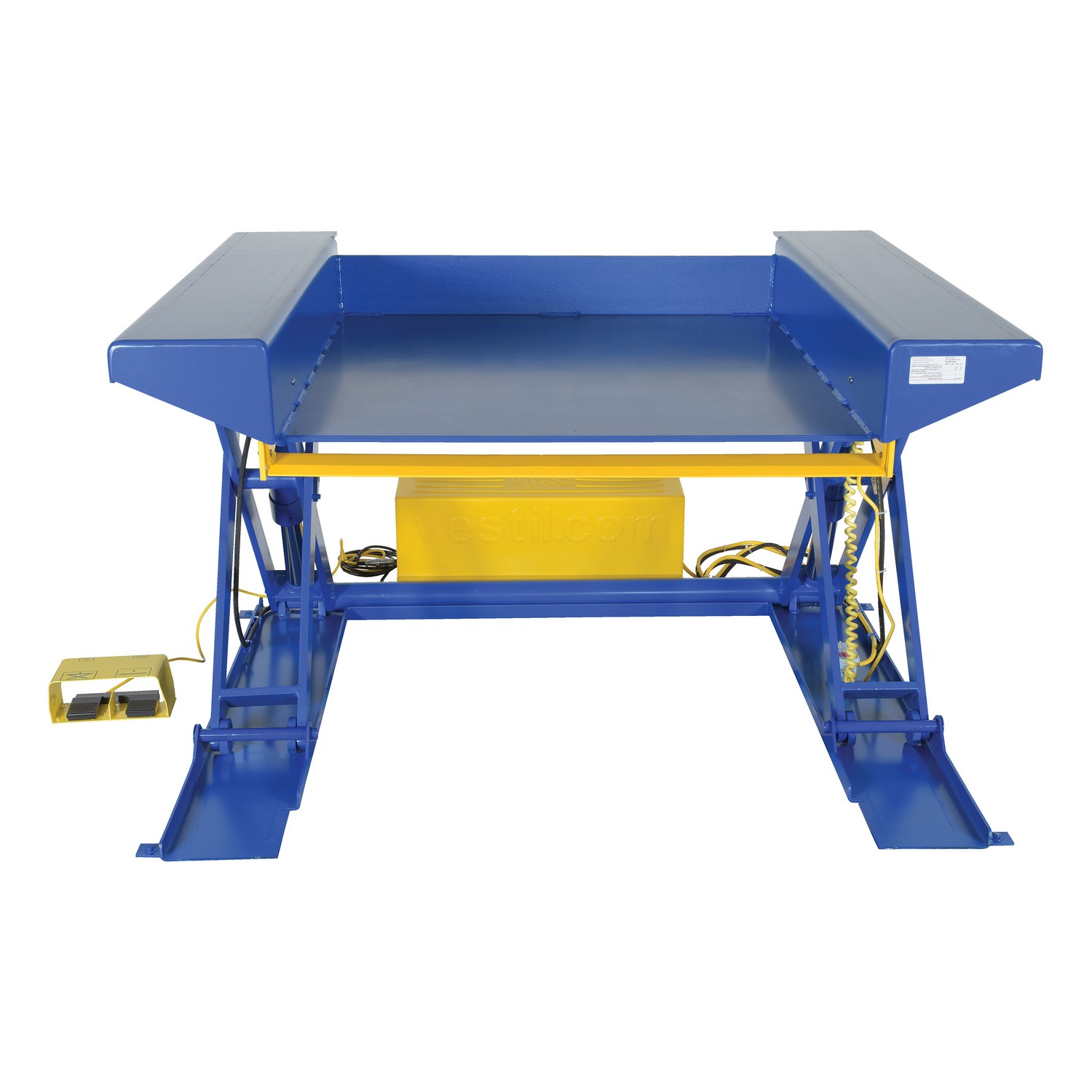

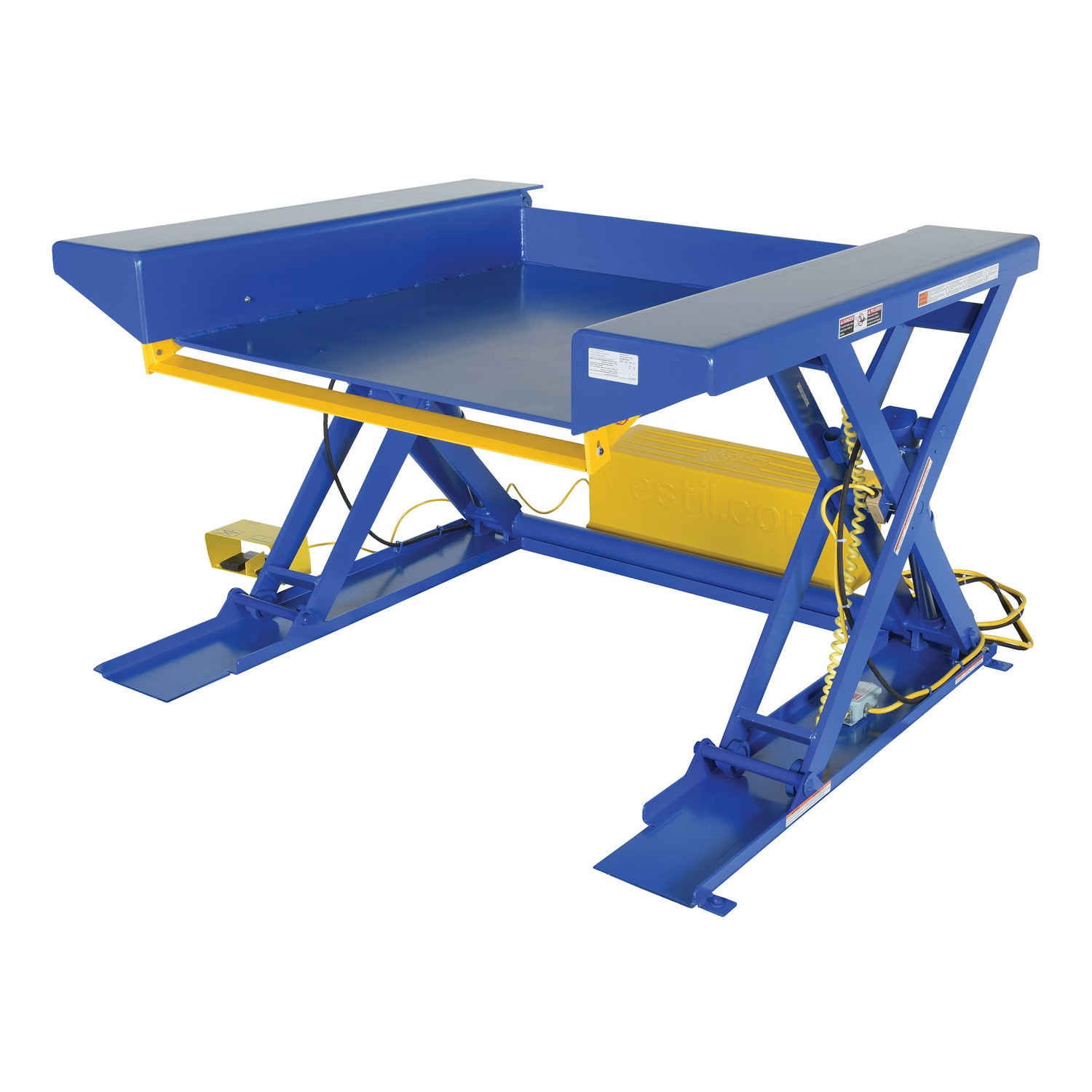

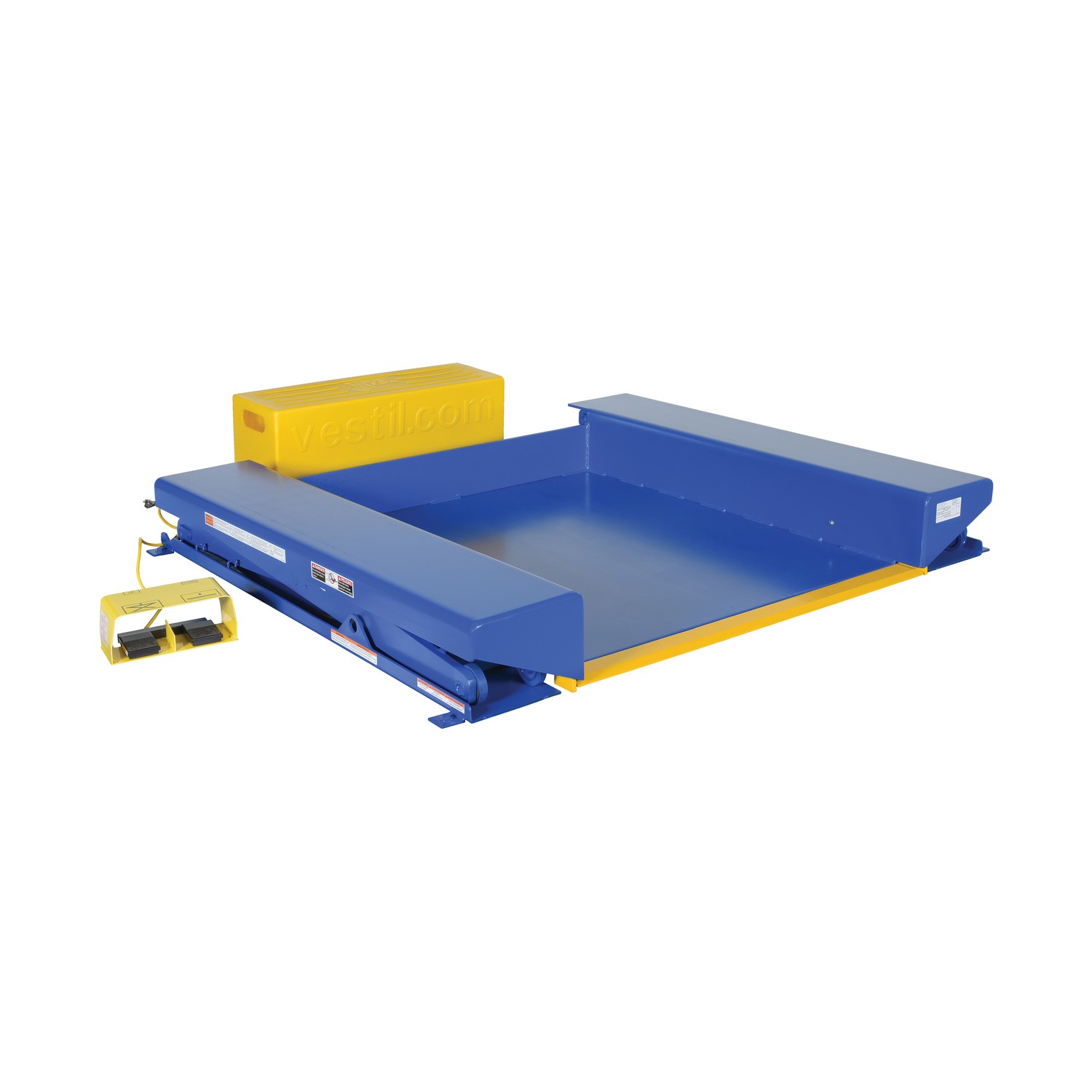

The Vestil Ground Lift Scissor Table is designed to move loads in environments where a forklift isn’t available. This 2,000 lb capacity table supports pallets on its platform and raises them to a working height, enabling ergonomic material handling and reducing bending and reaching. The unit features an entry-side electric toe guard to protect pinch points during lowering, a velocity fuse to help maintain platform height in case of hydraulic line failure, and a foot control for straightforward operation. A maintenance prop and an upper travel limit switch further contribute to safe, controlled lifting and extended motor life by preventing over-travel. The standard motor is completely enclosed, with a 460 V, 3-phase, 60 Hz electrical supply, and a 2 HP rating, reflecting a compact power package suitable for continuous lifting tasks in light to moderate volume operations.
Construction and layout emphasize a compact footprint with a blue steel platform measuring 44 inches wide by 51-1/2 inches long. The platform lowers to 1/2 inch and raises to 36 inches, providing a versatile height range for loading, staging, and ergonomic access. The remote power unit can be located up to eight feet away from the table, offering flexible installation and operator workflow around benches or machinery. Hydraulic components are rated at 3,000 psi, and the remote unit footprint is approximately 32-1/2 by 12 by 12-1/2 inches, helping to plan space and routing for hoses and power connections.
Common use scenarios include palletized load preparation and transfer between staging areas and workstations where forklifts are impractical or unavailable. When planning setup, consider the remote power unit’s reach and the need for clear access to the table’s entry side and lifting column. Maintenance should follow standard hydraulic lift practices: monitor for leaks, verify limit switches function correctly at top travel, and ensure venting and electrical connections meet local codes. This model’s 36-inch raised height accommodates typical dock-height workflows, while its 44 by 51-1/2 inch platform supports standard pallet dimensions for efficient handling.
Features:
- Pallets can be loaded onto the platform and raised to a working height
- Entry-side electric toe guard protects pinch points
- Includes velocity fuse to maintain platform height
- Remote power unit can be located up to eight feet away from the table
- 12-1/2 in remote power unit height and 32-1/2 in length provide flexible installation
- 3000 psi hydraulic component rating supports reliable operation
- Hydraulic system provides 40 seconds up, 13 seconds down lift times
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 2000
- Platform Width (in.):
- 44
- Platform Length (in.):
- 51-1/2
- Raised Height (in.):
- 36
- Platform Lowered Height (in.):
- 1/2
- Hydraulic Component Rating (psi):
- 3000
- Motor Horsepower:
- 2
- Hertz:
- 60
- Voltage:
- 460
- Phase:
- 3
- Remote Power Unit Length (in.):
- 32-1/2
- Remote Power Unit Width (in.):
- 12
- Remote Power Unit Height (in.):
- 12-1/2
- Lift Time - Up (seconds):
- 40
- Lift Time Down - (seconds):
- 13
- Package Size:
- Each
