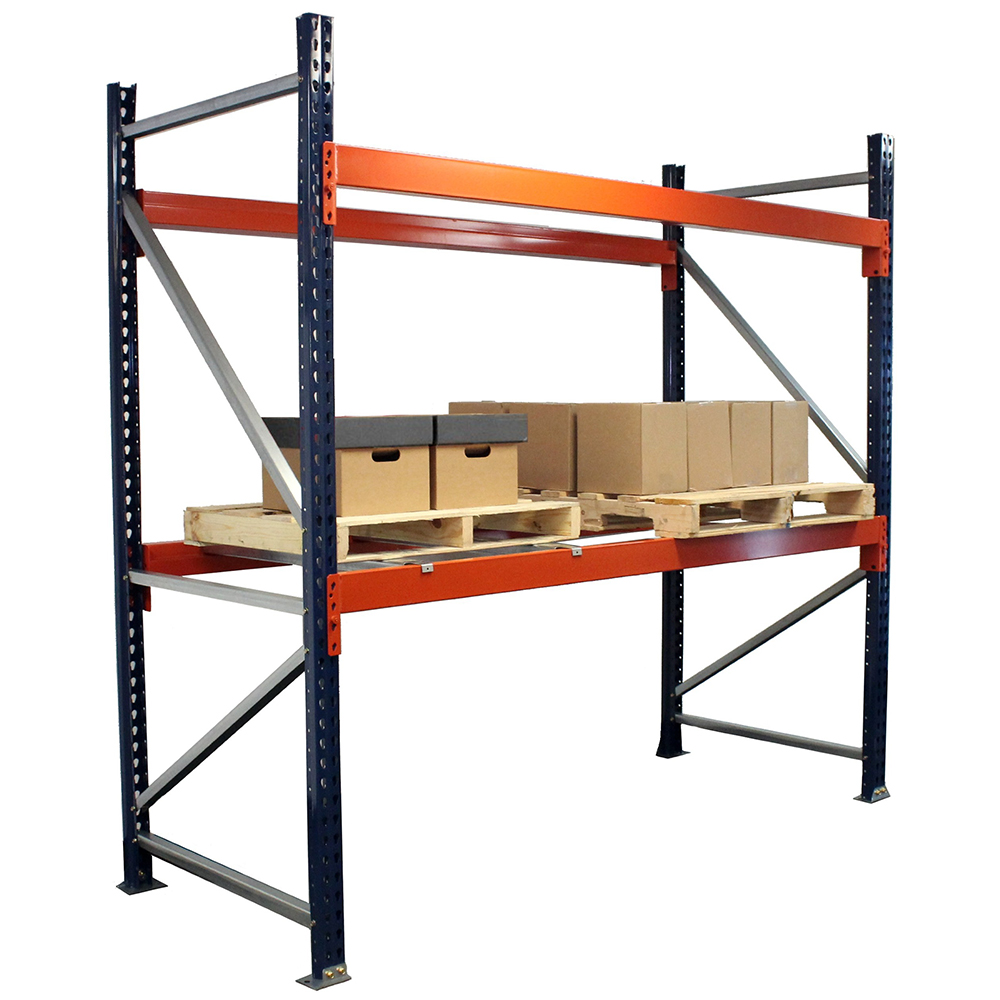

The Interlake Mecalux 314964840E96S bolted teardrop pallet rack starter brings flexible, high-capacity storage to warehouses handling a variety of product types. This blue/orange, two-upright starter unit includes two uprights and two pairs of shelf beams, designed for direct pallet access and straightforward stock management in demanding environments. The tear drop perforations on the upright columns allow shelf adjustments at 2-inch increments, enabling you to tailor the racking to evolving inventory while maintaining stable, easily adjustable storage configurations. The system’s finish combines a durable baked enamel coating with powder coating to resist the wear of daily warehouse use, and a cataphoresis-based paint process offers additional anti-corrosion protection for longer service life.

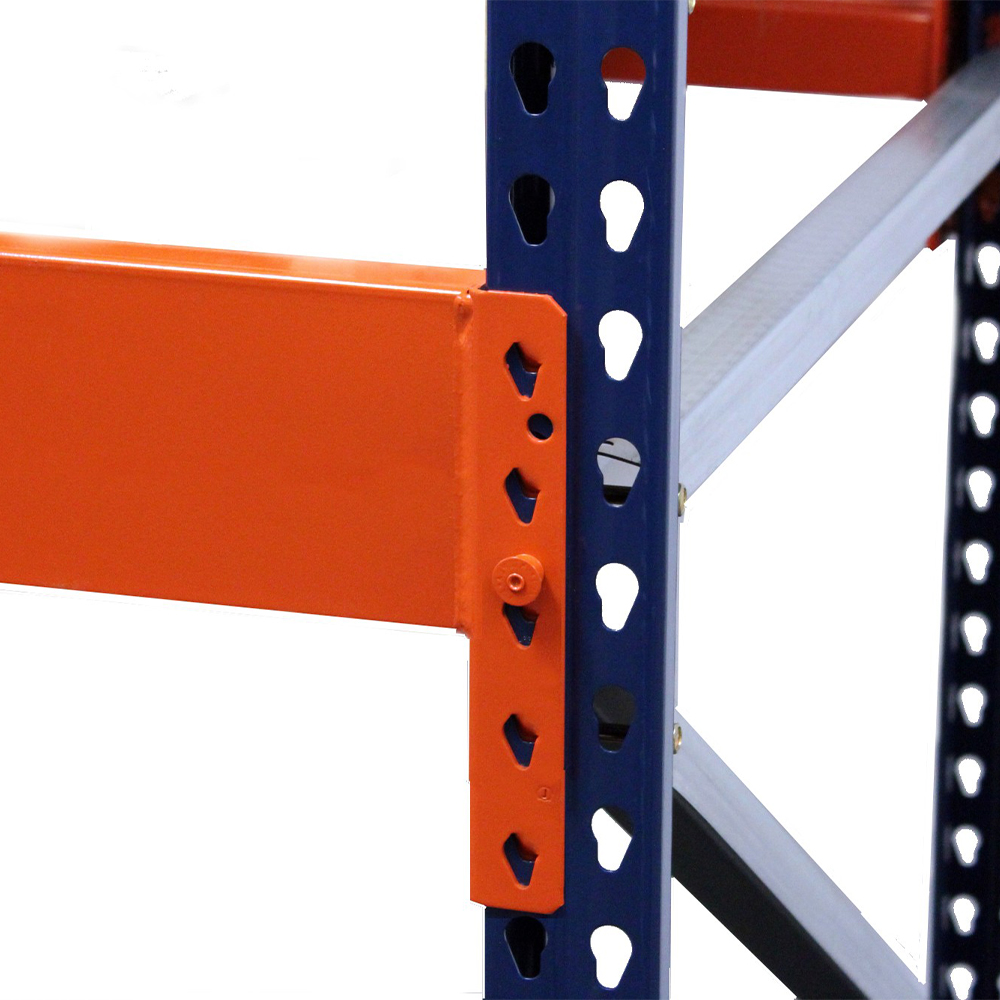

The orange beams feature a piston-lock connection that seats and locks automatically to the frame, helping prevent accidental beam disengagement and tampering. This design supports reliable, damage-resistant beam-to-frame coupling and accommodates 1-5/8 inch step accessories, such as wire decking, to fit your specific storage needs. The starter unit is manufactured from high-strength steel and is built for easy assembly, making it suitable for warehouses requiring rapid deployment or frequent reconfiguration. While the item is not stocked in the warehouse and availability can vary, this solution is certified for RMI standards when assembled per the manufacturer’s design, reinforcing its suitability for serious industrial storage applications.
This starter kit supports a wide range of storage configurations when paired with additional Interlake Mecalux racking (sold separately). It is designed for non-seismic areas and is intended to provide direct access to pallets, supporting efficient picking, replenishment, and inventory control in busy facilities. Packaged as a kit, it ships as a complete starter with two uprights and two pairs of beams, ready for on-site assembly and anchoring to a suitable foundation.
Features:
- Versatile starter unit with two uprights and two beam shelves
- High-strength steel construction with cataphoresis coating for corrosion protection
- Tear drop perforations allow 2" shelf adjustments
- Orange beams with piston lock to prevent displacement and tampering
- 1-5/8" beam step for wire decking and accessories
- RMI certified; non-seismic area use only
- Easy assembly and standard footplates for anchoring
- Depth:
- 48"
- Height:
- 96"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 96"
- Beam Height:
- 4.00"
- Shelf Capacity:
- 5,370 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
