Interlake Mecalux 3141204840E96S is a bolted teardrop pallet rack starter unit designed for flexible, high-capacity storage in demanding warehouses. This blue/orange system ships as a kit including two upright frames and two pairs of shelf beams, enabling direct pallet access and straightforward stock management. The tear-drop perforations on the uprights allow beam height adjustments in 2-inch increments, supporting a range of product sizes when paired with additional Interlake Mecalux components. The units are manufactured from high-strength steel and finished with a cataphoresis-based coating process, providing corrosion resistance and uniform protection against daily warehouse wear. The orange beams feature a piston lock connection that seats and locks automatically, helping prevent accidental beam disengagement and providing a tamper-resistant, secure rack assembly. The starter is rated for a substantial load, with shelf capacities and beam spacing designed to support diverse palletized goods in non-seismic applications, and it is RMI-certified to reflect industry-standard quality.
Important practical notes: this item is not stocked in our warehouse, so processing and transit times can vary, and expedited shipping availability may differ. If you need delivery by a specific date, contact us before ordering. Because the item is fulfilled from external inventory, cancellation or return terms may be limited once placed. The kit’s footprint is a 96" beam width by 48" depth and 120" high configuration, with a 3.00" x 2.71" column size as part of a wide-span, heavy-duty solution. As always, verify compatibility with your existing racking and ensure appropriate anchoring, assembly readiness, and local codes prior to installation.
Features:

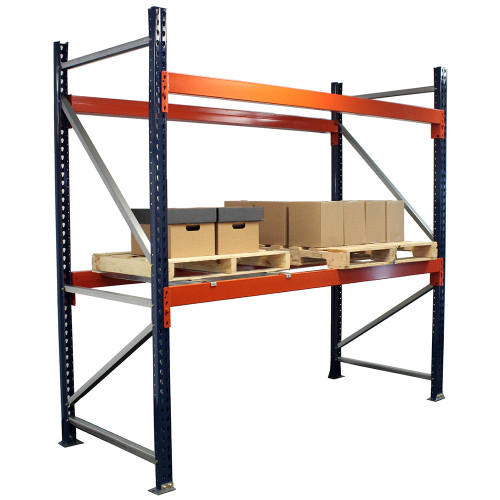

- Pre-configured two-upright Starter with two beam levels for versatile storage
- Tear drop uprights allow 2" shelf adjustments
- Cataphoresis coating provides corrosion resistance and durable finish

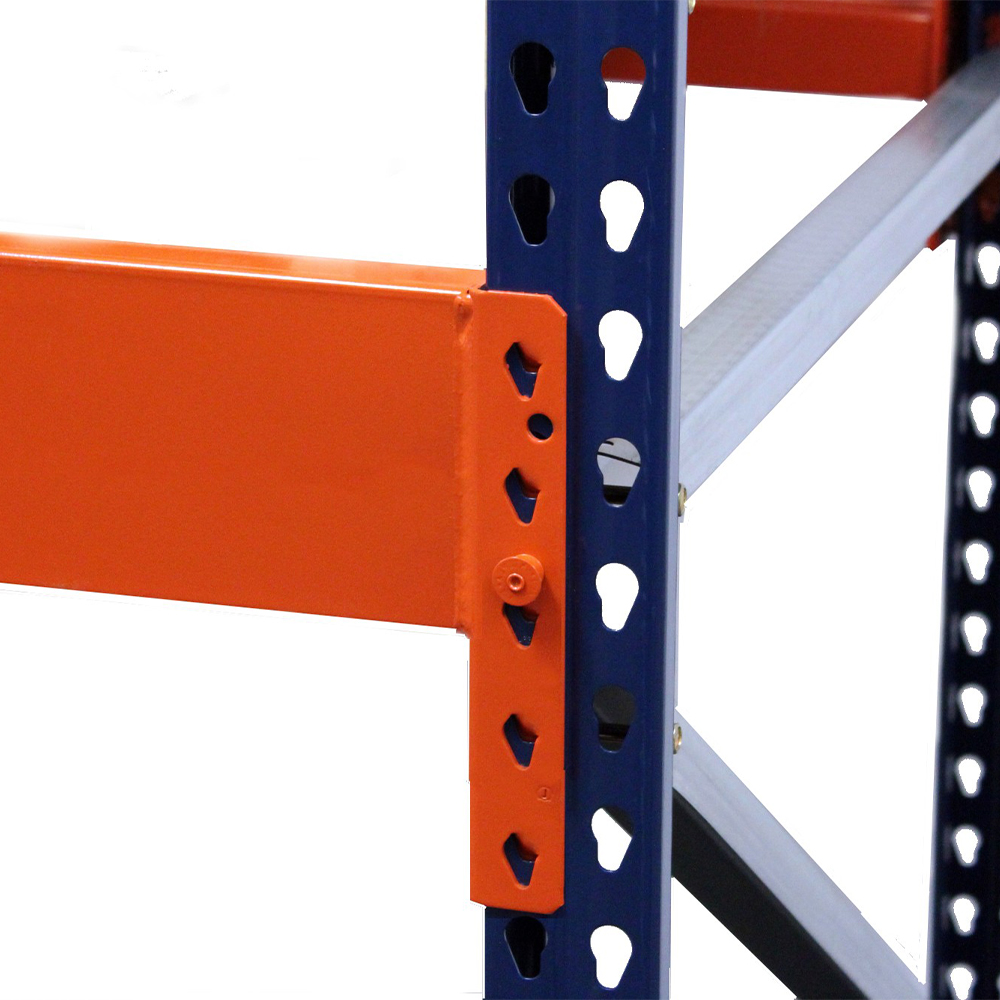

- Orange beams with piston lock for secure, automatic engagement
- 1-5/8" beam step supports wire decking and accessories
- Easy assembly and anchor-ready footplates
- RMI certified for quality and safety
- Depth:
- 48"
- Height:
- 120"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 96"
- Beam Height:
- 4.00"
- Shelf Capacity:
- 5,370 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
