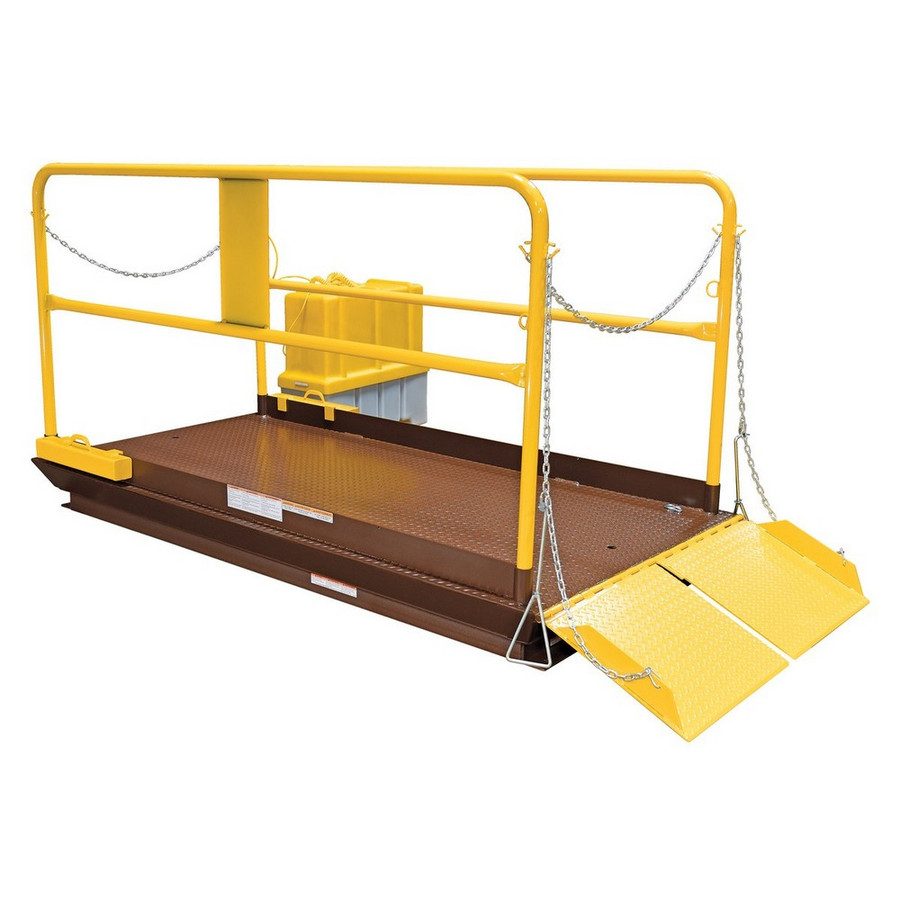

Vestil WL-100-8-710 Steel Premium Truck Scissor Dock Lift provides a practical solution for loading and unloading goods from semi-trailers where permanent loading docks aren’t available. The unit is designed to raise or lower to align with truck bed heights, creating a stable, elevated platform that facilitates safe material handling during every cycle. This model features a diamond plate deck crafted from heavy-gauge steel, delivering a durable, non-slip surface for workers and equipment. Safety-enhancing components include a safety-velocity fuse on the hydraulic cylinders and an upper travel limit switch that shuts power at the maximum raised height, helping to prevent overextension and potential hazards during operation. A 20-foot, push-button control cord connects to a pre-wired control box that houses a magnetic starter and overload relay, supporting straightforward, controlled use. High-visibility safety yellow removable handrails and fixed toe boards are included to further delineate the work area, while beveled toe-guards and electric toe-guards around the platform perimeter provide additional protective features to prevent accidental toe injuries.
This lift is configured to handle a uniform capacity of up to 8,000 lb, with an overall frame width of 62 inches, making it suitable for a variety of loading dock scenarios where truck trailers vary in width and bed height. The standard external motor arrangement is a 6.5 HP, 460V, 3-phase, 60 Hz power source that can be located up to 8 feet away from the lift, offering flexible installation options in industrial spaces. Weighing approximately 300 pounds, this unit is designed for relatively straightforward integration into existing material-handling workflows, with packaging noted as Each. When assessing suitability for your operation, consider dock height variation, the need for safe manual handling during lift cycles, and the physical footprint required to position the lift in your loading area.
Features:
- Unique design supports semi-trailers when loading dock access is unavailable
- Tread plate surface delivers a safe, non-slip grip
- Safety velocity fuses protect hydraulic cylinders
- Upper travel limit switch stops power at max height
- 8,000 lb uniform capacity for load handling
- Robust steel construction for reliable performance
- Uniform Capacity (lb.):
- 8000
- Overall Frame Width (in.):
- 62
- Package Size:
- Each
