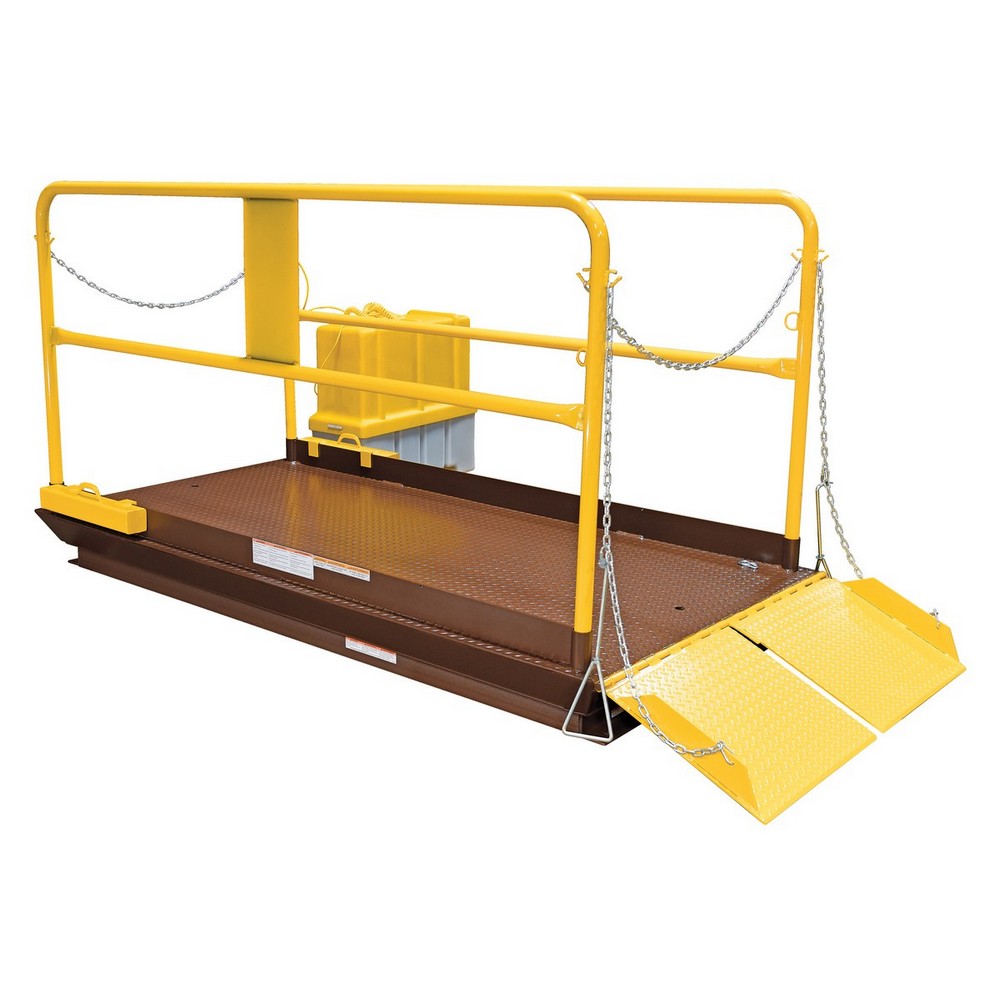

The Vestil WL-100-8-610 is a heavy-duty truck scissor dock lift designed to bridge the gap between a loading dock and a semi-trailer, enabling safer and more efficient loading and unloading when a permanent dock isn’t available. With an 8,000 lb capacity and a 6 ft by 10 ft platform, this unit supports standard palletized goods and other heavy loads from trailer heights, helping to streamline material handling in yards or sparsely docked facilities. The integrated hydraulic system uses safety velocity fuses to guard the cylinders against line breaks, and an upper travel limit switch stops power at the maximum raised height to prevent overextension. A 20-foot coil cord provides flexible, reachable control, and the pre-wired control box includes a magnetic starter and overload relay for straightforward installation and reliable operation. The platform surface is a diamond plate tread plate that offers enhanced grip to reduce slip hazards during lift and transfer operations. High-visibility safety features include removable yellow handrails with fixed toe boards and perimeter toe-guards, supporting safer egress and movement around the lift.
This model is built to be compatible with locations where a traditional loading dock is unavailable, providing a portable yet robust solution for loading into or out of high-sided trailers. The external 6.5 HP, 460V, 3-phase motor can be positioned up to 8 feet away from the lift, offering installation flexibility in constrained spaces. The unit comes in a 62-inch overall frame width and is supplied as an individual package. When planning use, consider ensuring adequate electrical supply and space to accommodate the lift’s footprint and passive safety clearances around the perimeter during operation.
Features:
- Unique design supports loading semi-trailers when dock access is unavailable
- Tread plate surface provides a safe non-slip grip
- Safety velocity fuses protect hydraulic cylinders
- Upper travel limit switch cuts power at max raised height
- 8,000 lb capacity for heavy-duty material handling
- Uniform Capacity (lb.):
- 8000
- Overall Frame Width (in.):
- 62
- Package Size:
- Each
