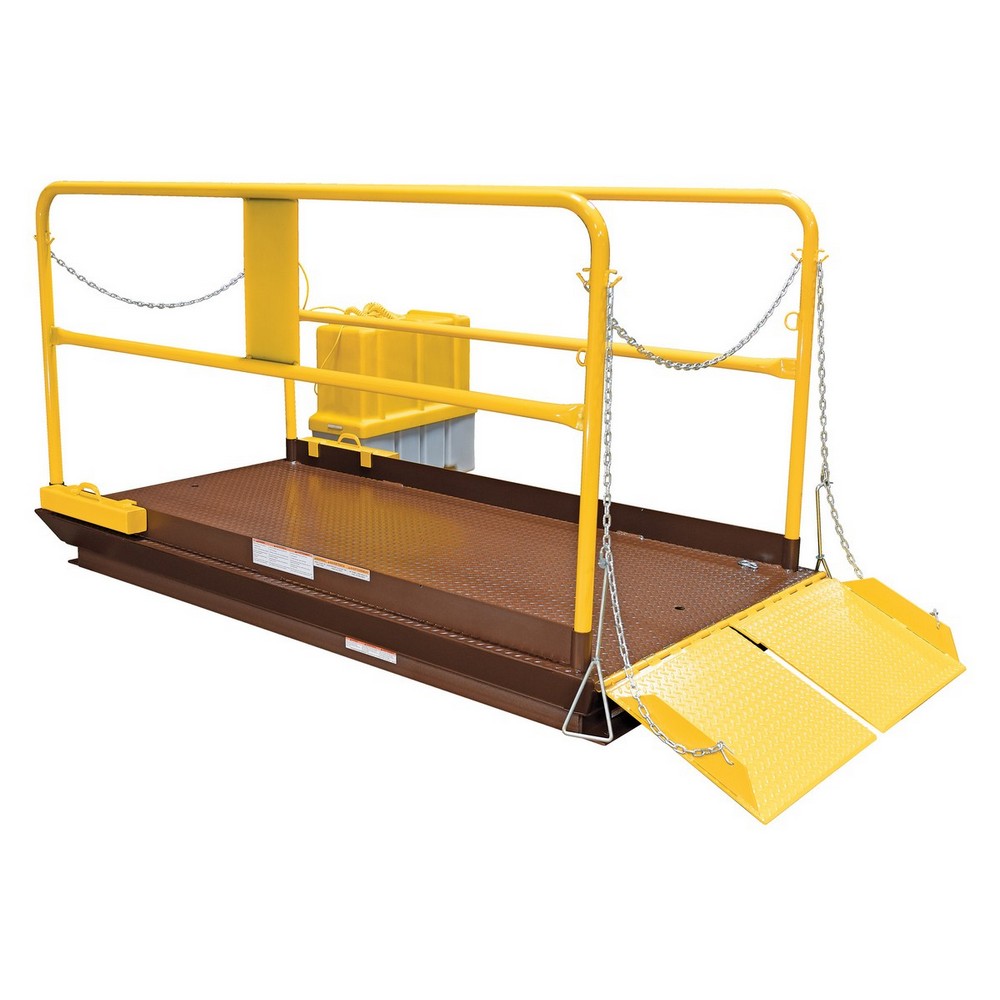

The Vestil WL-100-10-710 is a steel premium truck scissor lift designed to facilitate safe loading and unloading of goods from semi-trailers when a permanent loading dock isn’t available. The unit features a heavy-gauge diamond plate deck for durability and a non-slip surface, helping to reduce slips and maintain stable footing during transfers. Safety-focused components include a safety velocity fuse integrated with the hydraulic cylinders and an upper travel limit switch that cuts power when the platform reaches its maximum height, providing an automatic stop to prevent over-extension. The lift is controlled via a push-button pendant on a 20-foot cord and is pre-wired with a control box that includes a magnetic starter and overload relay, supporting straightforward electrical setup and reliable operation.
Designed for high-visibility work areas, the lift incorporates removable high-visibility yellow handrails with fixed toe boards and includes beveled toe-guards and electric toe-guards around the platform perimeter to help protect operators during use. The standard external motor is 6.5 HP, 460V, 3-phase, 60 Hz and can be located up to 8 feet from the lift, offering flexibility in machine placement within a loading bay or shop floor. With an overall frame width of 62 inches and a documented capacity of 10,000 lb, this unit is suitable for supporting heavy-duty material handling tasks where dock access is limited. The unit weight is noted at 300 pounds, reflecting its robust steel construction while remaining manageable for site installation and maintenance planning.
When planning use, consider ensuring proper electrical supply matching the 460V 3-phase configuration and providing adequate clearances around the lift for safe operation and maintenance. This model is packaged as a single unit. Its rugged construction and integrated safety features are well-suited for elevating palletized goods from trailers in distribution centers, warehouses, and manufacturing facilities where dock access may be intermittent or unavailable.
Features:
- Unique design services semi-trailers when loading dock is unavailable
- Tread plate surface provides a safe non-slip grip
- Safety velocity fuses protect the hydraulic cylinders
- Upper travel limit switch cuts power to unit when max raised height is reached
- Uniform capacity: 10,000 lb.
- Uniform Capacity (lb.):
- 10000
- Overall Frame Width (in.):
- 62
- Package Size:
- Each
