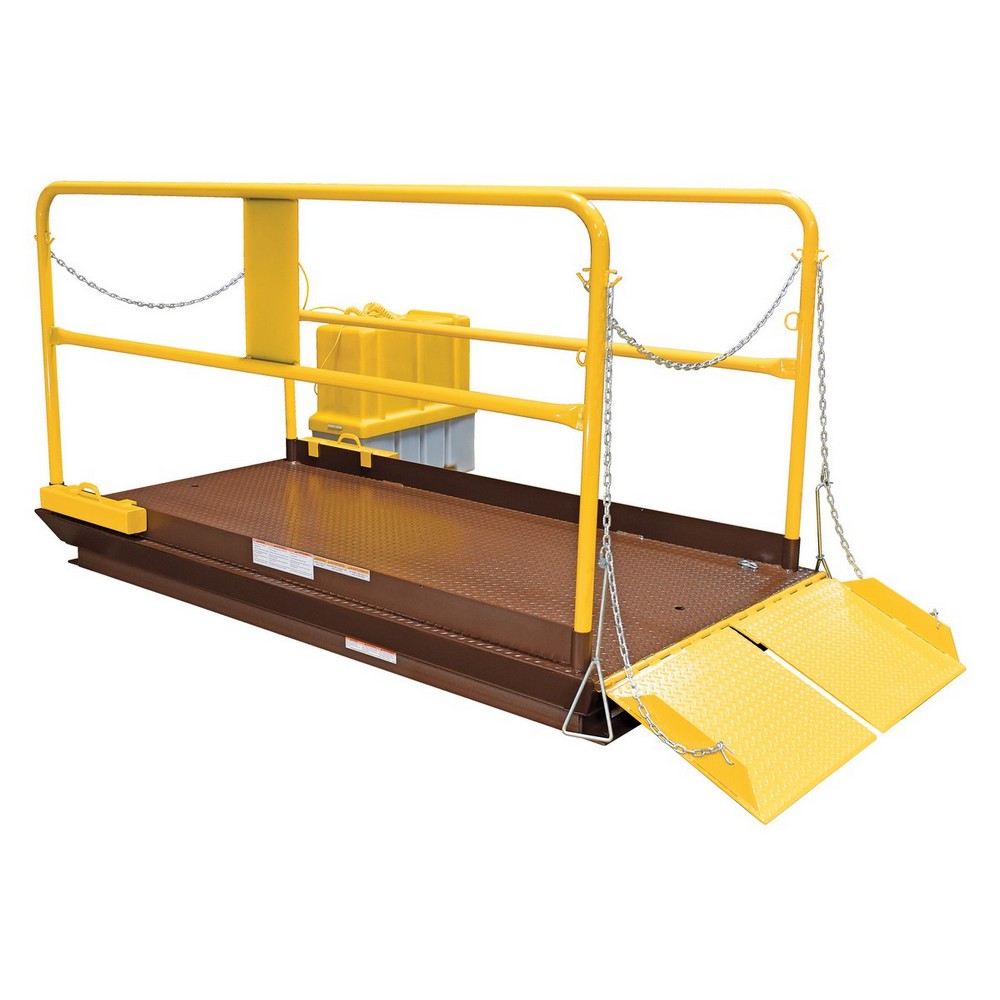

The Vestil WL-100-12-810 is a heavy-duty truck scissor dock lift designed to bridge the gap between a loading dock and a semi-trailer, enabling safer and more efficient loading and unloading when a permanent dock isn’t available. Built for industrial material handling, this unit features a diamond plate deck and a substantial steel frame to support high-capacity operations typical of freight handling environments. The lift is equipped with hydraulic cylinders that include a safety velocity fuse, which provides a fail-safe response if a hydraulic line were to rupture, helping to control free movement and protect workers during operation. An upper travel limit switch automatically cuts power when the platform reaches its maximum raised height, adding a layer of operational safety for frequent lifts at varying trailer heights.
The control system is wired for reliability, including a push-button remote on a 20-foot coil cord and a pre-wired control box with a magnetic starter and overload relay. Standard safety features include high-visibility, removable handrails with toe boards and perimeter toe-guards, along with electric toe-guards around the platform, helping to prevent accidental falls or contact with the lift components during use. The unit is designed for semi-trailer loading scenarios where a fixed dock is unavailable, offering a practical solution for facilities with irregular ramps or temporary loading stations. The 86-inch overall frame width provides a broad lifting footprint, while the platform capacity of 12,000 pounds supports common palletized and bulk loads encountered in warehousing and distribution operations.
Features:
- Supports 12,000 lb uniform capacity
- Tread plate surface provides non-slip grip
- Safety velocity fuses protect hydraulic cylinders
- Upper travel limit switch stops power at max height
- Designed to service semi-trailers when dock is unavailable
- Heavy-duty steel construction for reliability
- Uniform Capacity (lb.):
- 12000
- Overall Frame Width (in.):
- 86
- Package Size:
- Each
