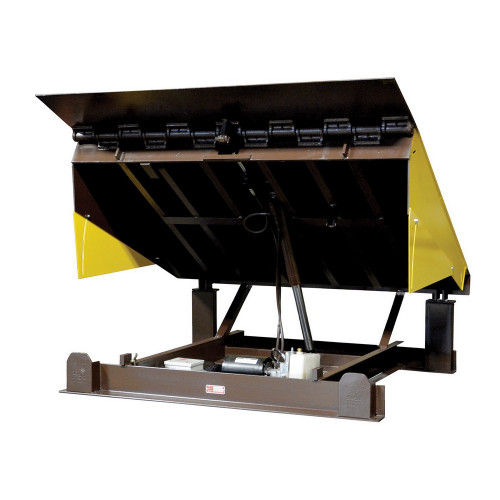

The Vestil EH-610-35 hydraulic dock leveler is designed for high-usage dock environments, offering a simple push-button operation to raise the deck. With the raise action, the deck elevates and the lip automatically extends, facilitating quick and secure loading and unloading from trailers. Once raised, releasing the raise control allows the deck to descend and sit on the trailer bed; when the trailer departs, a limit switch prompts the deck to return to the level cross-traffic position. A red emergency stop on the control box enhances operator safety during lift operations. The leveler includes telescopic steel toe guards on both sides flush with the platform edge for added protection and two laminated bumpers for impact resistance and performance in busy dock areas. The unit is configured for a standard 460V 3-phase electrical supply and is rated for 35,000 pounds uniform capacity, with a service range above the dock of 12 inches. The model advances dock efficiency with a straightforward cycle that supports frequent, heavy material transfers.
Features:
- Hydraulic design with push button operation
- Automatic lip extension on deck raise for easy loading
- Red emergency stop on control box for safety
- Telescopic steel toe guards on both sides
- High-capacity 35,000 lb uniform capacity
- Dimensions: 74" W x 110" L x 24" D
- Uniform Capacity (lb.):
- 35,000
- Service Range Above Dock (in.):
- 12
- Package Size:
- Each
