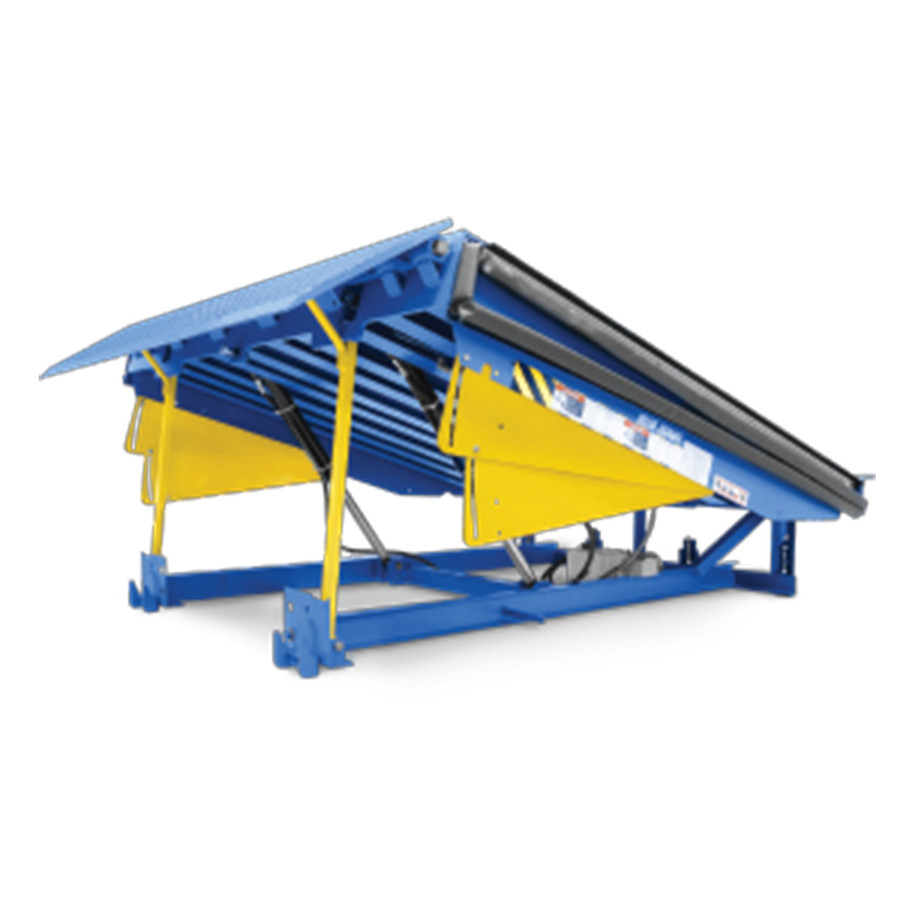

The Blue Giant HU7010-45 hydraulic dock leveler provides robust, programmable dock access for heavy-duty material handling. Designed for high-frequency loading environments, this 7' x 10' unit delivers a static capacity of 45,000 lbs, enabling safe and efficient transfers from truckbeds to dock elevations. The system is activated by a simple push-button control, with a single SP1 station that raises an independent hydraulic leveler via a constant-pressure UP command. A NEMA4X/IP65 rated control enclosure protects the operating controls in harsh dock conditions, while the self-contained 1 HP power pack mounted under the deck powers quiet, reliable hydraulic operation.
Construction emphasizes rigidity and durability: the deck employs high-tensile steel and is supported by a minimum of six high-tensile solid steel U-beam members, paired with precision-machined components to resist wear. The lip extends 16
Features:
- Increased Safety at the Loading Dock
- Ergonomic Hydraulic Operation
- Fixed rear hinge with 4" lateral ramp flex for non-level trailers
- Working range: 12" above and 12" below dock level
- High-tensile steel deck & lip
- 16" long beveled lip (tapered on 7' wide models)
- Independent SP1 control station with constant pressure UP operation
- NEMA4X/IP65 rated control station
- Self-contained under-deck TENV 1 HP power pack
- Two DB411 laminated bumpers for 7' wide models
- V-grooved maintenance strut and safety toe guards
- Nominal Deck Size:
- 7' X 10'
- Static Capacity:
- 45000 lbs
- Package Size:
- Each
