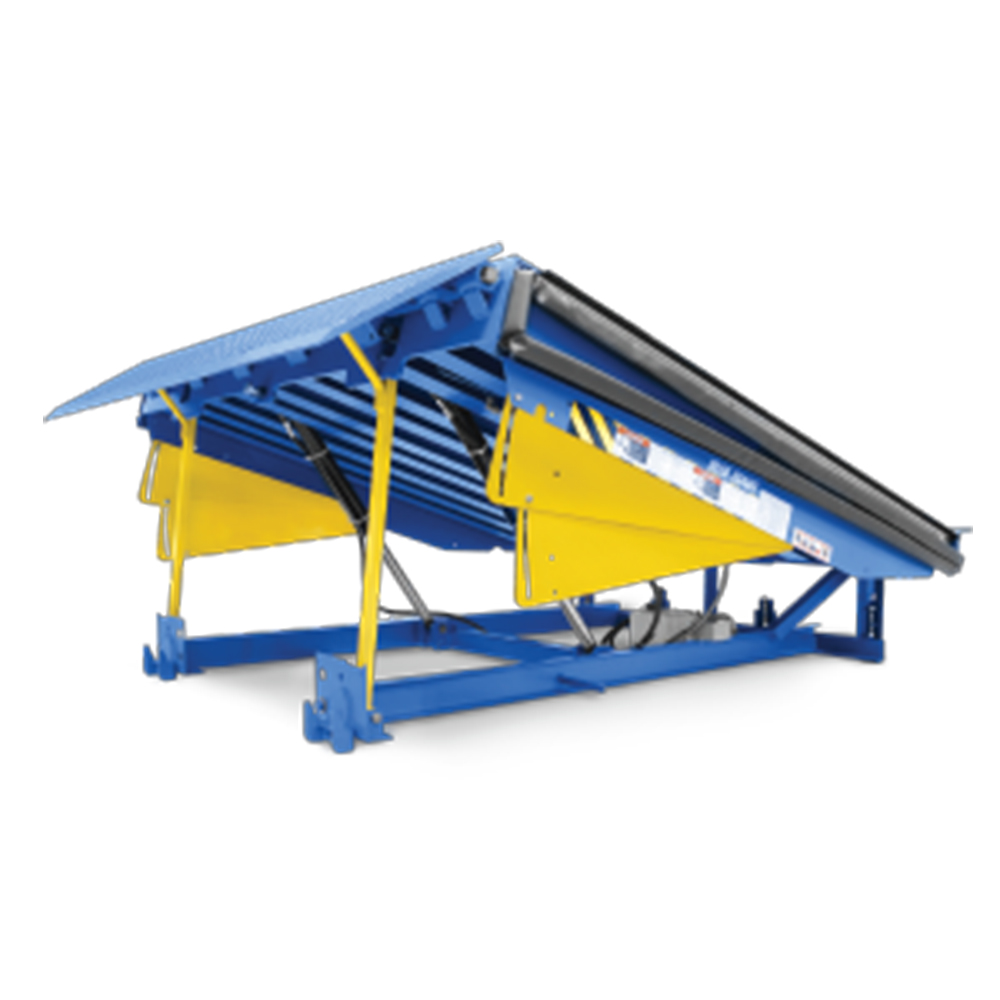

Blue Giant HU7010-30 Hydraulic Dock Leveler provides reliable, button-activated operation for dock handling with a 30,000-lb static capacity and a 7' x 10' nominal deck. This model employs a self-contained hydraulics system housed under the deck, delivering consistent lifting and lowering through a single push-button control station. The unit uses a fixed rear hinge with a 4-inch lateral ramp flex to accommodate minor misalignment between trailer bed and dock, helping maintain smooth transitions during loading and unloading. The deck and lip are constructed from high-tensile steel, and the 16-inch lip is tapered on 7' wide models to improve pedestrian clearance and vehicle access over the edge of the leveler.
Construction emphasizes structural robustness and longevity. The leveler features strategically welded J-beams for enhanced stiffness and a minimum of six high-tensile solid steel U-beam members supporting the deck, along with an inverted hydraulic deck cylinder that self-purges air to promote reliable operation. A velocity fuse provides fall-safe behavior, and full-width toe guards are finished in safety yellow to improve visibility for workers. The control station (model SP1) is rated for NEMA 4X/IP65 protection, ensuring reliable performance in damp environments and on outdoor docks.
Typical applications include loading docks where heavy palletized goods, large machinery, or industrial components are moved between trailers and the facility. The unit is designed for a 7' width and 10' dock opening, with the option for independent lip control using the Blue Genius touch panel (not included). When evaluating this model, consider precise dock height, electrical supply (the unit uses a self-contained 1 HP power pack; voltage varies by installation), and space for maintenance access under the deck. The model ships as a single unit and includes the standard bumpers appropriate for 7' wide configurations.
Features:
- Increased Safety at the Loading Dock
- Ergonomic Hydraulic Operation
- Fixed rear hinge with lateral ramp flex for non-level trailer beds
- Working range 12" above and 12" below dock level
- High-tensile steel deck with 16" lip (lip tapers on 7' wide models)
- Self-contained 1 HP power pack under deck
- Single push button control station (SP1) with NEMA4X/IP65 rating
- Nominal Deck Size:
- 7' X 10'
- Static Capacity:
- 30000 lbs
- Package Size:
- Each
